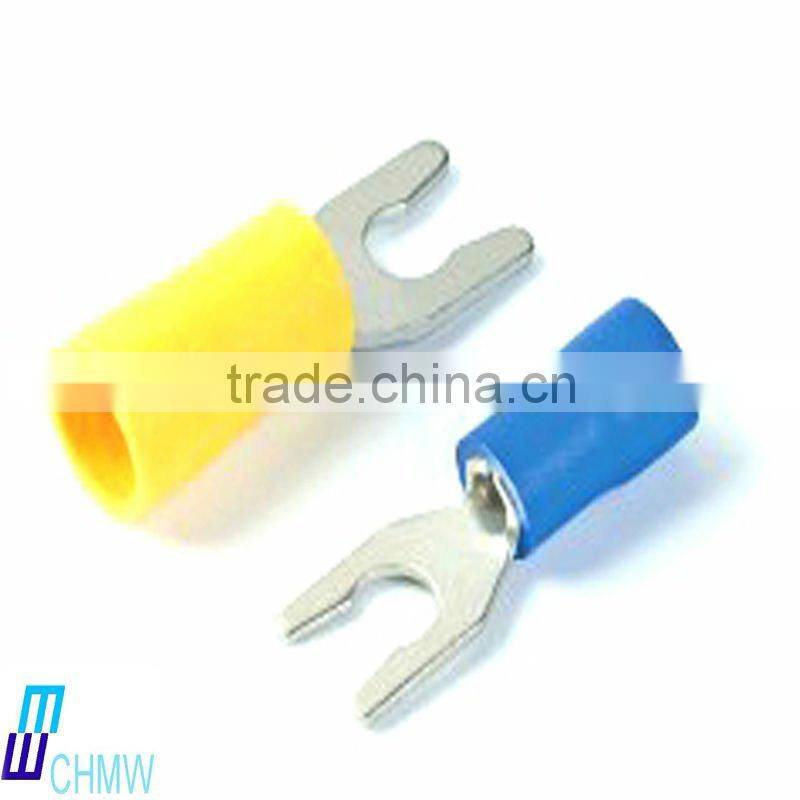

Insulated Locking Spade Terminals LSV Series
US$ 0.005 - 0.1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MWAN
Model Number:
LSV1.25-3.5
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Connectors TerminalsUS$ 0.001 - 0.05MOQ: 2000 Pieces -
Insulated Female Disconnects FDD 1.25-187US$ 0.005 - 0.1MOQ: 1000 Pieces
-
Insulated Male Disconnects MDD 1.25-187US$ 0.005 - 0.1MOQ: 1000 Pieces
-
Full Insulated Middle Terminal BV1.25US$ 0.005 - 0.1MOQ: 1000 Pieces
-
Vinyl Insulated Hook TerminalsUS$ 0.005 - 0.1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
MWAN
Model Number
LSV1.25-3.5
Type
Spade Terminal
Specifications
1.Insulated locking spade terminals with 8 years2.ROHS & ISO9001
3.Excellent quality,Reasonable price
4.fast delivery

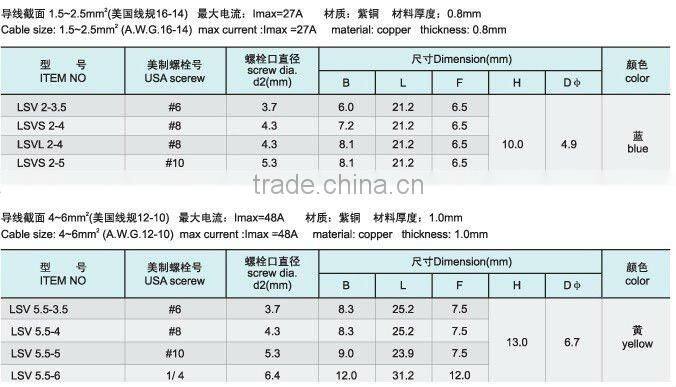

Cable size:0.5-1.5mm²(22-16AWG) max current:Imax=19A;Material copper Thickness:0.75mm

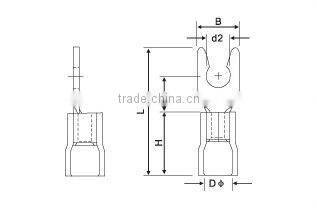

| Item NO. | USA scerew | screw dia d2(mm) | Dimension(mm) | Colour | ||||
| B | L | F | H | ΦD | ||||
| LSV 1.25-3.5 | #6 | 3.7 | 6.4 | 21.2 | 6.5 | 10 | 4.3 | Red |
| LSVS 1.25-4 | #8 | 4.3 | 7.2 | 21.2 | 6.5 | |||
| LSVL 1.25-4 | #8 | 4.3 | 8.1 | 21.2 | 6.5 | |||
| LSVS 1.25-5 | #10 | 5.3 | 8.1 | 21.2 | 6.5 | |||
| LSVL 1.25-5 | #10 | 5.3 | 9.5 | 21.2 | 6.5 | |||
We also can supply high quality terminal connectors,plug terminals,such as:
a.insulated ring terminal
b.Non-insulated ring terminal
c.Insulated spade terminals
d.Non-insulated spade terminals
e.Terminal insulation
f.Insulated female disconnects
g.Shoulder shaped male and female joints
h.Insulated female disconnects
i.Insulated flange spade terminals
j.Insulated locking spade terminals
k.Hook terminals
l.Flag shape female insulated joints and so on.
Welcome to contact with us for any questions and inquies!
