Home > Electrical & Electronics > Connector & Terminals > Terminals > Wire Screw Terminal Connector KV381-3.5/3.81

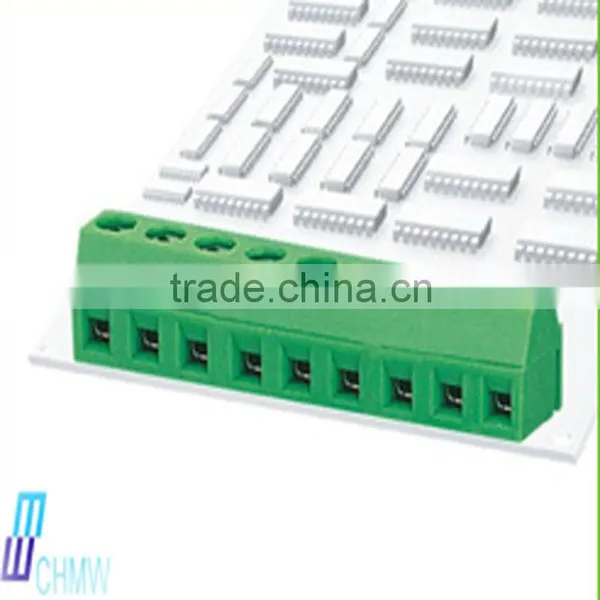

Wire Screw Terminal Connector KV381-3.5/3.81
US$ 0.001 - 0.1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MWAN
Model Number:
KV300R-5.0
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PCB Screw Terminal Blocks KV127-5.0/5.08US$ 0.05 - 0.1MOQ: 1000 Pieces -
PCB Screw Terminal KV300R-5.0US$ 0.001 - 0.1MOQ: 1000 Pieces
-
Brass PCB Screw Terminal KV635-6.35US$ 0.001 - 0.1MOQ: 1000 Pieces
-
Flag Terminal Soft SleeveUS$ 0.002 - 0.008MOQ: 6000 Pieces
-
Flag Terminal Connector SleeveUS$ 0.002 - 0.008MOQ: 6000 Pieces
Place of Origin
Zhejiang, China
Brand Name
MWAN
Model Number
KV300R-5.0
Type
Screw Terminal
Specifications

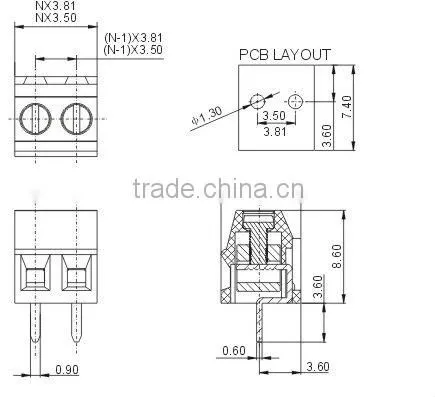

1.wire screw terminal connector KV381-3.5/3.812.ISO9001 & ROSH
3.With 9years produce experience
4.100% test before delivery
| Type:KV300R-5.0 | ||
| Reference standard | UL | IEC |
| Rated voltage | 150,300V | 130V |
| Rated Current | 10A | 10A |
| Wire Range | 26-16AWG | 1.0mm² |
| Withstanding Voltage | AC1250V/1Min | |
| Twisting momnet | 0.2Nm (1.7Lb-In.) | |
| Ambient temperature | -40-105 degree | |
| Strip length | 5mm | |
| Spacing | 3.5mm,3.81mm | |
| Number of poles | 2P,3P-24P | |
| Material and plating | ||
| Plastic parts | PBT, UL94V-0 | |
| Screws | M3, steel, Cr 3 + passivation color zinc plated | |
| Solder pin | Phosphor bronze , tin-plated | |
| Square Box | Brass, nickel-plated | |
Our advantage
1.All kinds of products are ROHS,REACH,CE
2.We are glad to make samples according to your drawings and specifications.
3.The connectors could be MOLEX,JST,AMP,KET,YH or others suppliers according client's requirements.
4.Used in the most of home appliances,computer,PCB,Auto,Microwave oven,Washing machine ect.
5.We mainly produce all kinds of Terminal $ Housing connector,Wiring Harness,Soft Sleeve ect
6.Available for ODM/OEM order
7.Please contact us so we can offer you the best quality,competitive price and timely delivery
