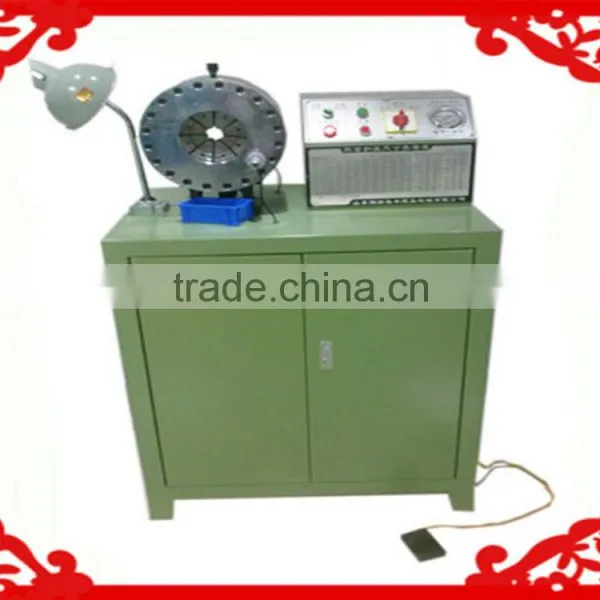

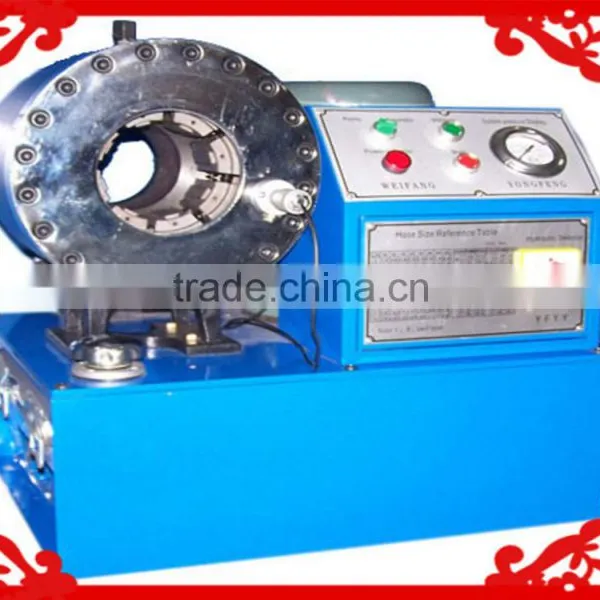

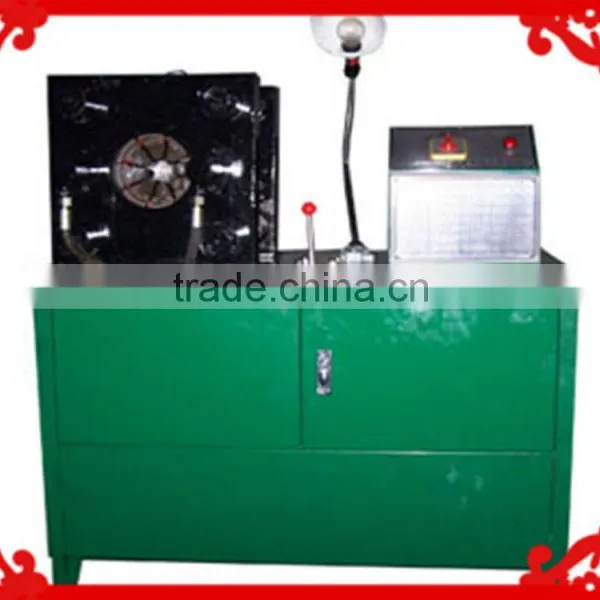

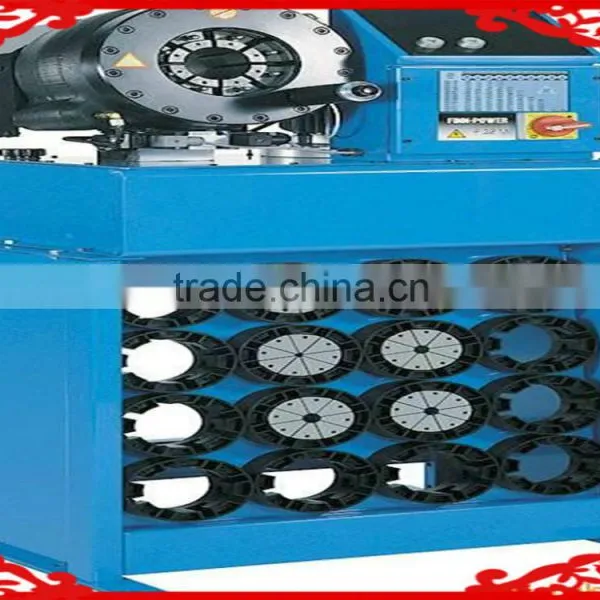

PSF-51C (1/4"~2")High pressure hydraulic hose crimping machine price

Factory production with CE certificates! QTD automatic crimping machine best sales (6-51mm) made in China!

1.The profile of automatic crimping machine 51C:

Hydraulic hose crimping machine( Also can be called rubber tubes locking machine, rubber tubes pressing machine, rubber tubes crimping machine,high pressure hose crimping machine, tube locking machine,  and so on.) is kinds of machines which can be used to lock and press the tubes assembly. It can force contractility through the moulds to press and crimp the metal joints on the matching rubber tubes firmly. Hydraulic hose crimping machine can press and lock lots of kinds of tubes, such as high-low pressure tubes, gas tubes, water tubes, air-condition tubes, corrugated pipes and also with cable joints, so they are widely used on cars, construction machinery, household appliances and welding and cutting equipment industries. Now the market requires much higher quality of the rubber tubes locking machine, to meet the needs we design and produce more than 10 kinds of types of rubber tubes locking machine, and they are all high precision and high efficiency to press and crimp elbow, flange, tubes with varies kinds of sizes, diameter, or layers of steel wires.

2.The features of automatic crimping machine 51C:

1 import components, low noise long life. 2 the quantity expansion, suitable for different elbow Crimp; 3 has mistakenly put mold protection device; 4 the whole disassembling mold, fast and convenient

3.Regulating the scale of automatic crimping machine 51C:

The scale is used for regulating the amount of the buckling. When it is regulated clockwise, the buckling amount will decrease, when it is regulated anticlockwise, the buckling amount will increase. The scale is connected together with oil cylinder end cover through three socket head screws and three springs on the scale base. When using a hand to pull the scale (vertical to the oil cylinder end cover direction), the scale can flexibly leave from the oil cylinder end cover. When releasing the scale, the scale will be recovered relying on spring force. Before the machine is turned on, inspect carefully if the scale telescoping is flexible and if the lead connection is reliable.
