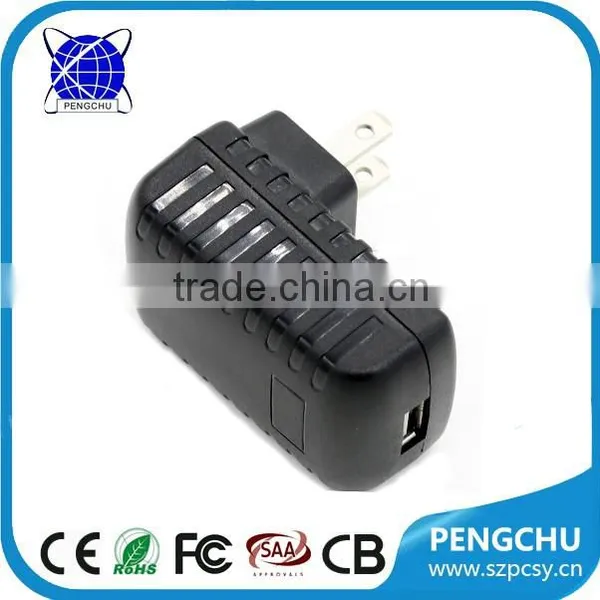

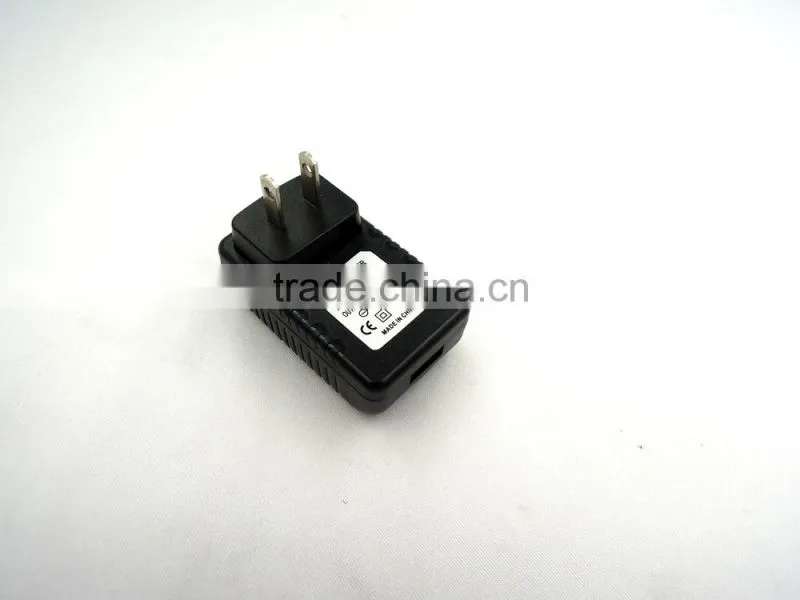

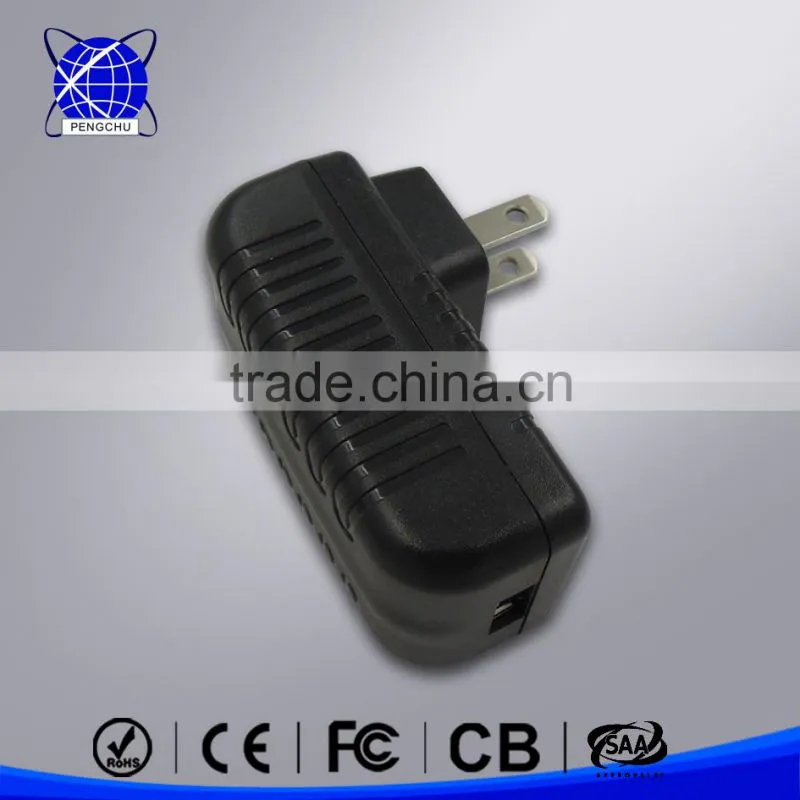

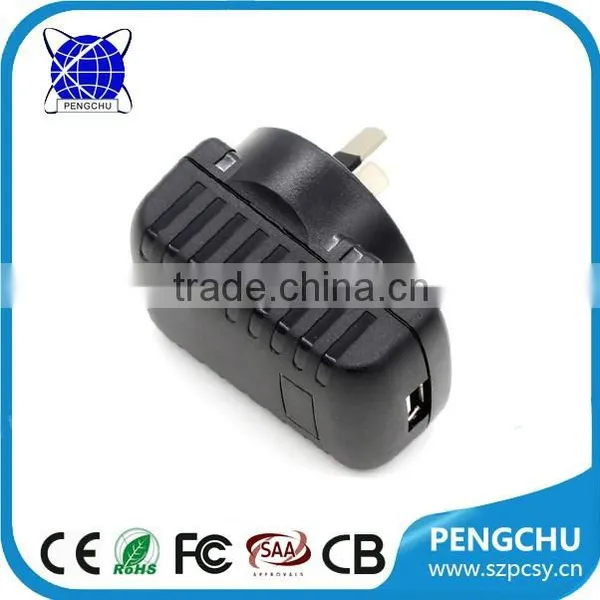

12.5w 5v 2.5a Usb Wall Charger With UK US EU AU Plug

Name: 12.5w 5v 2.5a Usb Wall Charger With UK US EU AU Plug
Brand: PENGCHU
SKU: 121421853

US$ 2.2 - 3.5 MOQ: 100 Pieces

Key Specifications

Brand Name:

PENGCHU

Model Number:

PC-050025

Use:

Other, Camera,mobile phone,tablet,dvd player,tv box

Shenzhen Pengchu Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name PENGCHU

Model Number PC-050025

Use Other, Camera,mobile phone,tablet,dvd player,tv box

Type Electric

Place of Origin Guangdong, China

12.5w 5v 2.5a usb wall charger with UK US EU plug

What is key festures ?

AC Input 100-240vac 50/60hz
DC Output 5v 2.5a
CE FCC ROHS SAA C-TICK
Efficiency >85%
US Plug
Protection: Over current protection,Over voltage protection, Short circuit protection,Over temperature protection

Product Parameter

Model name	Travel plug adapter 12.5w 5v 2.5a usb charger
Material	ABS
Input Characteristic
Input	100Vac to 240Vac,50/60Hz
Efficiency	85% (Min.) at 220VAC/50Hz input with full load
Output Characteristic
Output	5v 2.5a
Output Voltage (unload)	5.15VDC(min) 5.35VDC(max) Tolerance:±5%
Output Voltage (Full Load)	4.65VDC(min) 4.95VDC(max) Tolerance:±5%
Accessories
Input plug	USA Plug
Output connector	USB Port
Qualification
Warranty	1 year
Certification	CE-EMC, CE-LVD, FCC, ROHS ,SAA C-TICK
Aging test	100% full-load aging test
Environmental Conditions
Operating Temperature	-20-65 ℃
Relative Humidity	5%~90%
Storage Temperature	-20℃~80℃

Product showroom

Other wall charger is optional

output voltage	output Current	Output Connector (internal Diameter)	output connector (external Diameter)	Remark
12V	1500mA	2.5mm	5.5mm	Wall mounted(EU plug,USA plug,UK plug)
12V	1000mA	2.5mm	5.5mm	Wall mounted(EU plug,USA plug,UK plug)
12V	2000mA	2.5mm	5.5mm	Wall mounted (EU plug,USA plug,UKplug)
7.5V	1000mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
7.5V	2000mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
5V	2000mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
5V	3000mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
5V	3500mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
9V	2000mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
9V	1000mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
9V	1500mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
6V	1000mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
6V	2000mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
6V	3000mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
3V	3300mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
7V	1500mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
24V	500mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
15V	1500mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
18V	1000mA	2.5mm	5.5mm	wallmounted(EU plug,USA plug,UKplug)
