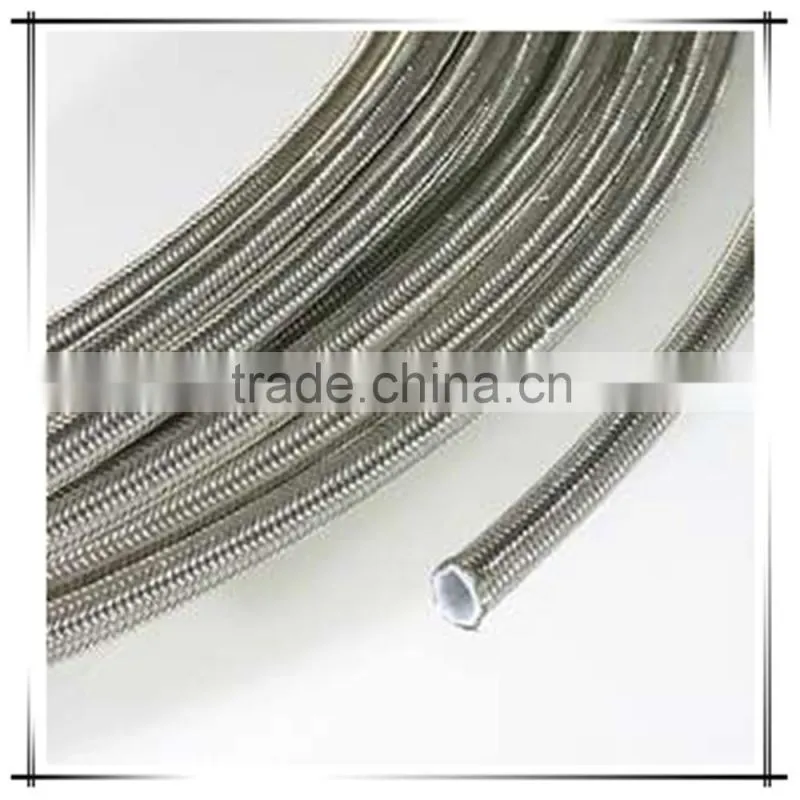

Help CenterExcellent Corrosion Resistance Ptfe Hose/teflon Tube/tubing/ptfe Tube
Related Products
-
High Pressure 1 Meter Stainless Steel Braided Teflon PTFE Fuel Oil HoseUS$ 15 - 15MOQ: 1000 Meters -
PTFE Teflon Hose Braided With Stainless SteelUS$ 15 - 15MOQ: 2000 Meters
-
Colored Stainless Steel Braided Teflon Hose for Car WashUS$ 14 - 14MOQ: 3000 Meters
-
High Pressure and Temperarure Stainless Steel Braided Teflon Hose ManufacturerUS$ 15 - 15MOQ: 20000 Meters
-
Competitive Price High Excellent Quality PTFE Teflon Stainless Steel HoseUS$ 15 - 15MOQ: 4000 Meters
The extruded PTFE tube has excellent flex life, high temperature tolerance and superior chemical resistance.
QCSS PTFE hose working temperature range is -70 to 260 degree. A reinforcement 304/316 stainless steel
wire cover adds strength and durability to withstand high working pressures and harsh environments.
Burst pressure reaches to 12,000 psi.
Production under ISO 9001:2008 and CE control. High quality product and customer's
satisfaction is our pursuit. Good faith cooperation. Bright future.
Please check our promotion product: PTFE teflon hose braided with stainless steel
PTFE flexible hose specification:
| Item | Size | Inner Dia. | PTFE hose thickness (mm) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Bending Radius (mm) |
| 1 | 3/16" | 5 | 1 | 206 | 3000 | 827 | 12000 | 36 |
| 2 | 1/4" | 6 | 1 | 175 | 2537 | 700 | 10150 | 45 |
| 3 | 5/16" | 8 | 1 | 150 | 2175 | 600 | 8700 | 50 |
| 4 | 3/8" | 10 | 1 | 135 | 1957 | 540 | 7830 | 55 |
| 5 | 1/2" | 13 | 1 | 120 | 1740 | 480 | 6960 | 70 |
| 6 | 5/8" | 16 | 1.5 | 100 | 1450 | 400 | 5800 | 130 |
| 7 | 3/4" | 19 | 1.5 | 90 | 1305 | 360 | 5220 | 190 |
| 8 | 1" | 25 | 1.5 | 65 | 942 | 260 | 3770 | 270 |
Product: |
PTFE teflon hose braided with stainless steel |
Size: |
3/16" --- 1". |
Fitting Material: |
304, 316, 316L.Carbon steel zinc plated. |
Hose Material: |
PTFE/TEFLON, FEP. |
Thickness: |
0.76mm --- 1.5mm. |
Working pressure: |
Max. 6,000 psi. |
Burst pressure: |
Max. 12,000 psi. |
Temperature: |
-70 to 260 °C |
Thread: |
BSP, JIC, SAE, UNF, METRIC, NPT, BSPPT, DIN2999...etc. |
Connection: |
Male / Female. |
Length: |
100mm – 10,000mm or as per customer’s request. |
Certificate: |
ISO 9001:2008, CE. |
Capacity: |
150,000 Meters/Month. |
Package: |
Label with necessary information on products, Packaged in plastic bags, Plastic bags in carton boxes, Carbon boxes in wooden pallets or as per customers' request. |
Note: |
Standard or Non-standard as per sample or drawing are all available. |
