Hydraulic Hose DIN EN 856 4SP
ISO9001:2008
Catelogue Is Available

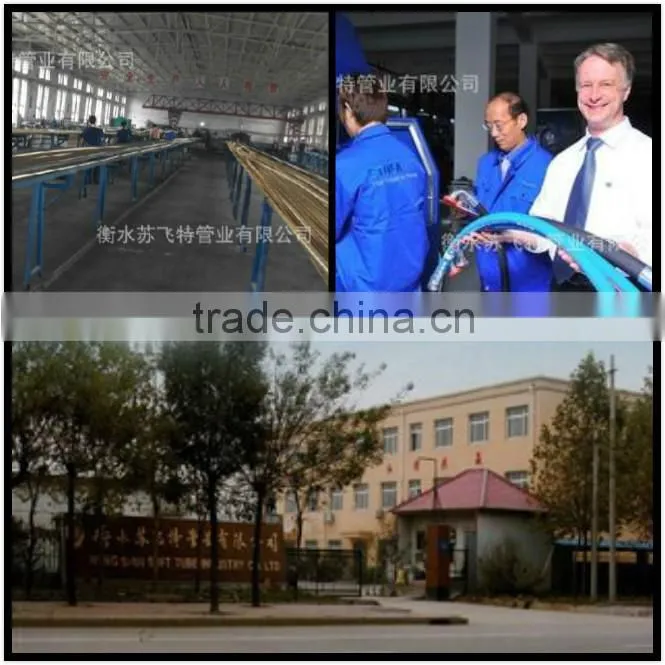

Hengshui Soft ture industry CO.,LTD is located in Hebei province Hengshui city Yongan Industrial Park. The company is specialized in the development of high pressure steel wire reinforced rubber hose and assembly. The main product include: High Pressure Steel Wire Braided Rubber Hose, Super High Pressure Steel Wire Spiral Rubber Hose, The Flame Retardant and Antistatic Hose, Folder Cloth Hose, Engineering Machinery Hydraulic Hose, Temperature and Cold Resistant Rubber Hose, Gas Drainage Hose, Marine High Pressure Oil Tube, Oil Drilling Hose, various specifications of Stainless Steel Bellows, Metal Hose, PTFE Pipe.
With the advanced technology both at home and abroad,our company has prodcuced many kinds of products widely used in metallurgy,oil drilling,engineering machines,mining,various hydraulic machines and ect..In these years ,with the expansion of our business,our products are well received by our customers,have been sold all over our country,and exported to overseas.
Customers' satisfaction is our pursuit
Excellent service is our permanent promise
Advanced equipment is the guarantee of top-class quality

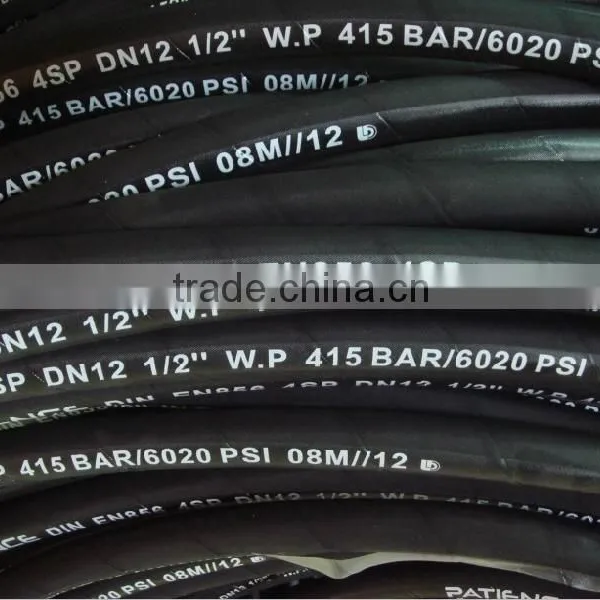

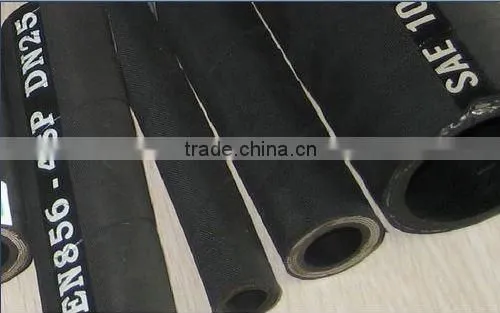

Name: Steel Wired Spiral Hydraulic Hose
Model: DIN EN 856 4SP
Construction
Inner tube: Oil resistant synthetic rubber .
Reinforcement: Four high tensile steel wire spiral layers (4W/S) .
Outter cover: Abrasion and weather resistant synthetic rubber .
Temperature range: -40℃ ~100℃
Hydraulic High Pressure Hose DIN EN 856 4SP data :
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 10 | 3/8 | 9.5 | 17.5 | 21.4 | 44.5 | 6450 | 180.0 | 26000 | 180 | 0.78 | 20—50 |
| 13 | 1/2 | 12.7 | 20.2 | 24.0 | 41.5 | 6000 | 166.0 | 24000 | 230 | 0.89 | 20—50 |
| 16 | 5/8 | 15.9 | 23.8 | 28.2 | 35.0 | 5000 | 140.0 | 20000 | 250 | 1.11 | 20—50 |
| 19 | 3/4 | 19.0 | 28.2 | 32.2 | 35.0 | 5000 | 140.0 | 20000 | 300 | 1.59 | 20—40 |
| 25 | 1 | 25.4 | 35.5 | 39.7 | 28.0 | 4000 | 112.0 | 16000 | 340 | 2.02 | 20—40 |
| 32 | 1-1/4 | 31.8 | 46.0 | 50.8 | 21.0 | 3000 | 84.0 | 12000 | 460 | 3.32 | 20—40 |
| 38 | 1-1/2 | 38.1 | 52.4 | 57.7 | 18.5 | 3650 | 74.0 | 10800 | 560 | 3.70 | 20—40 |
| 51 | 2 | 50.8 | 65.3 | 69.6 | 16.5 | 2360 | 66.0 | 9600 | 660 | 5.47 | 20—40 |
