Hydraulic Rubber Tube / Hose for the Application in Industry,Agriculture, Construction,Coal Mining
US$ 0.5 - 10
MOQ: 10 Meters
Key Specifications
Get Latest Price
Brand Name:
sufeite
Model Number:
4sh
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Multi Spiral Hydraulic Hose,wire Braided Rubber Hose,DIN-EN 857 2SCUS$ 0.5 - 4.5MOQ: 50 Meters -
DIN EN 857 2SC Hydraulic Rubber HoseUS$ 0.5 - 4.5MOQ: 50 Meters
-
Professional Manufacturer DIN EN857 2SC Hydraulic Rubber HoseUS$ 0.5 - 4.5MOQ: 50 Meters
-
DIN EN 857 2SC Rubber Hose Hydraulic Oil New Arrival High Quality Hydraulic Rubber HoseUS$ 0.5 - 4.5MOQ: 50 Meters
-
1SC Hose/ Flexible Rubber Hose/ OIl and Gas Application Hose and FittingsUS$ 0.5 - 4.5MOQ: 100 Meters
Brand Name
sufeite
Model Number
4sh
DIN EN 856 4SP 4SH high pressure hydraulic hose

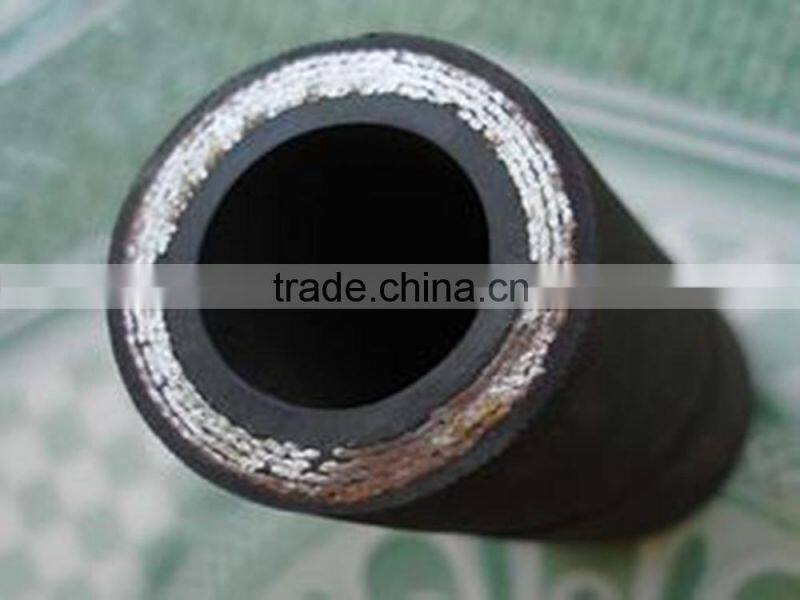

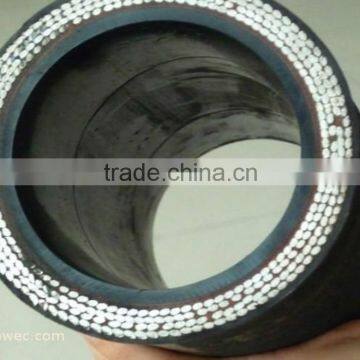

Structure of the high pressure hydraulic hose
Inner tube: Oil resistant synthetic rubber
Reinforcement: Four spiralsof high tensile steel wire
Cover : Abrasion and weather resistant synthetic rubber
Temperature: From-40°C to +125°C
Applications of the high pressure hydraulic hose
Meet MSHA, Widely used in mining industry and other industries.
Technical informations for DIN EN 856 4SP
DIN EN856 4SH STANDARD Tube : Oil resistant synthetic rubber Reinforcement : four high tensile steel wire spiral layers ( 4 W/S ) Cover : abrasion and weather resistant synthetic rubber Temperature range : -40 ℃ to +100 ℃ |
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 19 | 3/4 | 19.0 | 28.4 | 32.0 | 42.0 | 6000 | 168.0 | 24000 | 280 | 1.61 | 20 to 40 |
| 25 | 1 | 25.4 | 35.2 | 38.6 | 38.0 | 5500 | 152.0 | 22000 | 340 | 2.00 | 20 to 40 |
| 32 | 1 1/4 | 31.8 | 41.9 | 45.8 | 32.5 | 4700 | 130.0 | 18800 | 460 | 2.64 | 20 to 40 |
| 38 | 1 1/2 | 38.1 | 48.8 | 53.3 | 29.0 | 4200 | 116.0 | 16800 | 560 | 3.36 | 20 to 40 |
| 51 | 2 | 50.8 | 63.2 | 68.1 | 25.0 | 3600 | 100.0 | 14400 | 700 | 4.98 | 20 to 40 |
The structure Drawing
