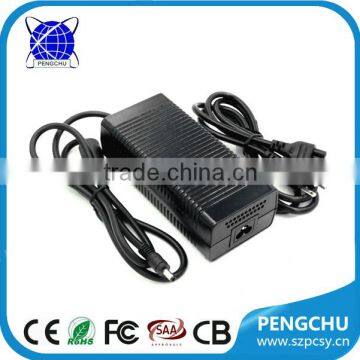

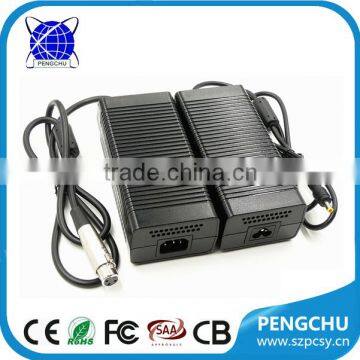

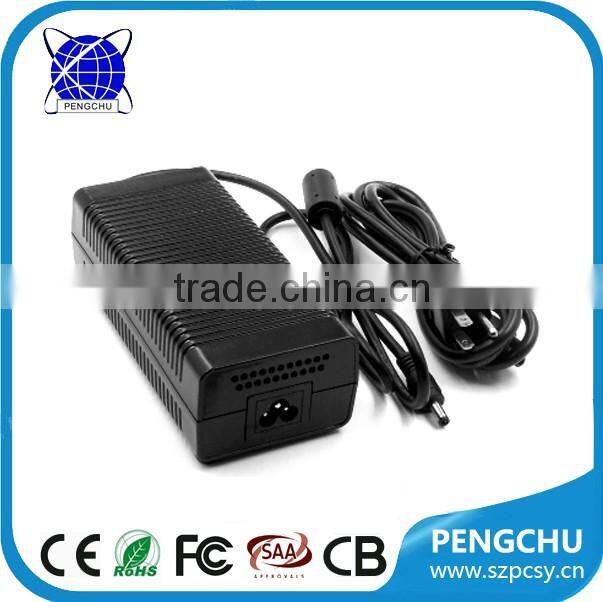

Ac Power Adapter 12V 15V 16V 18V 22V 24V 30V 32V 36V DC Power Adapter 1a 2a 3a 5a 10a
Specification:
Material |
PC |
Dimension |
168*70*50mm |
Color |
Black |
Input Characteristics | |
Votage Range |
AC100V-240V |
Frequency Range |
47-63Hz |
Efficiency |
>80% |
AC Cable |
120-150cm US EU UK AU plug optional |
Output Characteristics | |
DC Voltage |
32V |
Rated Current |
5A |
Rated Power |
160W |
DC Tip Size |
5.5*2.5mm |
Prong |
3 Prong |
DC Cable |
80-120cm |
Certificates | |
CE, ROHS, FCC, SAA, KC, CB, PES etc. | |
Environment | |
Operating Temperature |
-10C to +50C (±10%) |
Operating Humidity |
20 to 90%RH |
Storage Temperature |
-20C to 80C (±10%) |
Storage Humidity |
5% to 95% RH |
Protection | |
Over Load Protection |
Short Circuit Protection Over Voltage Protection (120% min) Over Current Protection (120% min) Over Temperature Protection |
- 100% Raw Material
- 100% Full-load aging testing, stable performance
- Double chipset innovation provides constant true voltage automatically with low consumption
- Low noise & ripple; high efficiency, energy conservation and environmental protection.
- 12 months warranty
1. Neutral White & Brow Box; OEM no less than QTY 1K
2. Delivery Time: 3-5 working days for Sample & MOQ; 7-15 days for Mass production.
Products are passed strict production process and quality inspection, Stable performance and long service life, high quality and competitive price, 100% aging test before shipping. CE, FCC, ROHS, C-TICK, SAA, CB, PSE, KC, Medical, 17P are approved.
| 5V Series | 5V 1A USB Charger | 5V 2A USB Charger | 5V 4A USB Charger | 5V 6A Power Adapter |
| 5V 8A Power Adapter | 5V 10A Power Adapter | 5V 20A Power Adapter | 5V 30A Power Adapter | |
| 12V Series | 12V 1A Wall Adapter | 12V 2A Wall Adapter | 12V 3A Power Adapter | 12V 5A Power Adapter |
| 12V 10A Power Supply | 12V 15A Power Supply | 12V 20A Power Supply | 12V 33A Power Supply | |
| 24V Series | 24V 5A Power Supply | 24V 10A Power Supply | 24V 15A Power Supply | 24V 20A Power Supply |
| 36V Series | 36V 4A Power Supply | 36V 5A Power Supply | 36V 10A Power Supply | 36V 12A Power Supply |
| 48V Series | 48V 3A Power Supply | 48V 5A Power Supply | 48V 8.3A Power Supply | 48V 11A Power Supply |
1. Q: What is your minimum order quantity?
A: The MOQ is 100 PCS.
2. Q: How does your factory do regarding quality control?
A: Quality is priority. Our power adapters are real power and high efficiency. We do 100% full load
testing before shipping.
3. Q: What is your warranty? And if I got wrong ones, how will you do with it ?
A: Our warranty is 1 year. If having wrong ones which can't work, pls show us pictures, and we will replace the relative spare parts or a new one accordingly . If you wanna to refund, it can be
discussed.
4. Q: What are the shipping ways you can offer?
A: We can delivery the goods by air/sea/express according to custom ers' requirements.
5. Q: What payment terms can be acceptable?
A: All payment way you prefer, like T/T, PayPal, Western Union.
6. Q: How about your delivery time?
A: Bulk quantity within 7-9 working days normally.
7. Q: Do you provide samples of this product?
A: Yes, we can provide sample or trial order for test.
8. Q: Do you make OEM?
A: Yes, we can provide all kinds of OEM packing and labels as customers' request.
