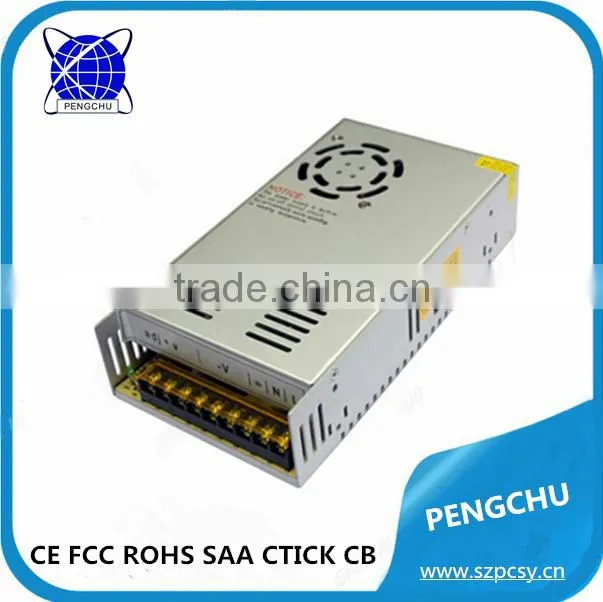

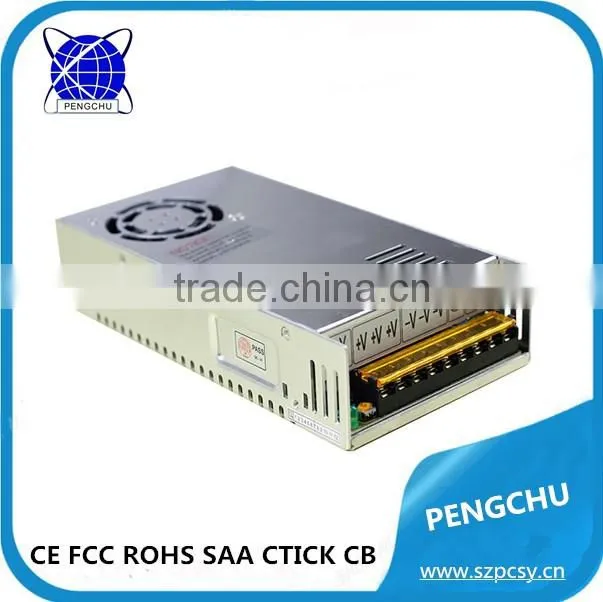

19 Volt Generator 20amp 19v Power Supply Aluminum

US$ 14 - 14.5 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

19v 20a 380w

Shenzhen Pengchu Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number 19v 20a 380w

Output Power 301 - 400W

Output Type Single

Input Voltage 110V

Output Voltage 19v

Output Frequency 50HZ~60HZ

Output Current 20a

19 volt generator 20amp 19v power supply aluminum

Specifications :

Compact, High Power Single Output Switching Power Supply

This unit is available in 240w~500w versions with outputs ranging from 5VDC to 48VDC.

Pengchu design makes them ideal for either commercial or harsh environment industrial applications.

Features:
1:AC input range by the switch
2:Protection:Short Circuit Protection,Overload Protection,Over Voltage Protection
3:Forced air cooling by built-in DC fan with fan speed control
4:Thermostat fan operation
5:100% full load aging test
6:LED power-on indicator
Electrical Specification:
Output	1:DC voltage	19v
	2:Rated Current	20a
	3:Current Range	0--35A
	4:Ripple&Noise(max)	≤120MV
	5:Voltage ADJ.Range	8.9v-25v
	6:voltage tolerance	±0.5%
	7:Line regulation	±0.5%
	8:Load regulation	±0.5% Full Load
	9:Setup Rise Time	200ms 40ms/230VAC
	10:Hold Time(TYP.)	20MS/230VAC 15MS/115VAC
Input	1:Voltage Range	100V~240V
	2:Frequency Range	47——63HZ
	3:AC current	6A/115VAC 4A/230VAC
	4:Inrush Current	40A/115VAC 25A/230VAC
	5:Efficiency	85%
	6:Leak Current	≤0.1MA/230VAC 115VAC
Protection	1:Over Load	Rated Output Power 105-140%
	2:Over Voltage	> Rated Voltage 108%
	3:Short circuit	Load automatically after fault condition is removed to restore
Function	1:Fan switch Control	RTH≥50°C Fan ON RTH≤50°C Fan OFF
Environment	1:operate temperature	0°C~40°C
	2:storage temperature, storage humidity	0°C~+40°C, -5%~95%RH no Condensing
Safety&EMC	1:withstand voltage	Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC, Output and enclosure:0.5KVAC
	2:EMC IMMUNITY	Compliance to EN55022 (CISPR22) CLASS A
Others	1: Dimension	21511350mm
	2:Package	Normally white paper box
