Home > Chemicals > Rubber & Rubber Products > Rubber Tube, Pipe & Hose > SAE100 R2AT Steel Wire Braided Reinforced Hydraulic Rubber Hose

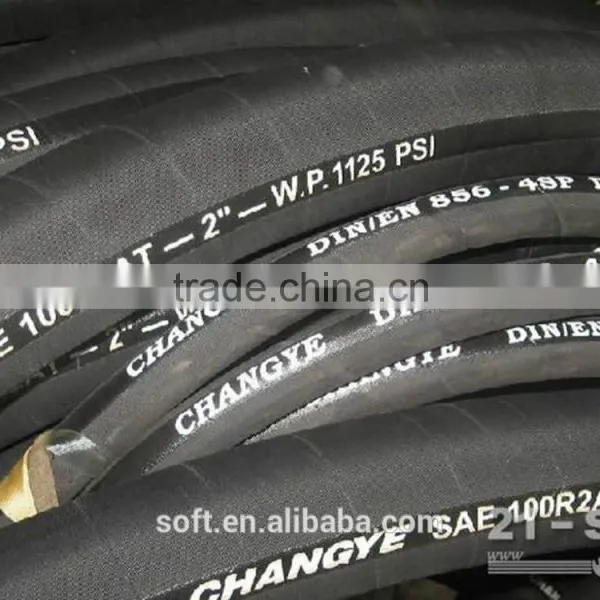

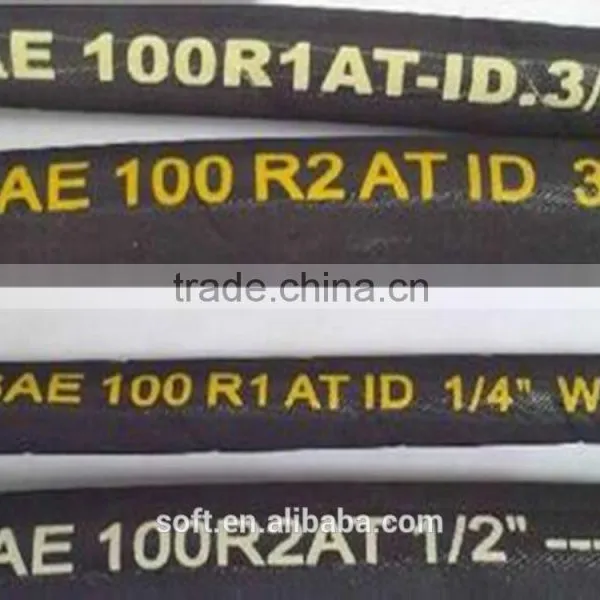

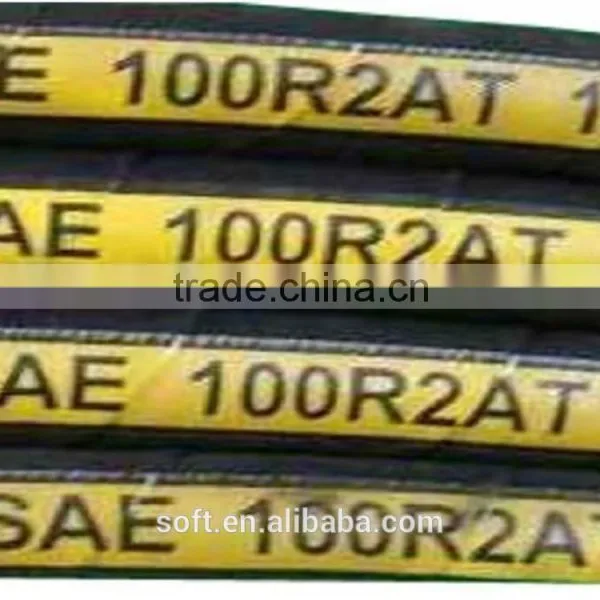

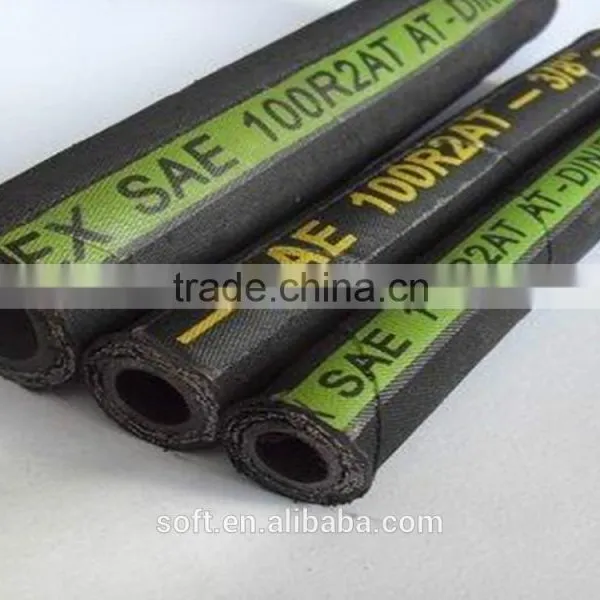

SAE100 R2AT Steel Wire Braided Reinforced Hydraulic Rubber Hose
US$ 0.5 - 2
MOQ: 10 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
sufeite
Model Number:
R2 AT
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pressure Test Rubber Hose SAE 100 R2ATUS$ 0.5 - 2MOQ: 10 Meters -
Sufeite Hot Selling Hydraulic Rubber Hose SAE 100 R6US$ 0.3 - 2.6MOQ: 100 Meters
-
Textile Braided Reinforcement Hydraulic Rubber Hose Sae r6 3/8" Made in ChinaUS$ 0.3 - 2.6MOQ: 100 Meters
-
SAE 100 R6 Hydraulic Rubber HoseUS$ 0.3 - 2.6MOQ: 100 Meters
-
Single Fiber Braided Rubber Coverd GR6/SAE 100 R6 Rubber Hydraulic HoseUS$ 0.3 - 2.6MOQ: 100 Meters
Place of Origin
Hebei, China
Brand Name
sufeite
Model Number
R2 AT
Our Services
Our Service:
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM&ODM are welcome.
4. Exclusive, considerate and unique solution can be provided to our customers by our well-trained and
professional engineers and staffs.
5. Special discount and protection of sales area provided to our distributor.
6. Do the best hydraulic hose SAE 100R2AT in China!
|
SAE 100 R2 AT / DIN EN 853 2SN STANDARD Tube : Oil resistant synthetic rubber Reinforceent : two high tensile steel wire layers 2 w Cover Compound : Abrasion and weather resistant synthetic rubber Temperature range : -40 ℃ to +100 ℃ |
| DN | Hose I.D | Wire O.D | Hose O.D | Working Pressure | Burst Pressure | Minimum Bend Radius | Weight | Length | |||
| inch | mm | mm | mm | MPa | psi | MPa | psi | mm | kg/m | metres | |
| 5 | 3/16 | 4.8 | 11.1 | 13.4 | 41.4 | 6000 | 16 | 23720 | 89 | 0.32 | 50/100 |
| 6 | 1/4 | 6.4 | 12.7 | 15.0 | 40.0 | 5800 | 160 | 22840 | 102 | 0.36 | 50/100 |
| 8 | 5/16 | 7.9 | 14.3 | 16.6 | 36.0 | 5250 | 140 | 20000 | 114 | 0.45 | 50/100 |
| 10 | 3/8 | 9.5 | 16.7 | 19.0 | 33.1 | 4800 | 132 | 18840 | 127 | 0.54 | 50/100 |
| 13 | 1/2 | 12.7 | 19.8 | 22.2 | 27.6 | 4000 | 110 | 15720 | 178 | 0.68 | 50/100 |
| 16 | 5/8 | 15.9 | 23 | 25.4 | 25.0 | 3630 | 100 | 14280 | 203 | 0.8 | 50/100 |
| 19 | 3/4 | 19.0 | 27 | 29.3 | 21.5 | 3120 | 85 | 12280 | 241 | 0.94 | 50/100 |
| 25 | 1 | 25.4 | 34.9 | 38.0 | 16.5 | 2400 | 65 | 9420 | 305 | 1.35 | 50 |
| 32 | 1 1/4 | 31.8 | 44.5 | 48.3 | 12.5 | 1820 | 50 | 7140 | 419 | 2.15 | 20 to 40 |
| 38 | 1 1/2 | 38.1 | 50.8 | 54.6 | 9.0 | 1310 | 36 | 5140 | 508 | 2.65 | 20 to 40 |
| 51 | 2 | 50.8 | 63.5 | 67.3 | 8.0 | 1160 | 32 | 4560 | 635 | 3.42 | 20 to 40 |
