Australian Type Concrete Vibrator Shaft

Specifications

Australia Concrete Vibrator Shaft
DYNAPAC,Japanese,Russia,Turkish type is also available
Head Dia:25,28,32,35,38,45,50,60,70mm

Concrete Vibrator Shaft SVS Series



CONSMAC SVS series high-performance mechanical Concrete Vibrator Shaft. Large choice of couplings and diameters from 25 to 75 mm, drived by CONSMAC electric vibrator motor(SVE series), gasoline and diesel vibrator motor(SVD series).



Concrete Vibrator Shaft SVS Series Couple Option:



1.  Japanese type

2.  Dynapac type

3.  Russian type

4.  Turkish type

5.  Australian type

6.  Chinese square type



Concrete Vibrator Shaft SVS Series Head Dia: 25mm,28mm,32mm,35mm,38mm,45mm,

50mm,60mm,70mm.



Concrete Vibrator Shaft SVS Series Specification:



Model	SVS25	SVS28	SVS32	SVS35	SVS38	SVS45	SVS50	SVS60	SVS70
Head Dia.	25mm	28mm	32mm	35mm	38mm	45mm	50mm	60mm	70mm
Length of Shaft	Standard length:6m(1m-12m is available)
Hose outside Dia	24mm	25mm	30mm			32mm	36mm
Hose inner Dia	13mm	14mm	16mm			18mm	20mm
Shaft Dia	8mm			10mm		12mm	13mm
Frequency	230hz		210hz	200hz
Amplitude	1.1mm	1.11mm	1.13mm	1.15mm	1.18mm	1.2mm	1.21mm	1.28mm	1.32mm
Couple Choice	Japanese type ,Dynapac type,Chinese square type,Australian type,Turkish type
Drive unit	Electric motor, Petrol engine, Diesel engine
Packing size	85*65*6cm(33*25*2.5in)
Optional	Outer Liner, Spring

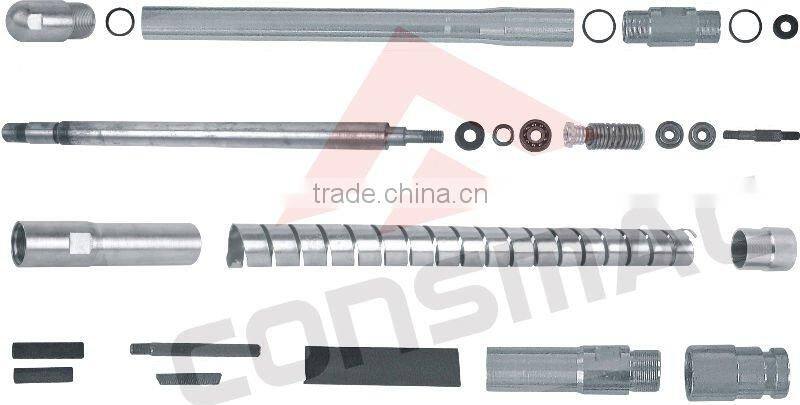

Concrete Vibrator Shaft SVS Series Components:
