CONSMAC 1 Ton Used Tire Dynapac Drum Compact Roller

CONSMAC 1 Ton Used Tire Dynapac Drum Compact Roller thumbnail-1
CONSMAC 1 Ton Used Tire Dynapac Drum Compact Roller photo-1
US$ 3,000 - 4,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Double Drum Roller
Static Linear Pressure:
Centrifugal Force:23KN
Contact Supplier Request Quote Chat Now
Consmac Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Double Drum Roller
Static Linear Pressure Centrifugal Force:23KN
Travel Speed Max. Travelling speed: 0-4KM/H
Grade Ability Gradeability:30%
Place of Origin Zhejiang, China
Brand Name CONSMAC Vibratory Roller

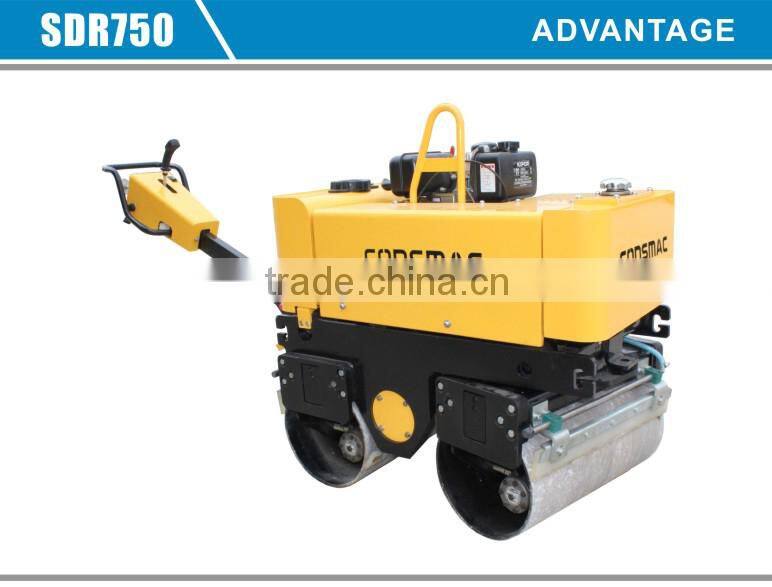

Model Number CONSMAC Vibratory Roller SDR 750
Power(W) Vibration frequency: 70HZ
Dimension(L*W*H) Vibraory Roller SDR750 140*75*197cm
Weight Vibratory Roller SDR750 870kg
Certification Vibratory Roller with CE, GS, TUV
After-sales Service Provided Overseas service center available

Specifications

mechanical roller
1. Full hydraulic transmission, vibration, steering and turning
2. Famous brand variable

CONSMAC mechanical roller



CONSMAC road roller (sometimes called a roller-compactor, or just roller) is a compactor type engineering machine used to compact soil,gravel, concrete, or asphalt in the construction of roads and foundations, similar rollers are used also at landfills or in agriculture.

Product Description



CONSMAC mechanical roller Specification

CONSMAC have wide model options for road roller types and engines:



1. Model options:

SSR600 (Single drum roller, 350kgs, 13.5kn)

SDR600 (Double drum roller, Hydraulic drive, Mechanical steering, 560kgs, ecomonic type, 20kn)

SDR700 ( Double drum roller, Fully Hydraulic drive & steering, 650kgs, 23.5kn)

SDR750 ( Double drum roller, Fully Hydraulic drive & steering, Easy swerve type, 820kgs, 23.5kn)

SDR800 ( Ride on roller, Hydraulic drive, Mechanical steering , 770kgs, 20kn)

SRR1000(Ride on roller, Fully Hydraulic drive & steering, 1000kgs, 27kn )

SRR1600(Ride on roller, Fully Hydraulic drive & steering, 1600kgs, 30kn )



2. Engine options:

Gasoline 9.0hp, 13hp, 20hp Honda engine

Diesel 4.2hp, 5.5hp, 8.5hp, Kipor, Yammar engine

CONSMAC 1 ton used tire dynapac drum compact roller

Features:

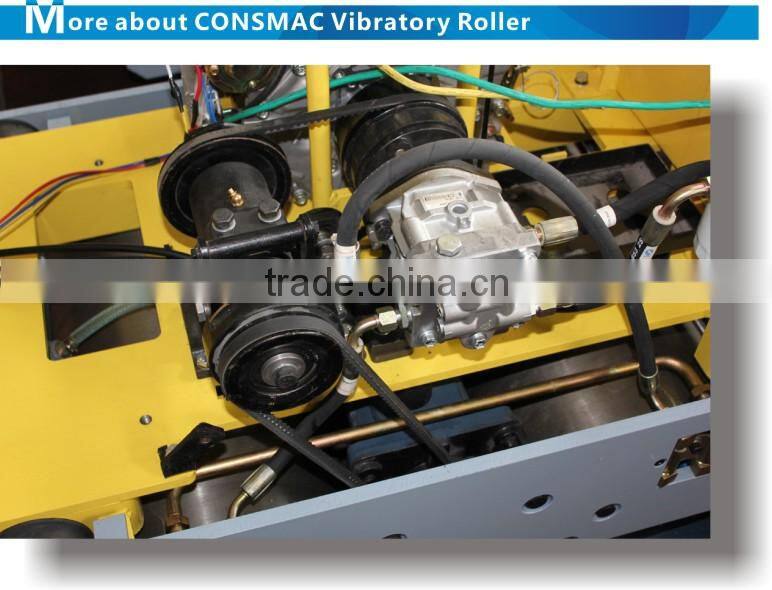

 Full Hydraulic transmission, hydraulic vibration, hydraulic steering and turning.

 Famous brand variable pump(SAUER), stepless transmission, fixed dislacement motor.

 Hydraulic turning system imported from Ireland, Front wheel turning, easy to change direction.

 NSK bearing and MITSUBOSHI V-belt

 Electromagnetism clutch

 Adjustable height mechanism of handle, storage erectly, easy to transport

 Safety mechanism for reverse to keep operator safety.

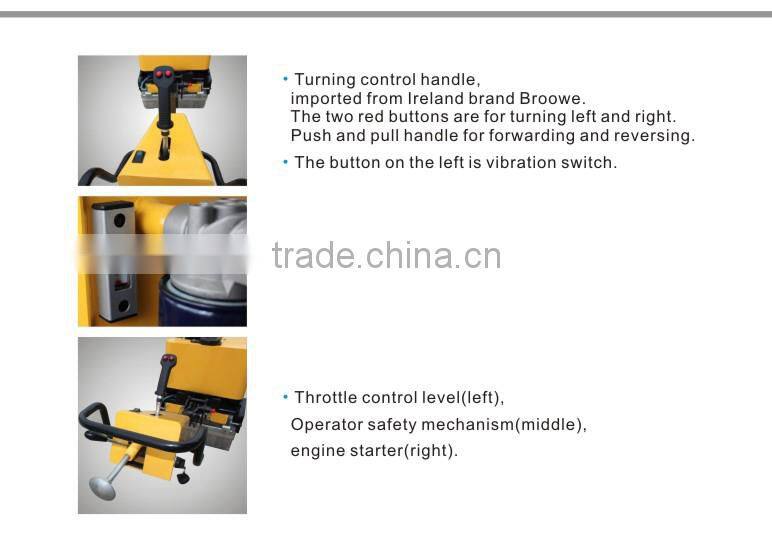

 Top grade practical long distance throttle controlled lever.

CONSMAC 1 ton used tire dynapac drum compact roller

CONSMAC 1 ton used tire dynapac drum compact roller



 CONSMAC 1 ton used tire dynapac drum compact roller

CONSMAC 1 ton used tire dynapac drum compact rollerCONSMAC 1 ton used tire dynapac drum compact rollerCONSMAC 1 ton used tire dynapac drum compact roller

Packaging & Shipping

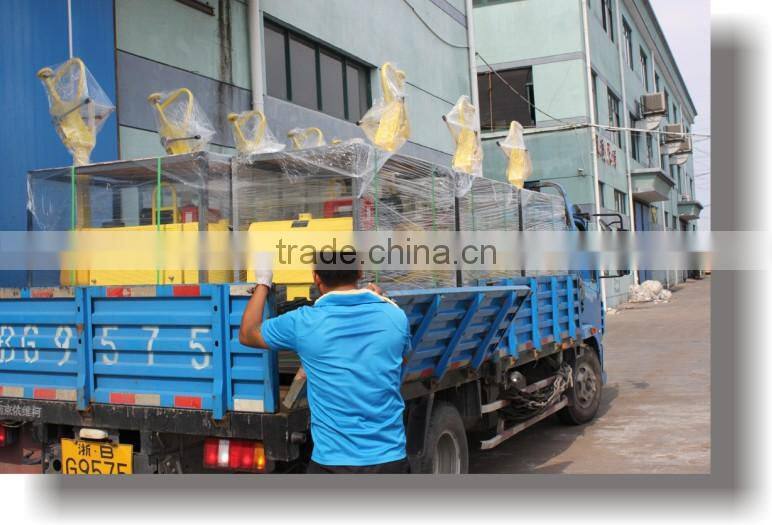

  Road roller packed in wooden box.
