Wall Plastering Machine

Wall Plastering Machine photo-1
US$ 5,000 - 10,000 MOQ: 1 Carton
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Power(W):
4.0kw
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Automatic Grade Automatic
Power(W) 4.0kw
Rendering Thickness 30 mm
Rendering Height 15 m
Place of Origin Zhejiang, China
Brand Name CONSMAC, CONSMAC
Model Number Mini 30P, Mini 30P
Dimension(L*W*H) 1590*860*750mm, 1590*860*750mm
Weight 240 kg, 240kg
Certification CE, CE
Warranty 12 month, 12 months

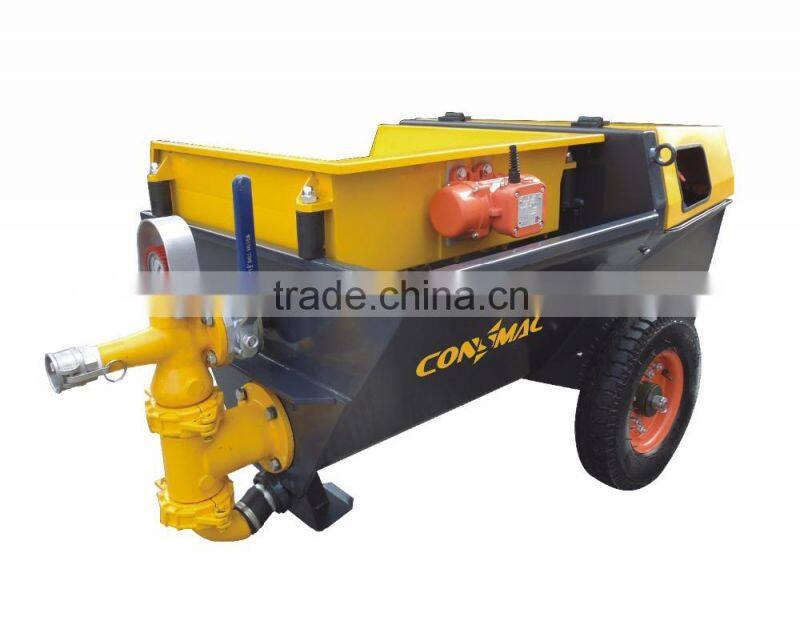

                Plastering machine Mini Avant 30P



1. Introduction

The CONSMAC plastering machine Mini 30P is the ideal solution for pumping, conveying and applying a wide range of common, ready-mixed and special mortars.

Mini 30P can also be used to pump self-leveling screed, the injection of cement slurry at controlled pressure and the filling of joints and leaks on facing masonry.

Due to the exclusive patented technique, it guarantees uniform and continuous spraying of the material.

It functions regularly with the current supplied by a normal domestic meter.



2. Technical Data



Model Mini-30P
  Single Cylinder Piston Mortar Pump
Electric motor 220V, 2.2kw, single phase 400V, 3kw, three phase
Pump delivery 30L/min
Max. running pressure 15bar
Theoretical vertical height 15m
Theoretical horizontal distance 50m
Particle size <6mm
Total weight 240kg
Overall dimension 1590×860×750mm





 3. Advantages

  1. Thanks to an exclusive patented technique, it guarantees uniform and continuous spraying of the material.
  2. The innovative piston pump can pump aggregates with a particle size up to a maximum of 6 mm, ensuring high efficiency, very low working and maintenance costs and low electrical energy absorption.
  3. It has as an additional protection to the conventional magnet-circuit breaker, permitting safe use even with voltages lower than 230V (SINGLE-PHASE version).
  4. Highly reliable safety devices.wall plastering machine

wall plastering machine



wall plastering machinewall plastering machine
