Concrete Vibrator machine

Specifications

Concrete Vibrator machine
Honda GX160,5.5hp,4.0kw
DYNAPAC Type, Australia Type can be availabl

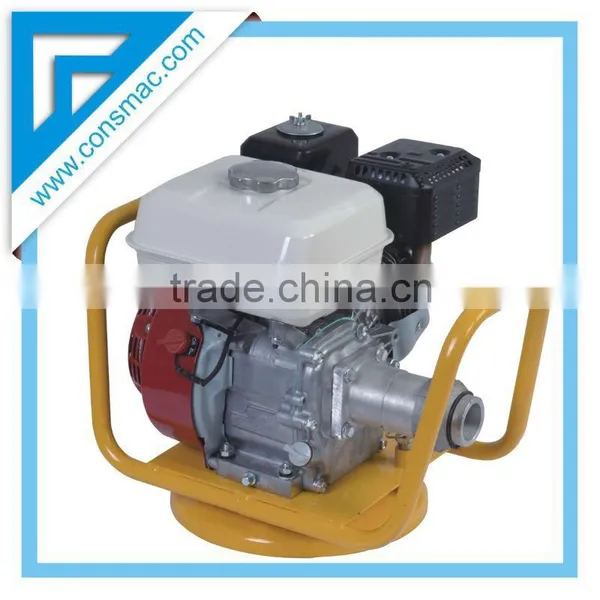

 Concrete Vibrator machine



CONSMAC SVD series Concrete Vibrator machine is the drive unit for various concrete vibrator shaft.





Concrete Vibrator machine Coupling Choice:



1.  DYNAPAC Coupling

2.  Japanese Coupling

3.  Ball Type Coupling

4.  Pin Type Coupling

5.  Other coupling like Australia type, Russia type can be available, based on customers' choice.





Concrete Vibrator machine  Specification:



Model	SVD-H	SVD-R	SVD-L	SVD-K
Engine	Air-cooled, 4-cycle,single cyliner
Engine Type	Petrol, Honda GX160	Petrol, Robin EY20	Petrol, Lifan 168F	Diesel, Kama 170F
Power	5.5hp/4.0kw	5.0hp/3.6kw	5.5hp/4.0kw	3.8hp/2.8kw
Rotary Speed	3600rpm
Coupling Choice	DYNAPAC Type, Pin Type, Ball Type
Applications	Concrete vibrator, submersible flexible pump
Weight	22kg(49lbs)	25kg(55lbs)	24(53lbs)	34(75lbs)
Packing	53*38*54cm(21*15*21in)











Concrete Vibrator Shaft



CONSMAC SVS series high-performance mechanical Concrete Vibrator Shaft. Large choice of couplings and diameters from 25 to 75 mm, drived by CONSMAC Diesel, Gasoline Concrete Vibrator(SVD series) and Electric Concrete Vibrator(SVE series)





Concrete Vibrator Shaft Coupling Option:



1.  Japanese type

2.  Dynapac type

3.  Russian type

4.  Turkish type

5.  Australian type

6.  Chinese square type

7.  Other couplings can be available, based on customers' choice.





Concrete Vibrator Shaft Specification





Model	SVS25	SVS28	SVS32	SVS35	SVS38	SVS45	SVS50	SVS60	SVS70
Head Dia.	25mm	28mm	32mm	35mm	38mm	45mm	50mm	60mm	70mm
Length of Shaft	Standard length:6m(1m-12m is available)
Hose outside Dia	24mm	25mm	30mm			32mm	36mm
Hose inner Dia	13mm	14mm	16mm			18mm	20mm
Shaft Dia	8mm			10mm		12mm	13mm
Frequency	230hz		210hz	200hz
Amplitude	1.1mm	1.11mm	1.13mm	1.15mm	1.18mm	1.2mm	1.21mm	1.28mm	1.32mm
Couple Choice	Japanese type ,Dynapac type,Chinese square type,Australian type,Turkish type
Drive unit	Electric motor, Petrol engine, Diesel engine
Packing size	85*65*6cm(33*25*2.5in)
Optional	Outer Liner, Spring





All CONSMAC petrol poker vibrator  are available for online purchase with fast delivery.

Please feel free to contact us at Phone No: 0086- 574- 88192352, or send us enquiries on line, all your mails will be replied within 24 hours.
