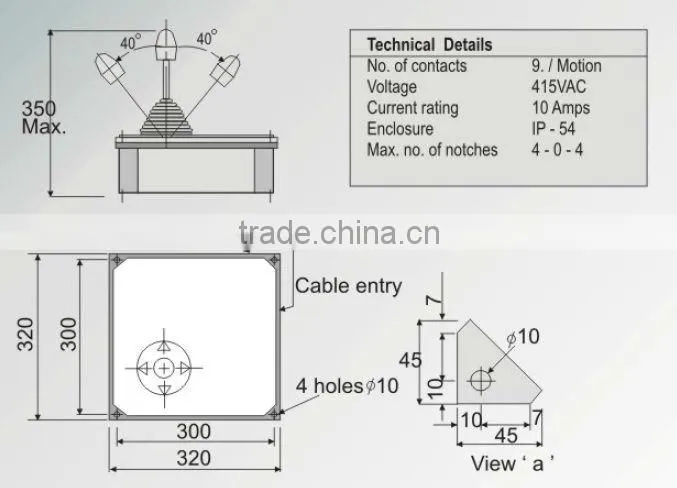

Help CenterDual Master Controller Manufacturer From India
Related Products
Specifications
1.Dust proof enclosure2.IP-54 degree of protection
3.Up to 6 notches on either side
4.Compact upto 4-0-4 step
INTRODUCTION :
Master Controllers are used for remote operation of contractors equipment controlling E.O.T. Cranes & Rolling mills drives. The controllers are made in dust proof enclosure in IP-54 degree of protection, up to 6 notches either side with maximum 24 contacts as per desired sequence with spring return arrangement & Dead man's handle arrangement are available. And Master Controllers are compact suitable for Hoist -Grab, CT - LT maximum contacts 16 per motion with spring return arrangement.
GENERAL :
Twin master controller with one universal handle allows a crane operator to control both bridge & trolley motions with one handle. Simultaneous operation of bridge & trolley motions provide for greater spotting accuracy and faster movement of loads. The handle of joystick can be moved into any quadrant and any position. Universal controllers are also used for hoist / grab motion.
Master controllers are coupled with universal joint for operation of controller individually / jointly to get the desired motion operation
CONSTRUCTION :
Master Controller is housed in enclosure and provided with an easily removable cover with ample area for maintenance. The cam shaft is mounted on bearing bushes on walls of housing. The cams are made of delrin material and fixed on square spindle switch is moved by handle.
Technical:
| Body material | Al. Die cast |
| Contact material | Silver cadmium |
| Contacts | Single bracket |
| No of Contacts |
16 per controller (max.) |
| Contact rating | 10/40 amps. |
Specifications:
- Dust proof enclosure
- IP-54 degree of protection
- Upto 6 notches on either side
- 16 contacts as per desired sequence
- Maximum contacts 16 per motion with spring return arrangement
- Offered in spring return arrangement and dead man's handle arrangement, these master controllers are suitable for hoist-grab and CT – LT.
