New FLG-300 High Efficiency Sand Spiral Classifier Machine of Sale

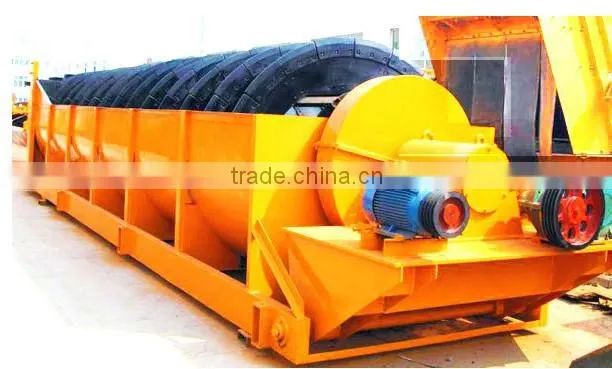

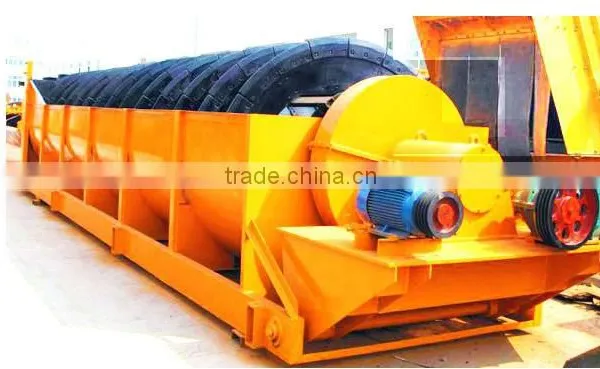

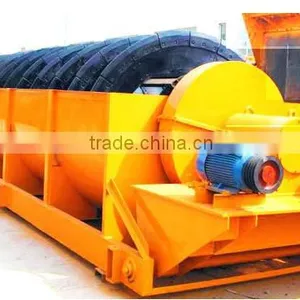

New FLG-300 High Efficiency Sand Spiral Classifier Machine of Sale photo-1
US$ 1 - 999,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Taida
Model Number:
spiral classifier
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Taida
Model Number spiral classifier
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. The lining tile, repair rate is very low.
2. Adopt frequency conversion control technology, simple operation

    Durable and stable spiral classifier equipment



Introduction:



LS series screw sand washer is the professional sand washing machine developed on the basis of previous technology and combined with the actual situation of sand and gravel industry. It is a high-efficiency sand washer which can separate the excess powder and mud and so on in the raw material. When working, the sand will grind each other under the driving of the impellers. By this way it can not only remove the impurities wrapped on the surface of the sand, nut also destroy the vapor layer wrapped around the sand, and completes the impurity cleaning processing in powerful water flow.

Application:

It is suitable for washing, grading, impurity cleaning for metallurgy industry, construction material, etc. It is the indispensable sand washing equipment for housing construction, bridge construction, highway and railway project, etc.


Features and advantages:

1. Three functions: cleaning, dewatering and grading.

2. Cleaning and upward conveying at the same time.
3. Low water consumption; durable.

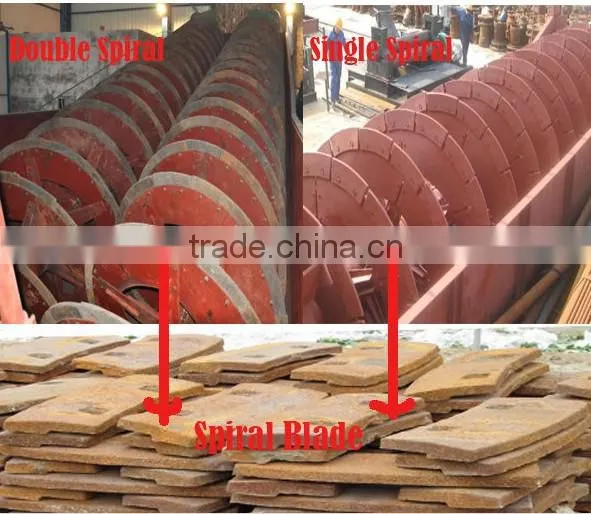

4. Impellers use wear resisting plate or polyurethane material, reduce the running cost.
5. Designed according to low volume, low investment.
6. Capacity of screw sand washer is above 100t/H, effectively control the sand washing loss.

Principle:

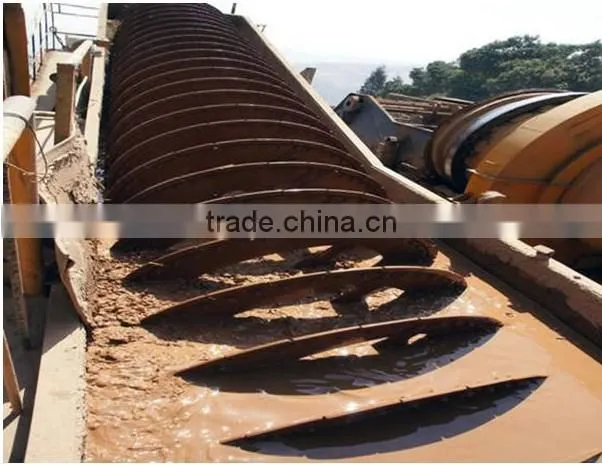

Screw sand washer is developed according to the principle of different particles with different fall velocities because of their sizes and densities. Fine particles float in the water and form the overflow; coarse particles fall down to the bottom of the trough and are pushed to the top port by the impellers and discharge. During working, the motor drives the impellers to rotate slowly by triangle belt, decelerating motor and gears. Sand enters the washing trough from the fed trough, roll and grind each other under the driving of impellers. Then wrapped impurity around the sand surface is removed and the vapor layer is destroyed at the same time. While the impurities and dirt is removed by the added water flow, cleaned material is conveyed upward by the rotating impellers to the discharge chute.


Specification:

Model spiral diameter
(mm)
Trough length
(mm)
Selected size
(mm)
capacity
(t/h)

Spiral speed
(r/min)
Water consumption
(t/h)
Power
(kw)
Weight
(t)
Dimension
(mm)
LSX915 915 7585 ≤10 100 21 10-80 11 6.5 8500×2950×1930
2LSX915 915 7585 ≤10 200 21 20-160 2×11 11.8 8420×3765×2030
LSX1115 1115 9782 ≤10 175 17 20-150 15 10.18 10970×3945×4720
2LSX1115 1115 9782 ≤10 350 17 40-300 2×15 17.94 10970×5250×4720



new FLG-300 High efficiency sand spiral classifier machine of salenew FLG-300 High efficiency sand spiral classifier machine of salenew FLG-300 High efficiency sand spiral classifier machine of salenew FLG-300 High efficiency sand spiral classifier machine of salenew FLG-300 High efficiency sand spiral classifier machine of salenew FLG-300 High efficiency sand spiral classifier machine of sale
