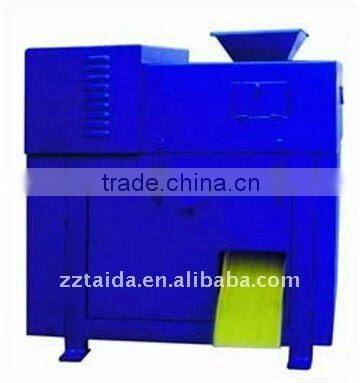

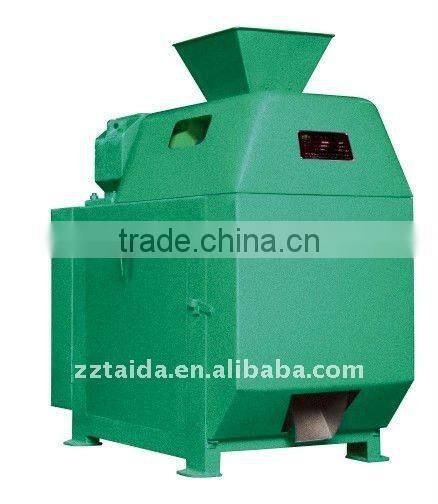

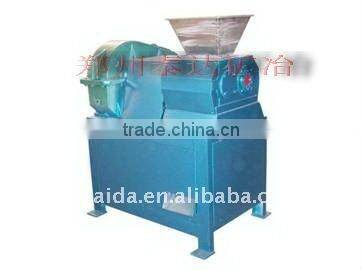

Double-Roller pelletizer

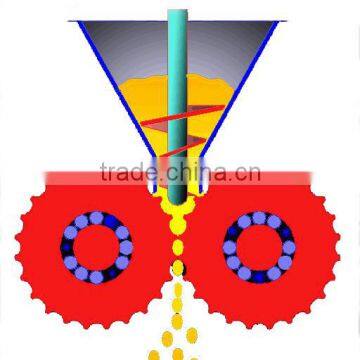

Working principle of Double-Roller Pelletizer:
A pair of mating gear roller is used as the working part for overstocking material
The type of working principle is continuous extruding granulation of positive-displacement
The plant can be adapted widely, and the end products possess higher intensity and uniform length

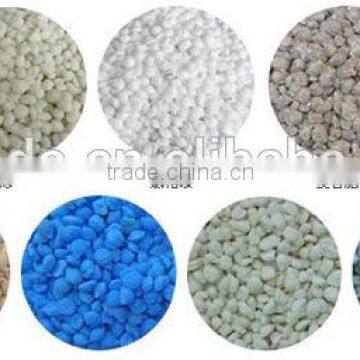

Shape of particle:
cylindrical
Diameter of particle:
3.5 to 10mm
Rate of end product:
≥85%
Applied scope:
widely applied in the field of catalyzer, auxiliary, additive, daily chemicals, agrochemicals, and more
Merits of Double-Roller Pelletizer:
As the material is extruded by means of rolling of gears and positive-displacement compressing, it possess a wider adaptability to varying material, and is especially suited for granulation with thixotropy
Scraping cutter installed inside made the particle have the same length
Wetness required for granulation and the particle granulated by this plant is lower and the particle granulated by this plant is more intensive than screw type Pelletizer
Main technical parameters of Double-Roller Pelletizer
Model | TDF-11 | TDF-22 | TDF-37 |
Product size | 4-10 | 4-10 | 4-10 |
Power (kw) | 11.5-15 | 18.5-22 | 37 |
Capacity (t) | 1-2 | 2-3 | 3-5 |
Dimension (mm) | 1200×750×1400 | 1350×1110×1600 | 1600×1000×1550 |
Double-Roller pelletizer, pelletizer, crushers
