Good Price Coal and Charcoal Briquette Press Briquette Making Machine

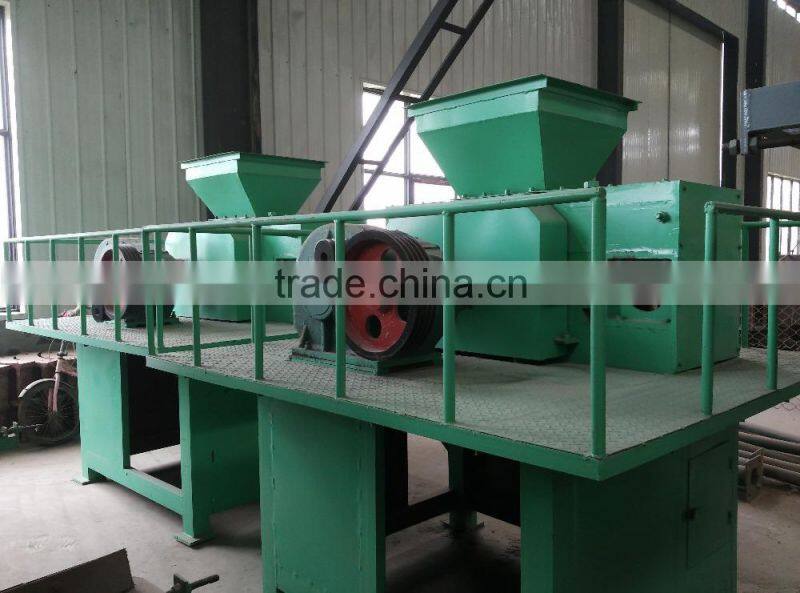

Good Price Coal and Charcoal Briquette Press Briquette Making Machine photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Taida
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Taida
Model Number according to the output
Voltage customer's local voltage
Power(W) according to the output
Weight according to the output
Dimension(L*W*H) according to the output
Certification ISO:9001:2008
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Introduction
High efficient coal briquette machine is an equipment which can press variety of coal powder, coal dust, coal slime, coking coal, coke powder, aluminum powder, iron powder, iron scurf, iron oxide skin, active carbon, slag, gypsum, limestone, plastic, kaolin and tailings into ball.

The requirements of raw materials
1. The materials powder size must be less than 4 cm. If not, you should crush it firstly.
2. Any raw materials with metal is not allowed, otherwise it will damage the surface of rollers.

The applications of end products
1. Home heating stoves;
2. Hot water boilers and the industrial boilers;
3. Easy transportation for powdered materials.

Features
---the roller is made by hard materials, with good wear resistance and long life time;
---the service life of wearing parts is up to 4000 hours;
---the machines electricity cost reduces by 60%;
---the machine is easy to operate and maintain;
---the molding material is energy-saving, easy to transport and higher utilization of waste.
---the final product is smokeless, non-toxic, none peculiar and environmental protection.
---the end products shapes include oval, round, square, ball egg-shaped and pillow-shaped.

Working principle of coal briquette machine
Coal briquette machine will pass the power on to the two pressure roller through the reducer.
The two sides and roll rotation, in both the rotating roll, natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, when the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials becomes a finished product from the powder ball.

ModelTMY-290TMY-360TMY-430TMY-500TMY-650TMY-750TMY-850
Capacity1-3t/h3-4t/h6 t/h10t/h15t/h22t/h30t/h
Roller width200mm250mm280mm300mm336mm400mm500mm
Diameter of roller sheer290mm360mm430mm500mm650mm750mm850mm
Motor power5.5kw7.5kw15kw18.5kw22kw45kw55kw

 Good Price Coal and Charcoal Briquette Press Briquette Making MachineGood Price Coal and Charcoal Briquette Press Briquette Making MachineGood Price Coal and Charcoal Briquette Press Briquette Making MachineGood Price Coal and Charcoal Briquette Press Briquette Making Machine
