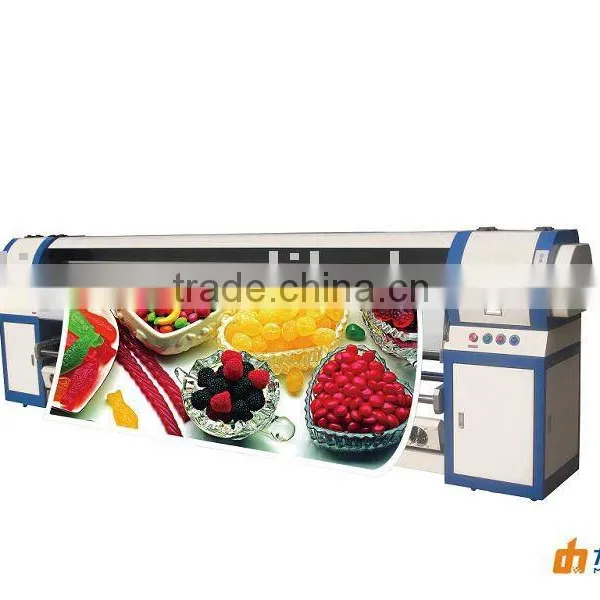

Help CenterLIYU Maxima PZ Series Inkjet Machine
Related Products
Specifications
1Best Konica Inkjet printer in China, most popular sale in Europe. 2Max.Resolution:1440dpi; Max.Speed:144sqm/h. High competitiveTechnical Specifications for Maxima PZ series Inkjet Printer:
MODEL |
PZ3204/PZ3206-KM |
PZ 3208-KM |
Print Tech |
Piezo continuous drop-on demand(DOD) |
|
Print Head |
4/6*KM512MN 14pl |
8*KM 512MN (14pl) |
Print Resolution |
Max. 720*1440dpi |
|
Image Size |
3.20m / 126in. |
|
Media Size |
3.29m / 130in. |
|
Media Type |
Banner, Vinyl, Coating Film, Mesh, etc |
|
Media Transmission |
Roll to Roll |
|
Printing Speed |
The machine can achieve 1pass printing at 144sqm/h. |
|
Ink Type |
CMYK or CMYKLcLm |
|
Interface |
USB2.0 |
|
Auto.take-up and feeding system |
Equipped |
|
Heating System |
Three Sections of pre-heat,heat post- heat |
|
Ventilation System |
Optional |
|
Packing Size(w×d×h) |
4.57m*1.00m*1.60m (179.9* 39.4 * 63.0in.) |
|
G.Weight |
500Kg/1102lbs |
|
Power Requirement |
110V / 220±10%, 10A, 50 / 60Hz |
|
Environment |
Temperature:2030, Humidity:40%70%RH |
|
Outdoors Durability |
2 years |
|
Specifications are subject to change without prior notice.
Highlight Features
1. The PZ Series grand format line is ideal for high-volume production printing in excellent quality with innovative Konica Minolta KM512/14pl print-heads,Max. Resolution up to 1440dpi, 1mm letter is easy and clear to see.
2. Designed for high-volume printing and rush jobs, the PZ with 8 heads of dual CMYK produces billboards, banners, backlit, fleet and vehicle graphics, and point of purchase displays at a maximum print speed of up to 144 m2/hr Perfect combination of speed and resolution.
3. THK high-precision linear guider, Panasonic servo motor enables higher carriage speed and lower noise.
4. Two grade gear drive system ensures more accurate step and media feeding.
5. Broadbanding printing and heating platform, plus the powerful cooling fans system quickly
dries ink and medias (especially the vehicle sticker) for high-speed applications.
6. Independent research and developed LIYU own pcbs, guarantied machine
quality, after-sales Worry-free.
