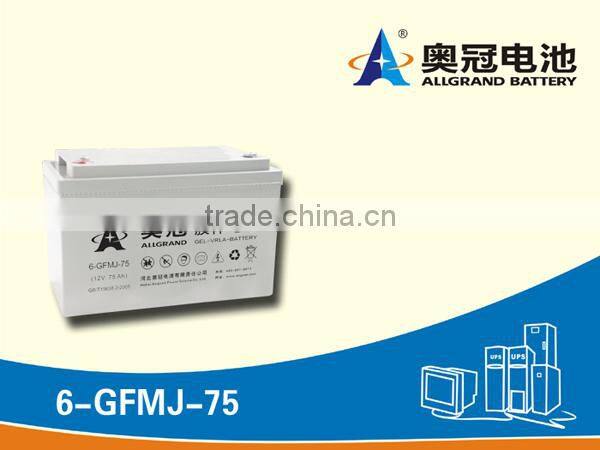

Help Center12v75Ah Dry Battery for UPS
US$ 70 - 80
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Aoguan
Model Number:
6GMFJ-75
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qing dao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
Aoguan
Model Number
6GMFJ-75
Phase
Single Phase
Protection
Overcurrent
Weight
23.2kg
Output Voltage
12V
Type
Standby
Application
Security / Monitoring / Alarm
Dry Battery for UPS 12V75ah / AC power supply / UPS
FEATURES
- Absorbent glass mat (AGM).The glass –fiber separator are made with advanced technology – this high porosity of the separators retains adequate electrolyte for the reaction with active material of the plates.
- It’s designed to operate for up to 10 yearsat 20°C on the basis of accelerated tests
- If depth of discharge is 30%, cycle service lifecan reach maximum at about more than 1000 times.
- Battery case is making of fire proofs material therefore the case is very strong. It can avoid the fire.
- Its using insert terminal. And it is not only beautiful but also easily distinguished and installed.
- Maintenance free As it is valve-regulated sealed. Glass -mat is utilized acid is trapped inside .It is leak proof and refilling is no needed.
- High power -to-weightratio –Aoguan batteries can provide much power in comparison to its Weight
- No Memory Effect. - Some batteries say nickel –cadmium batteries. It will become conditioned to provide less power after repetitious short usage /discharge.
- Low self discharge –the self –discharge rate for HENDA SLA. Battery is about 2-3% per month at room temperature compared with 20-30% for other common battery systems.
- Longer service life–utilized thick and massive calcium grate ensure that HENDA SLA battery has a longer service life
- High discharge rate -since the internal resistance is low, the battery can provide high rate of discharge
- Wide operation temperature range– battery capacity is rated at 20 °C, and will operate from -20°Cto + 60°C when it is fully charged. Ambient temperature is 20°C, service life will be more efficient under 15°C to 25°C.
- Easy of shipment- It is classified as non- dangerous goods and is acceptable to be shipped on passenger and cargo
APPLICATIONS
UPS power supply, communication system,auto control system, electrical power system and etc.Product features:Floating charge in this design here lasts for over 12 years.">New alloy recipe sheeting is adopted here with anticorrosion and steady performance Reasonable ratio of electrolyte slows down the corrosion of the recipe, sheeting and prolongs the life service of the battery
PARAMETERS
| No. | Model | Rated Voltage V |
Rated Capacity |
Dimensions(±2mm) | Weight KG |
Connection | |||
| Length | Width | Height | Total Height | ||||||
| 1 | 6GFMJ-24 | 12 | 24AH | 204 | 165 | 175 | 175 | 12.00 | Terminal |
| 2 | 6GFMJ-38 | 12 | 38AH | 204 | 165 | 175 | 175 | 12.70 | Terminal |
| 3 | 6GFMJ-50 | 12 | 50AH | 270 | 165 | 169 | 169 | 14.80 | Terminal |

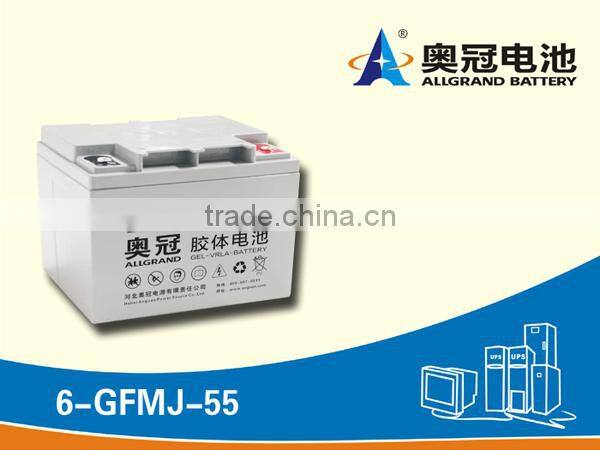

| 4 | 6GFMJ-55 | 12 | 55AH | 270 | 165 | 169 | 169 | 16.50 | Terminal |
| 5 | 6GFMJ-60 | 12 | 60AH | 351 | 170 | 179 | 179 | 18.90 | Terminal |
| 6 | 6GFMJ-65 | 12 | 65AH | 351 | 170 | 179 | 179 | 20.40 | Terminal |
| 7 | 6GFMJ-75 | 12 | 75AH | 338 | 172 | 215 | 218 | 23.20 | Terminal |
| 8 | 6GFMJ-80 | 12 | 80AH | 338 | 172 | 215 | 218 | 24.00 | Terminal |
| 9 | 6GFMJ-90 | 12 | 90AH | 338 | 172 | 215 | 218 | 27.20 | Terminal |
| 10 | 6GFMJ-100 | 12 | 100AH | 338 | 172 | 215 | 218 | 31.50 | Terminal |
| 11 | 6GFMJ-120 | 12 | 120AH | 413 | 174 | 210 | 212 | 36.50 | Terminal |
| 12 | 6GFMJ-135 | 12 | 135AH | 483 | 170 | 238 | 238 | 40.70 | Terminal |
| 13 | 6GFMJ-150 | 12 | 150AH | 483 | 170 | 238 | 238 | 43.40 | Terminal |
| 14 | 6GFMJ-180 | 12 | 180AH | 523 | 240 | 220 | 220 | 57.90 | Terminal |
| 15 | 6GFMJ-200 | 12 | 200AH | 523 | 240 | 220 | 220 | 60.00 | Terminal |
| 16 | 6GFMJ-230 | 12 | 230AH | 523 | 240 | 220 | 220 | 62.00 | Terminal |
CERTIFICATIONS
