Specifications
1.46 models from 2V200ah,2. 2V1000Ah UPS battery
3. AGM battery
4. SGS factory inspection report
5. Design life 8 yea
UPS battery2V1000ah
FEATURES
Maintenance-Free Operation
Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance. During the expected float service life of batteries, no need to check the specific gravity of the electrolyte or add water.
Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
Long Service Life
A unique corrosion-resistant grid alloy ensures batteries have long service life.
Low Self Discharge
Using high purity raw materials ensures batteries have less self-discharge.
Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate
PARAMETERS
| No. | Model | Rated Voltage V |
Rated Capacity |
Dimensions(±2mm) | Weight KG |
Connection | |||
| Length | Width | Height | Total Height | ||||||
| 1 | 6GFMJ-24 | 12 | 24AH | 204 | 165 | 175 | 175 | 12.00 | Terminal |
| 2 | 6GFMJ-38 | 12 | 38AH | 204 | 165 | 175 | 175 | 12.70 | Terminal |
| 3 | 6GFMJ-50 | 12 | 50AH | 270 | 165 | 169 | 169 | 14.80 | Terminal |
| 4 | 6GFMJ-55 | 12 | 55AH | 270 | 165 | 169 | 169 | 16.50 | Terminal |
| 5 | 6GFMJ-60 | 12 | 60AH | 351 | 170 | 179 | 179 | 18.90 | Terminal |
| 6 | 6GFMJ-65 | 12 | 65AH | 351 | 170 | 179 | 179 | 20.40 | Terminal |
| 7 | 6GFMJ-75 | 12 | 75AH | 338 | 172 | 215 | 218 | 23.20 | Terminal |
| 8 | 6GFMJ-80 | 12 | 80AH | 338 | 172 | 215 | 218 | 24.00 | Terminal |
| 9 | 6GFMJ-90 | 12 | 90AH | 338 | 172 | 215 | 218 | 27.20 | Terminal |
| 10 | 6GFMJ-100 | 12 | 100AH | 338 | 172 | 215 | 218 | 31.50 | Terminal |
| 11 | 6GFMJ-120 | 12 | 120AH | 413 | 174 | 210 | 212 | 36.50 | Terminal |
| 12 | 6GFMJ-135 | 12 | 135AH | 483 | 170 | 238 | 238 | 40.70 | Terminal |
| 13 | 6GFMJ-150 | 12 | 150AH | 483 | 170 | 238 | 238 | 43.40 | Terminal |
| 14 | 6GFMJ-180 | 12 | 180AH | 523 | 240 | 220 | 220 | 57.90 | Terminal |
| 15 | 6GFMJ-200 | 12 | 200AH | 523 | 240 | 220 | 220 | 60.00 | Terminal |
| 16 | 6GFMJ-230 | 12 | 230AH | 523 | 240 | 220 | 220 | 62.00 | Terminal |
| 17 | CNFJ-200 | 2 | 200AH | 169 | 105 | 330 | 360 | 13.00 | Terminal |

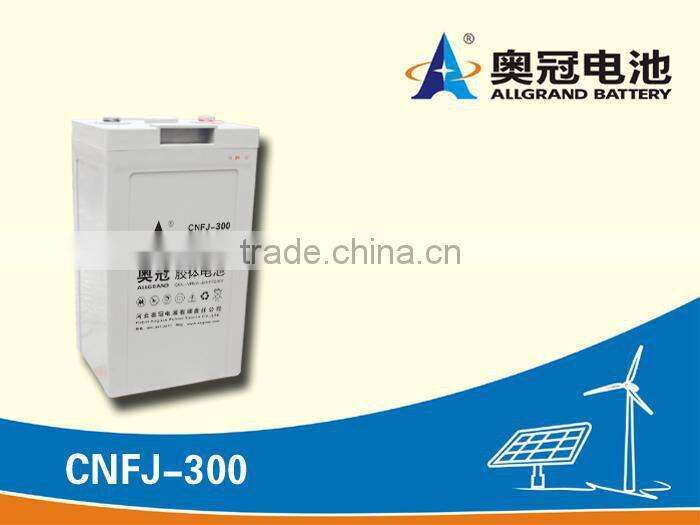

| 18 | CNFJ-300 | 2 | 300AH | 171 | 151 | 330 | 360 | 19.50 | Terminal |

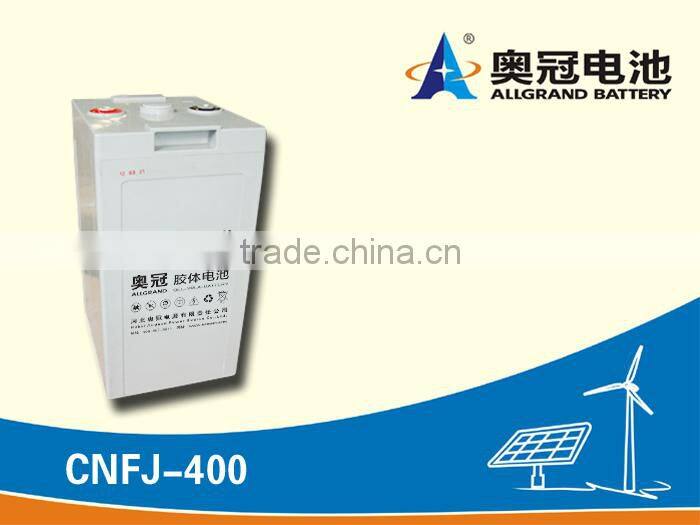

| 19 | CNFJ-400 | 2 | 400AH | 211 | 172 | 330 | 360 | 25.50 | Terminal |

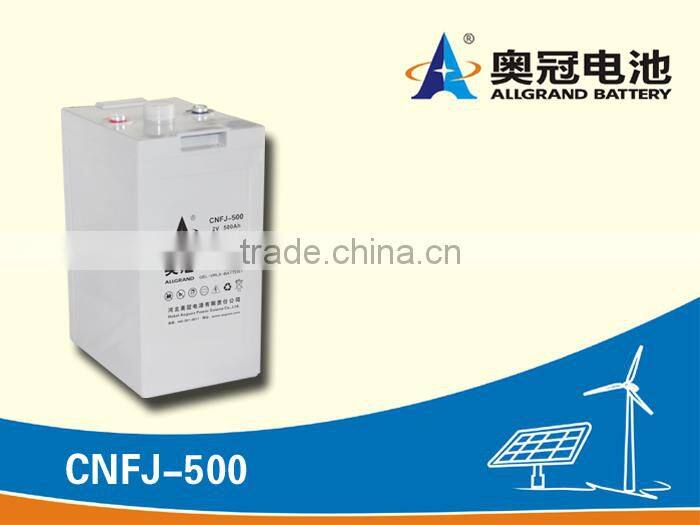

| 20 | CNFJ-500 | 2 | 500AH | 241 | 172 | 330 | 360 | 32.00 | Terminal |

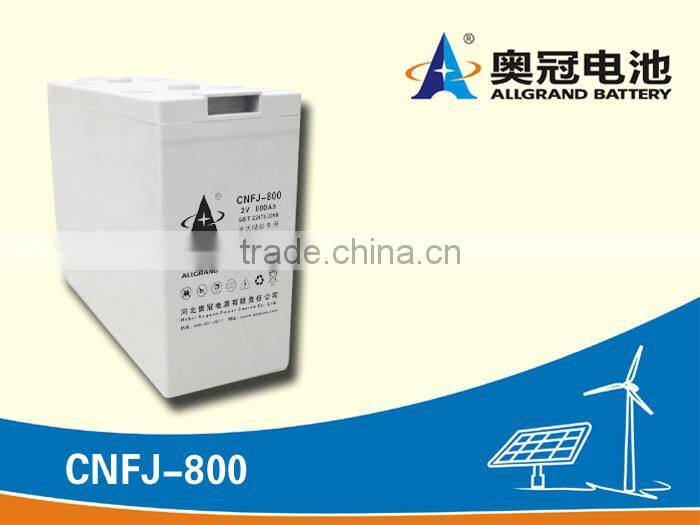

| 21 | CNFJ-800 | 2 | 800AH | 410 | 176 | 330 | 360 | 51.00 | Terminal |
| 22 | CNFJ-1000 | 2 | 1000AH | 475 | 175 | 330 | 360 | 62.50 | Terminal |
| 23 | CNFJ-2000 | 2 | 2000AH | 491 | 351 | 330 | 360 | 124.00 | Terminal |
APPLICATIONS
- UPS power supply, communication system,auto control system, electrical power system and etc.Product features:Floating charge in this design here lasts for over 12 years.">New alloy recipe sheeting is adopted here with anticorrosion and steady performance Reasonable ratio of electrolyte slows down the corrosion of the recipe, sheeting and prolongs the life service of the battery
Use and maintenance
Please use constant-voltage charge.
In floating charge, the voltage is 2.23 to 2.27 per unit cell.In cycle use,
the voltage is 2.35 to 2.45 per unit cell,the max.current is no more than 25%C
Please do tighten the bolts to avoid sparkle and poor contact when the battery is in use
Please do not use it near the heat source and open flame
Please keep it at low temperature.Please change it while there is liquid leaking or damage
