UPS standby power battery / UPS battery 12V120ah

Specifications

1. Long life 12v 120ah Maintenance free solar battery
2. Low self-discharge
3. Maintenance free
4.High Safety
5. Sealed

UPS standby power battery / UPS battery 12V120ah





FEATURES



Long Shelf Life

A low self-discharge rate, up to approximately 3% per month, may allow storage of fully charged batteries for up to a year, depending on storage temperatures, before charging becomes critical.



Deep Discharge Recovery

Special separators, advanced plate composition and a carefully balanced electrolyte system ensure that the battery has the ability to recover from excessively deep discharge.



Low Pressure Valve Regulators

All batteries feature a series of low pressure one-way relief valves. These valves safely release any excessive accumulation of gas inside the battery and then reseal.



High Discharge Rate

Low internal resistance allows discharge currents of up to ten times the rated capacity of the battery. Relatively small batteries may thus be specified in applications requiring high peak currents.



Wide Operating Temperature Range

batteries may be discharged over a temperature range of -40°C to +60°C (-40°F to + 140°F) and charged at temperatures ranging from -20°C to +50°C (-4°F to +122°F).



Rugged Construction

The high impact resistant battery case is made of nonconductive ABS plastic. The case materials impart great resistance to shock, vibration, chemicals and heat. Flame Retardant (FR) battery cases and lids are available where the end application dictates.



Long Service Life

Have a design life of up to 8 years in standby applications. In cyclical applications up to 1,000 charge/discharge cycles can be expected depending on average depth of discharge.













APPLICATIONS



UPS power supply, communication system,auto control system, electrical power system and etc.Product features:Floating charge in this design here lasts for over 12 years.">New alloy recipe sheeting is adopted here with anticorrosion and steady performance Reasonable ratio of electrolyte slows down the corrosion of the recipe, sheeting and prolongs the life service of the battery









PARAMETERS



No.	Model	Rated Voltage V	Rated Capacity	Dimensions(±2mm)				Weight KG	Connection
				Length	Width	Height	Total Height
1	6GFMJ-24	12	24AH	204	165	175	175	12.00	Terminal
2	6GFMJ-38	12	38AH	204	165	175	175	12.70	Terminal
3	6GFMJ-50	12	50AH	270	165	169	169	14.80	Terminal
4	6GFMJ-55	12	55AH	270	165	169	169	16.50	Terminal
5	6GFMJ-60	12	60AH	351	170	179	179	18.90	Terminal
6	6GFMJ-65	12	65AH	351	170	179	179	20.40	Terminal
7	6GFMJ-75	12	75AH	338	172	215	218	23.20	Terminal
8	6GFMJ-80	12	80AH	338	172	215	218	24.00	Terminal
9	6GFMJ-90	12	90AH	338	172	215	218	27.20	Terminal
10	6GFMJ-100	12	100AH	338	172	215	218	31.50	Terminal
11	6GFMJ-120	12	120AH	413	174	210	212	36.50	Terminal
12	6GFMJ-135	12	135AH	483	170	238	238	40.70	Terminal
13	6GFMJ-150	12	150AH	483	170	238	238	43.40	Terminal

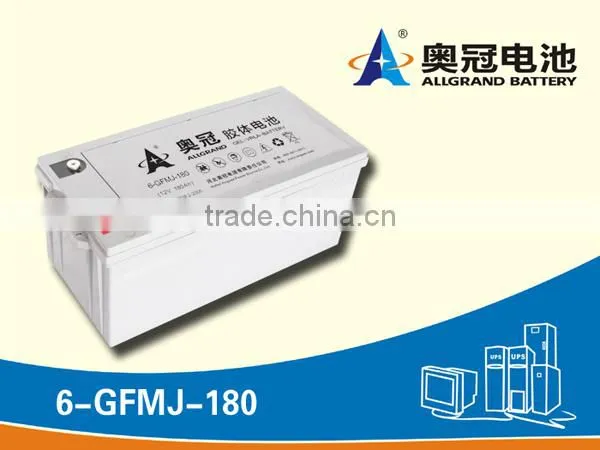

14	6GFMJ-180	12	180AH	523	240	220	220	57.90	Terminal

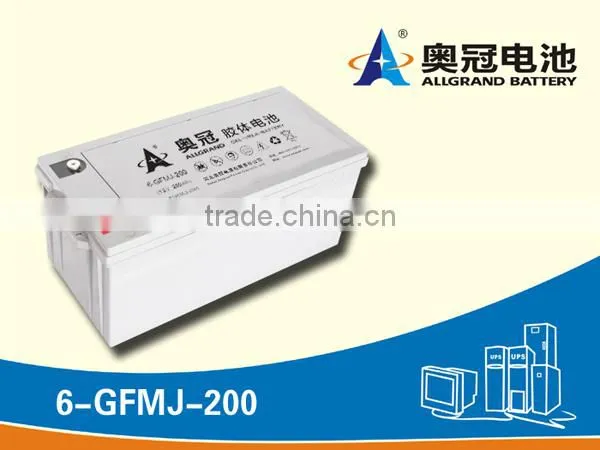

15	6GFMJ-200	12	200AH	523	240	220	220	60.00	Terminal
16	6GFMJ-230	12	230AH	523	240	220	220	62.00	Terminal
