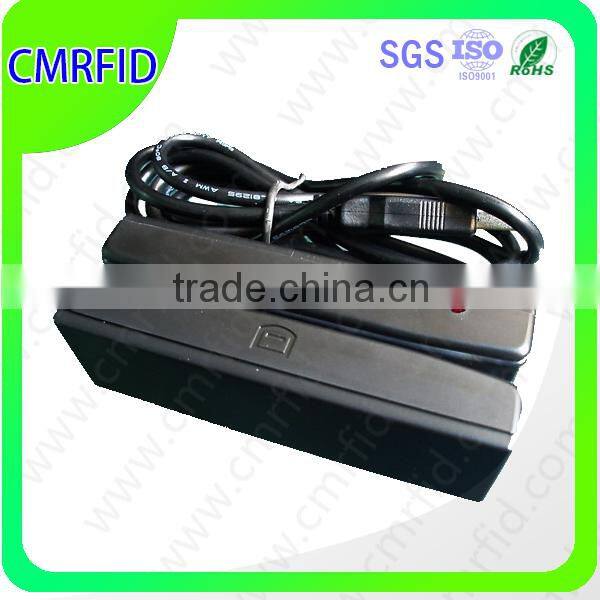

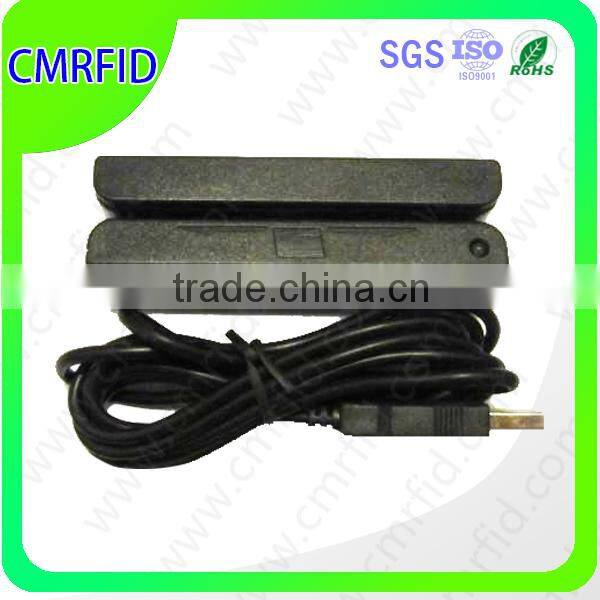

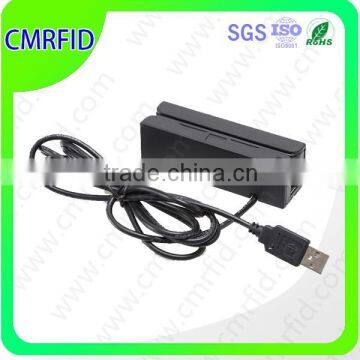

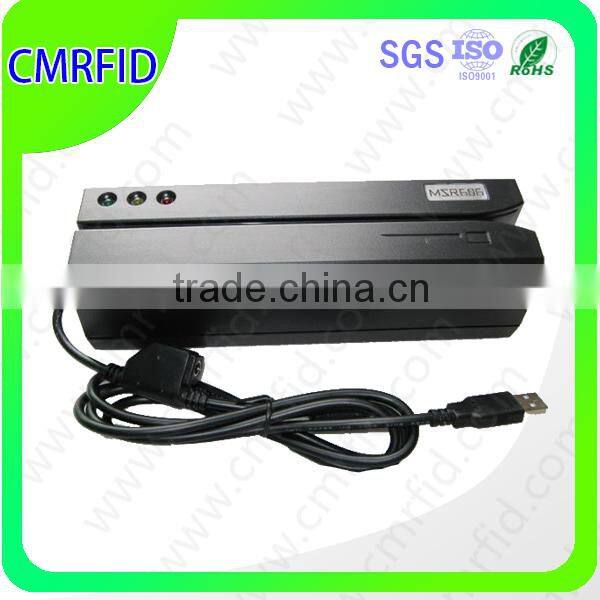

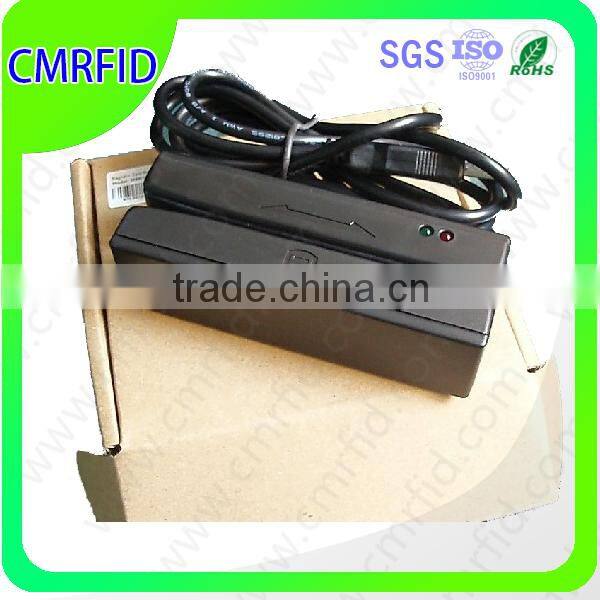

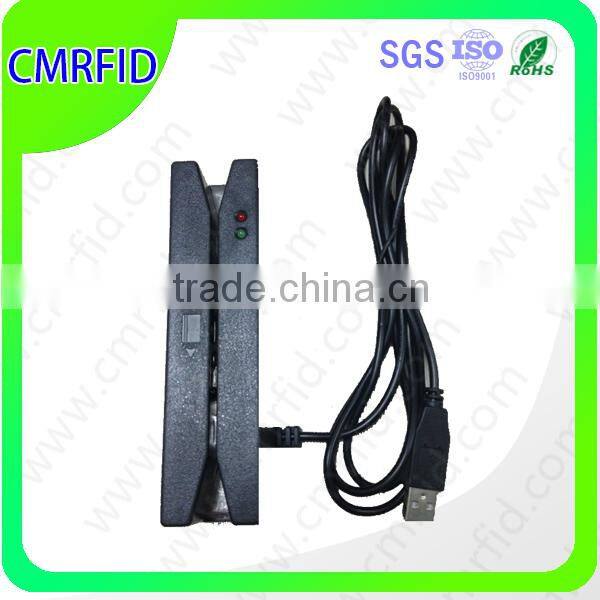

USB Interface hico 2750oe magnetic stripe card reader

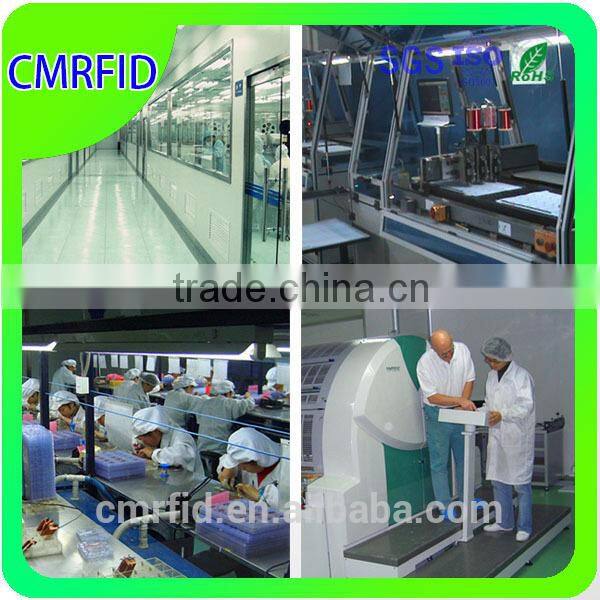

When the plastic card industry was started in mainland China 16 years ago, C&M had been at the forefront. In 1994, we began by producing plastic magnetic cards. Then our products were upgraded to smart cards, contactless cards and RFID products with the growing of this industry.
Founded in December 2007 by C&M group,CM has become the top compatible printing supplies in the world, With the sales total to 60 million usd one year.
Low power consumption, compact design
Hi-co reader
Single tack/Dual tack/Triple track read and write
Support read ASCII passbook
Customized interface
Function | |
Interface |
RS232/USB |
Operation speed |
10-150 cm/sec, Read; 10-100CM/SEC, Write |
Error rate |
Less than 0.5%(JSE test card) |
Operation place |
Indoor |
Track width |
1.5mm |
Head life |
At least 500,000 times |
Identify efficiency |
Above 99.5% |
Card | |
Card standard |
ISO 7811/2 |
Track |
I(IATA), II (ABA), III (MINTS) |
Track location |
ISO1 (IATA), ISO2 (ABA), ISO3 (MINTS) |
Recording density |
210 BPI, 75 BPI, 210 BPI |
Record character |
79, 40, 107 |
Card thickness |
0.76 ± 0.08 mm |
Track width |
1.5mm |
Power | |
Voltage |
+5 V DC ± 5% |
|
Current
|
Read: <100mA; Write: <100mA (Lo-co), <700mA (2750oe, dual tracks), <2.0A (4000oe, triple tracks) |
Environment | |
Operate temperature and humidity |
-10°C~50°C, 20~90% RH |
Storage temperature and humidity |
-30°C~70°C, Less than 95% RH |
Physical characteristics | |
Dimension |
37mm(W) x 90mm(L) x 28mm(H) |
Weight |
Approx. 1~1.5kg |
Shipping:We ship the goods by express company like DHL, UPS, EMS, FedEx, etc
Services for 24 hours
