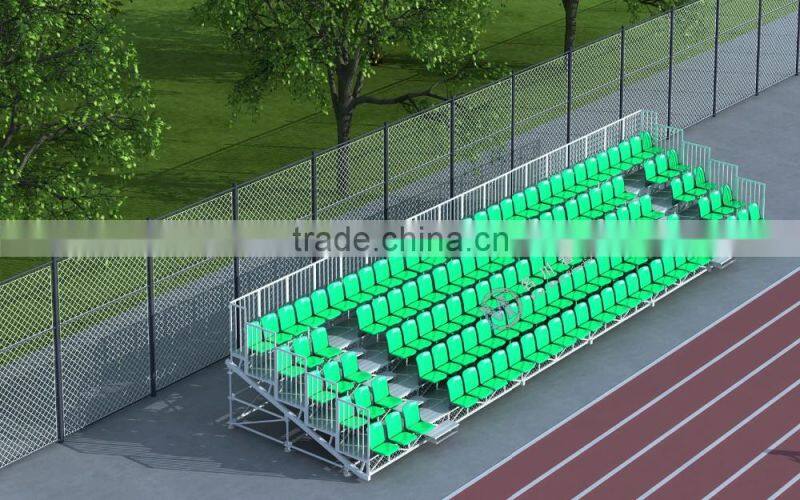

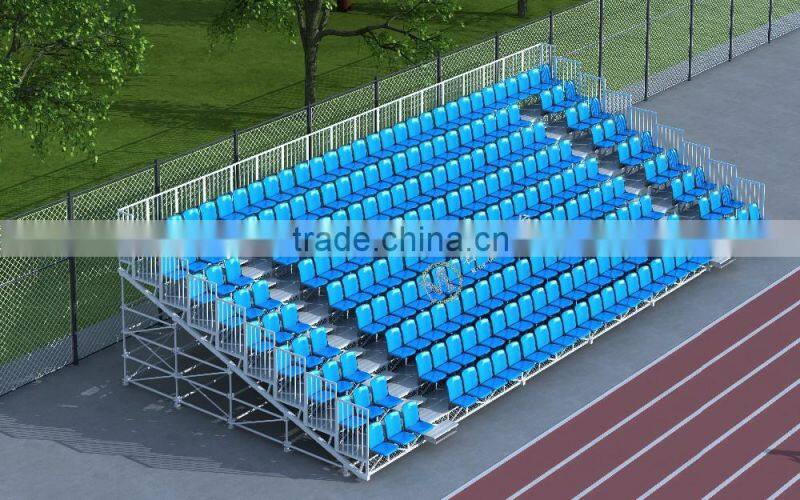

Help CenterMC-TG04 Outdoor Metal Structrualbleacher System Demountable Tribune
Related Products
-
MC-TG04 Outdoor Metal Bleacher Temporary Grandstand for RentUS$ 60 - 100MOQ: 50 Sets -
MC-TG04 Outdoor Metal Scarffolding Bleacher ,grandstand,gradas for Stadium,arena,sports CenterUS$ 60 - 100MOQ: 50 Sets
-
MC-TG02 Event Scaffolding Material Bleachers Outdoor Demountable Bleacher for Sports,exhibition,concert Quality Choice Most PopularUS$ 60 - 100MOQ: 50 Sets
-
Customized Scaffolding Outdoor Used BleachersUS$ 60 - 100MOQ: 50 Sets
-
MC-TGR02 2015 Aluminum Dismountable Scaffolding GrandstandUS$ 60 - 100MOQ: 50 Sets
Specification And Advantage | |

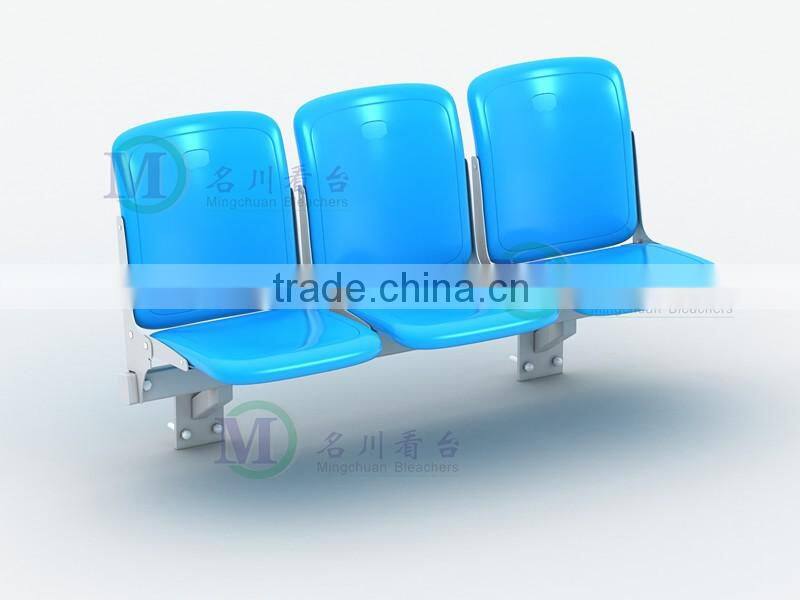

seating material | HDPE and blowing mold craft folding chair, it is comfort high-density, anti aging ,weather resistant,V-0 flame resistant , alkali resistant , antistatic ,wear resistant, hydrophobic fraction and color stability. |

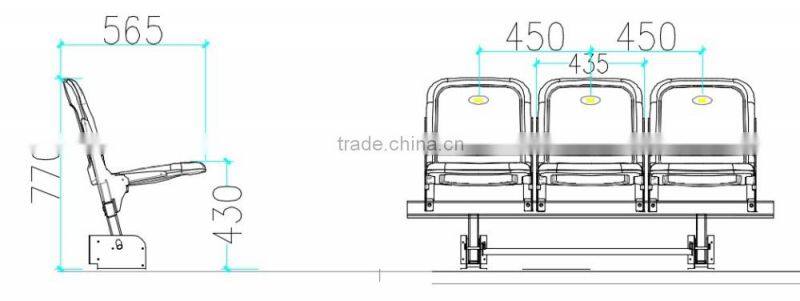

Seat size | 435mm*565mm*770mm |
Bleacher size | The riser height is 300mm-400mm,step width is750mm-1000mm |
Bleacher material | Structure: hot-galvanized steel |

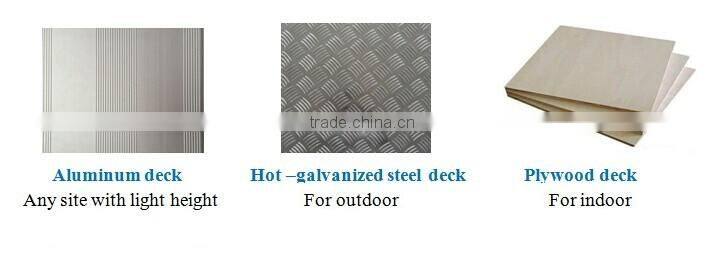

Deck: aluminum (6063-T5) coat with anodized ,hot- galvanized steel and plywood | |
Railing : hot-galvanized steel | |
Design load | Live load :5 KN/ m2 |
Dead load:0.25 KN/ m2 | |
Surface | Hot-galvanized |
Flexible | It can be built in lawn ,cement floor ,sand ,slope ground. |
High efficiency | It is saving time to riding and dismantling bleacher, especially for a variety of platforms to build infrastructure, 4-8 times faster than ordinary removable bleacher. |
Multifunction | Provide several ways to build this bleacher. Using for sports game event Activities and so on |
Easy to regulate | There is fixed ring plate in the standard which fixed a portable ring plate to regulate the distance of ledger. |
Anti-corrosion | The surface of structure with hot- galvanized to avoid rust and corrosion. |
No scattered parts | No scattered parts to transportation and storage to avoid losing and easy to build . |

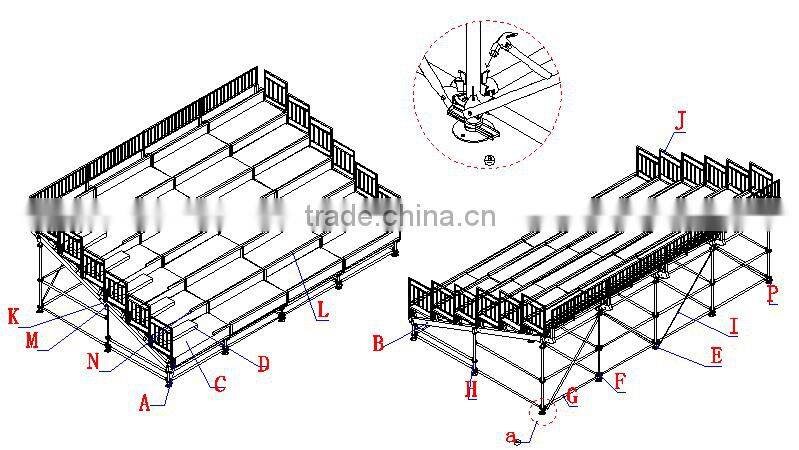

No. | Names | Material specifications | No. | Names | Material specifications |
A | Deck support | 40*40*2.5 square pipe 45*60*5 angle bar | I | Diagonal | 32*2aquare pipe extruded joint |
B | Deck support | 150*75*3square pipe 60*60*2.5square pipe | J | Railing | ∅28*2∅25*2square pipe |
C | Deck | 2mm iron plate(extruded) | K | Wedge | ∅15*100 |
D | Step | 40*20saquare pipe 2mm iron plate | L | Seating frame | 40*60*2square pipe crossing |
E | Adjustable jack | HT250 adjustable nut 45#∅38screw 5MM bottom-bolt | M | Wedge | ∅20*100 |
F | Ring plate | ∅130*5mm extruded | N | 38*58 plug | plastic |
G | Ledger | ∅48*3square pipe extruded joint | O | fixedbolt | ∅10*80 expansion screw |
H | Wedge | 115*30mm(extruded) |
|
|
|
Q: Are you the manufacture or trading company? Which certification do you have?
A: We are the professional manufacturer and 5 years in this industry.
We have got CE, SGS, and TUV certification.
Q: What’s the MOQ, delivery time, shipping terms and payment terms?
A: We can accept LCL and FCL; the first trial order qty can depend on your request.
Delivery date should be 20-40 days. Shipping term normally we use FOB Jiujiang, we can
discuss and quote if you want FOB shanghai. Payment term is 30% T/T and 70% after
inspection before shipment.
Q: Do you have any finished project case? And can you provide the CAD drawing?
A: 2009 Tajikistan national sports centre 25000 sets Capricorn blow moulded stadium seat floor mounted
2010 Yemen's national stadium 26840 sets Aries blow moulded stadium seat lie flat
2010 Bangladesh national stadium 60000 sets Aries blow moulded stadium seat lie flat
2011 Cape Verde national sports centre 15102 sets Virgo blow moulded stadium seat wall mounted
2012 India's harry province stadium 13177sets Aries blow moulded stadium seat lie flat
2013 Indonesia's stadium 14000sets Virgo blow moulded stadium seat wall mounted
2014 Pyongyang in the national stadium 122650sets Virgo blow moulded stadium seat lie flat
Q: how about the warranty details?
A: Our warranty period is 5 years. During the warranty period, for non-artificial damage, we promise the replacement including the spare parts. For artificial damage, we only charge the material cost.
