Help CenterCelebration Safety Retractasble Seating Flex Grandstand Aluminum Guide Rail
Related Products
-
Telescopic Platform Retractable Seating Telescopic Frame StandUS$ 80 - 200MOQ: 200 Sets -
Celebrationtelescopic Seating System With Guard Rail Selent Telescopic Seating Telescopic Platform Retractable SeatingUS$ 80 - 200MOQ: 200 Sets
-
Flexibility Telescopic Frame Stand Seating Telescopic Seating CushionUS$ 80 - 200MOQ: 50 Sets
-
Fire Wear-resisting Retractasble VIP Fold Seat Flex Grandstand Portable BleacherUS$ 80 - 200MOQ: 200 Sets
-
Mercury Safety Telescopic Bleacher HDPE Seating Retractable BleacherUS$ 60 - 120MOQ: 200 Sets

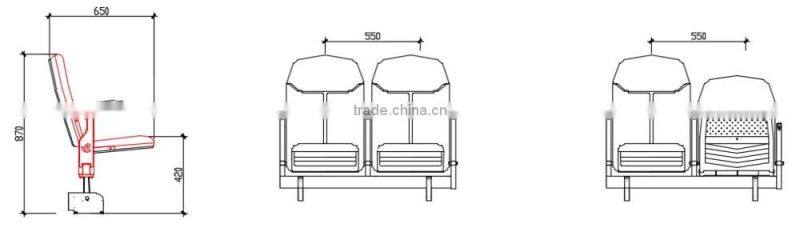

| Seat size
| Back height.................................................................... .. 650 mm Back depth ...................................................................... 650 mm Seat width...........................................................................470mm Seat length (From the middle to another middle)................550mm |
|---|---|
| Seat material | Advanced composite flame textile retardant fabric |
| Stanchion | Adapt to quality steel molding and aluminum die casting stanchion |
| Folding | Two independent and close hinge system with permanent lube inside |
| Bleacher size | The riser height is 250mm-350mm,step width is 650mm-850mm |
| Design load | Expecting bleacher itself weight,the loading ability reach to 488kg/ m2 and vertical sway loads is 146kg/ m2 ,the horizontal sway loads is 360kg/ m2 |
| Surface of components | Anodized and ponder coating for 200um /m2 |
| Electric drive system | Manual and semi-automatic |

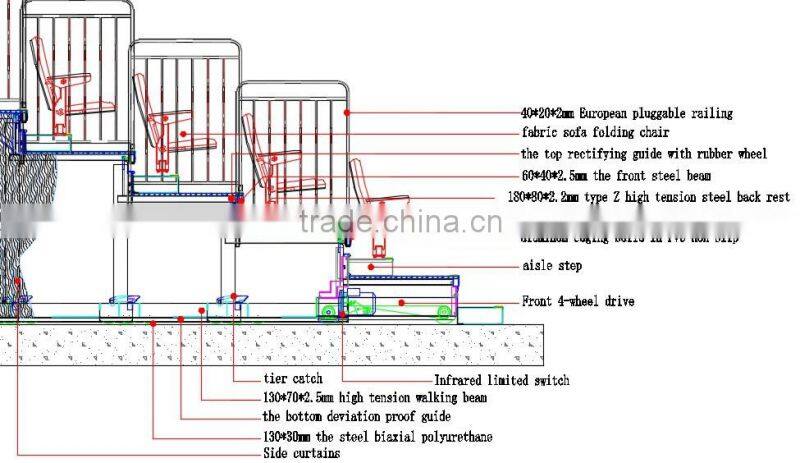

Technology
1 Stretch limit
The inhibiting catch will main circuit on-off switch to avoid the system keeping moving forward to damage the equipment.
2 Sound-light alarm
It fixes the Sound-light alarm system to remind the related person to be careful.
3 Infrared ray system.
For the Infrared ray system to alarm and avoid the foreign matter during the bleacher on- off. Telescopic bleacher technology description for safety and structure.
Q: Are you the manufacture or trading company? Which certification do you have?
A: We are the professional manufacturer and 5 years in this industry.
We have got CE, SGS, and TUV certification.
Q: What’s the MOQ, delivery time, shipping terms and payment terms?
A: We can accept LCL and FCL; the first trial order qty can depend on your request.
Delivery date should be 20-40 days. Shipping term normally we use FOB Jiujiang, we can
discuss and quote if you want FOB shanghai. Payment term is 30% T/T and 70% after
inspection before shipment.
Q: Do you have any finished project case? And can you provide the CAD drawing?
A: 2009 Tajikistan national sports centre 25000 sets Capricorn blow moulded stadium seat floor mounted
2010 Yemen's national stadium 26840 sets Aries blow moulded stadium seat lie flat
2010 Bangladesh national stadium 60000 sets Aries blow moulded stadium seat lie flat
2011 Cape Verde national sports centre 15102 sets Virgo blow moulded stadium seat wall mounted
2012 India's harry province stadium 13177sets Aries blow moulded stadium seat lie flat
2013 Indonesia's stadium 14000sets Virgo blow moulded stadium seat wall mounted
2014 Pyongyang in the national stadium 122650sets Virgo blow moulded stadium seat lie flat
Q: how about the warranty details?
A: Our warranty period is 5 years. During the warranty period, for non-artificial damage, we promise the replacement including the spare parts. For artificial damage, we only charge the material cost.
