Help CenterUltrasonic Ribbon Cutting Machine for V Shape, Round Shape, T Shape
Related Products
-
Ultrasonic Elastic Cutting MachineUS$ 5,500 - 7,000MOQ: 1 Set -
2016 Ultrasonic Rotary Cutting Machine of Huitong BrandUS$ 6,000 - 9,000MOQ: 1 Set
-
2016 Ultrasonic Cutting Machine of Huitong BrandUS$ 6,000 - 9,000MOQ: 1 Set
-
Ultrasonic Elastic Cutting MachineUS$ 6,000 - 9,000MOQ: 1 Set
-
Automatic Ultrasonic Fabric Cutting MachineUS$ 6,000 - 9,000MOQ: 1 Set
Dongguan Huitong located in the world manufacturing city along the East Village, Wanjiang Dongguan City, Guangdong Province, the location west Ring Road, east of State Road 107 and convenient transportation. From 2000 to begin production of ultrasound equipment disposable medical supplies. After ten years of technology development and practice, it has now become a professional manufacturer of ultrasound technology applications in Asia Pacific. It is an independent research and development, manufacturing capability and batch-scale production of specialized enterprises.
The major products are: ultrasonic medical mask manufacturing equipment, industrial masks manufacturing equipment, ultrasonic disposable supplies manufacturing equipment, ultrasound equipment and textile and apparel applications ultrasonic non-woven products of non-standard equipment development and manufacturing. The company with years of technical experience to provide customers with standard and non-standard automation equipment manufacturing technology. Sophisticated machinery and equipment, strong technical force, stable quality, customer trust and praise at home and abroad!

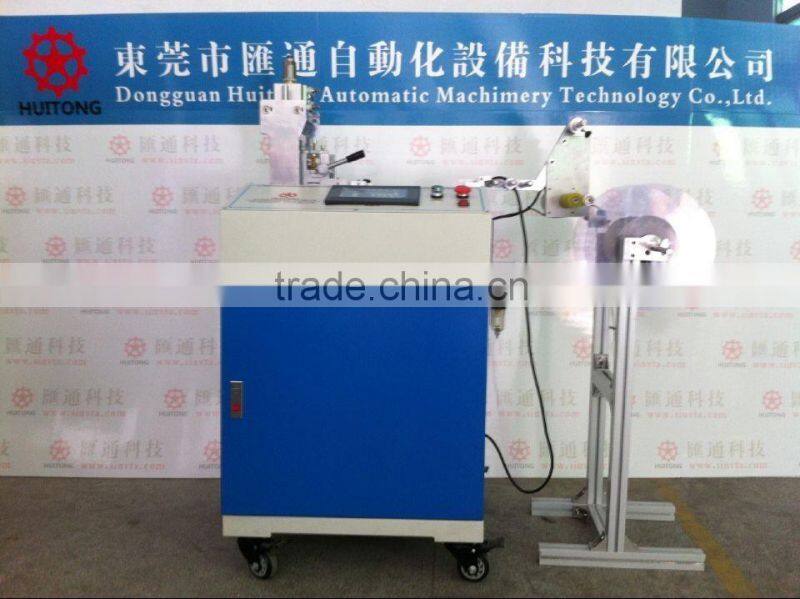

Dongguan Huitong Ultrasonic cutting machine
Ultrasound Cutting Machine
Machine Introduction:
The machine is using the principle of ultrasonic vibration friction moment generate heat, mold or knife in the cylinder under the pressure of the contact surface of ultrasonic vibration, so as to cut off the effect. Widely used in clothing, gifts, packaging, ribbon cutting and other industries, such as all kinds of ribbon, nylon belt, ribbon, gifts, anti-theft tag chip, etc.
Machine Features:
1.Cut off the shape diversity, straight blade and dovetail, trapezoidal and rectangular and flat quadrilateral, circular arc form, etc
2. Cut off the surface smooth, soft, beautiful, no burrs.
3.Automatic operation, need to set length and quantity, automatic cutting, automatic feeding, lack is automatically suspended.
4. Adopt ultrasonic high-frequency vibration of high speed cutting, and can be more than shear at the same time.
5.Configurable photoelectric sensors, high precision location and tracking.
Specifications:
MODEL NO. |
OUTPUT POWER |
Ultrasonic Frequency |
WEB WIDTH |
WORK SPEED |
POWER SUPPLY |
AIR PRESSURE |
WEIGHT |
(MM) DIMENSIONS |
HT-JZD54 |
2000W |
20KHz |
80mm |
160Pcs/min |
50/60Hz AC220V |
6Kg/CM2 |
120KG |
1000Lx650Wx1300 |
Specifications are subject to change for product improvement.
Finished samples:

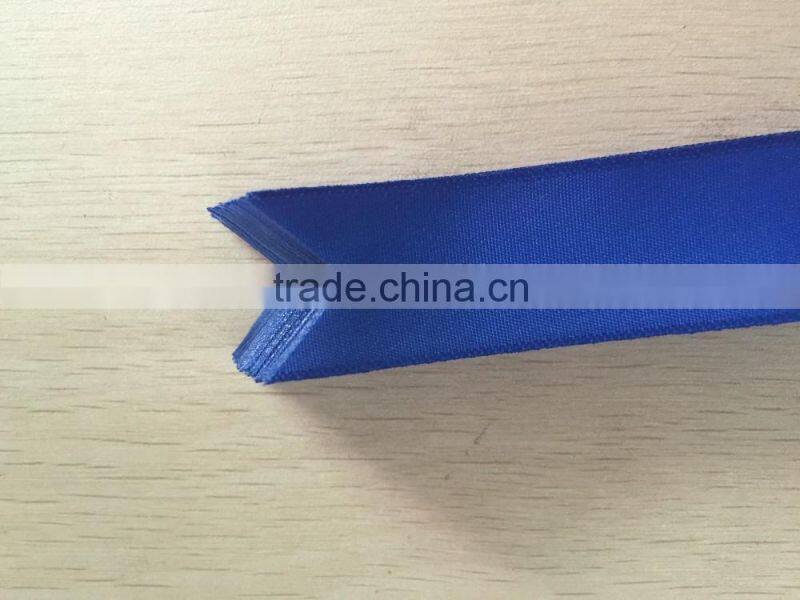

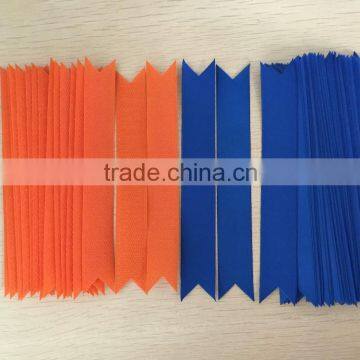

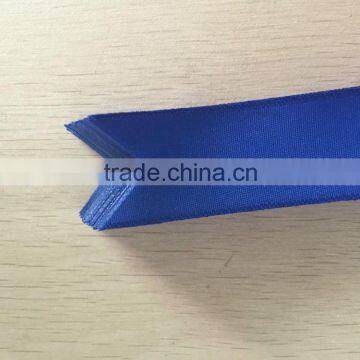

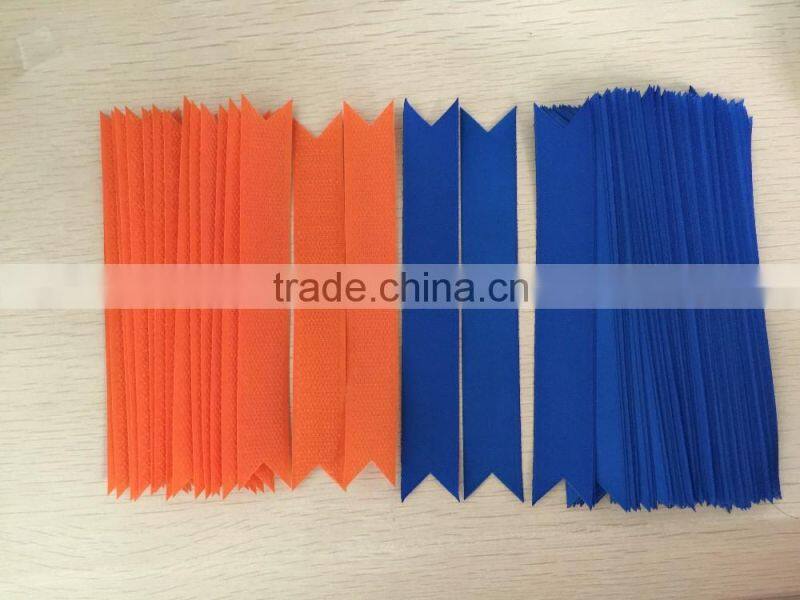

1) Bullet V-shaped cut samples:

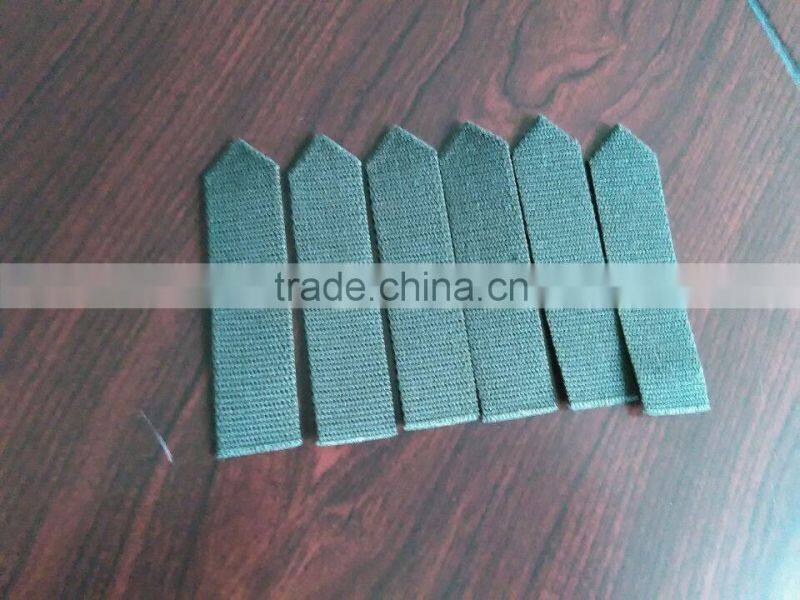

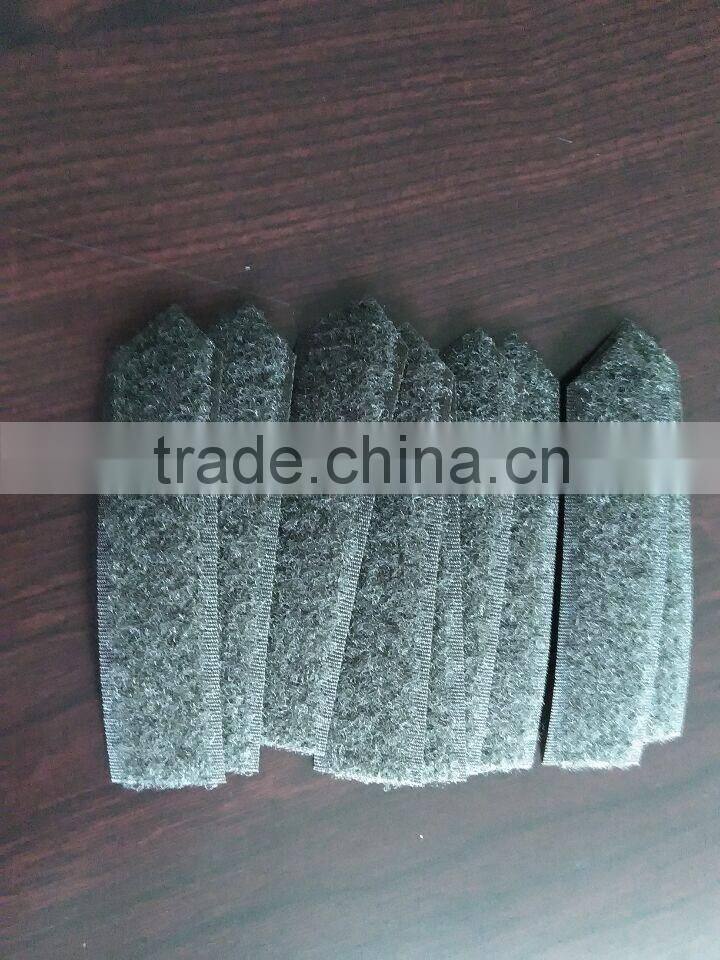

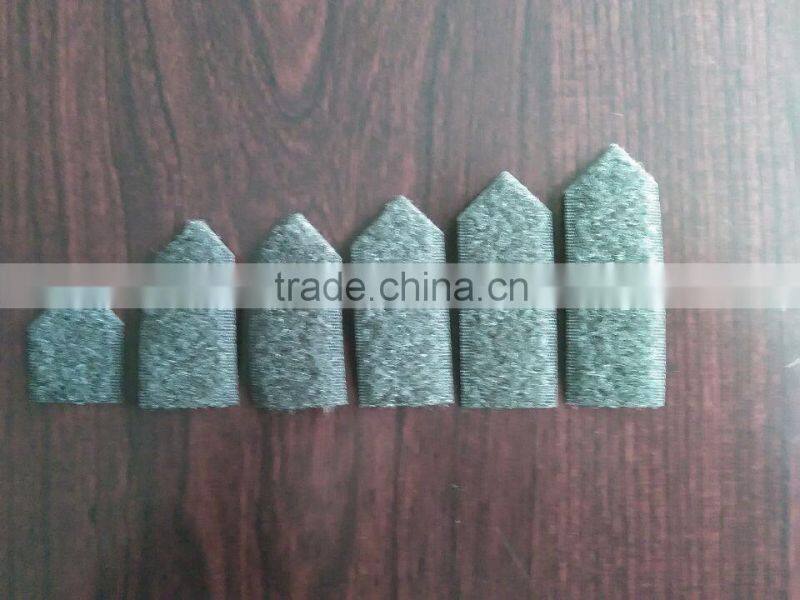

2) Epaulet HOOk&LOOP cut smaples

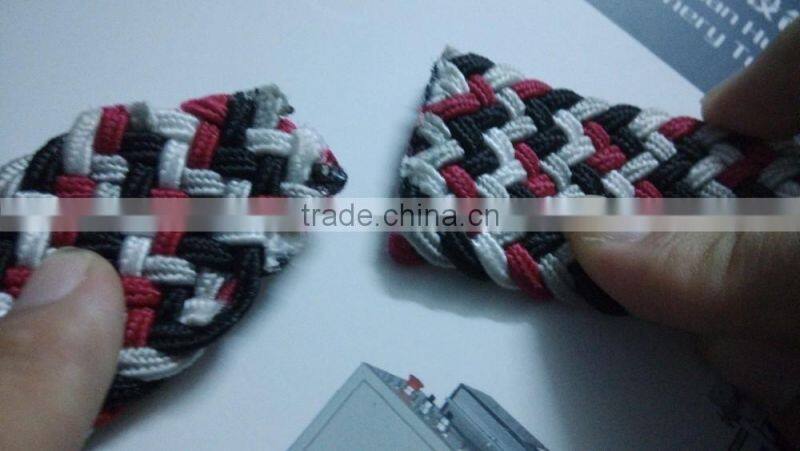

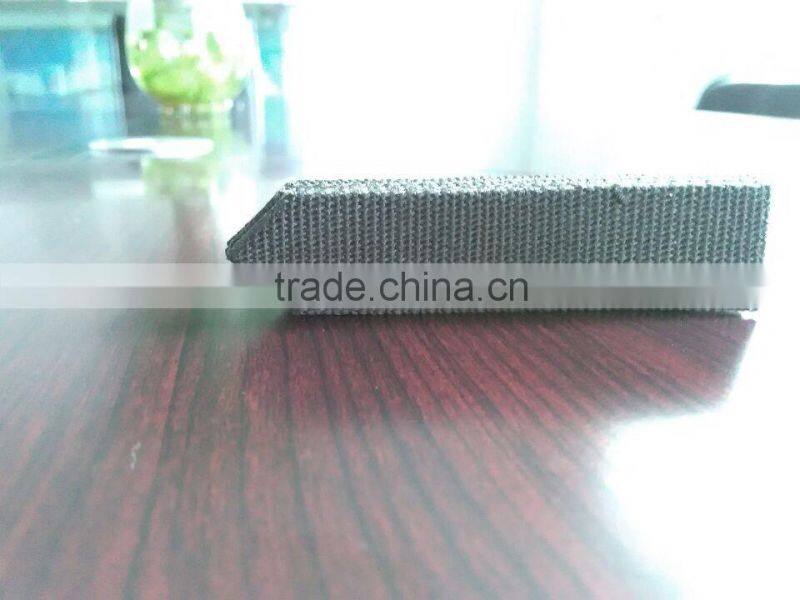

3) Belt cut sample:

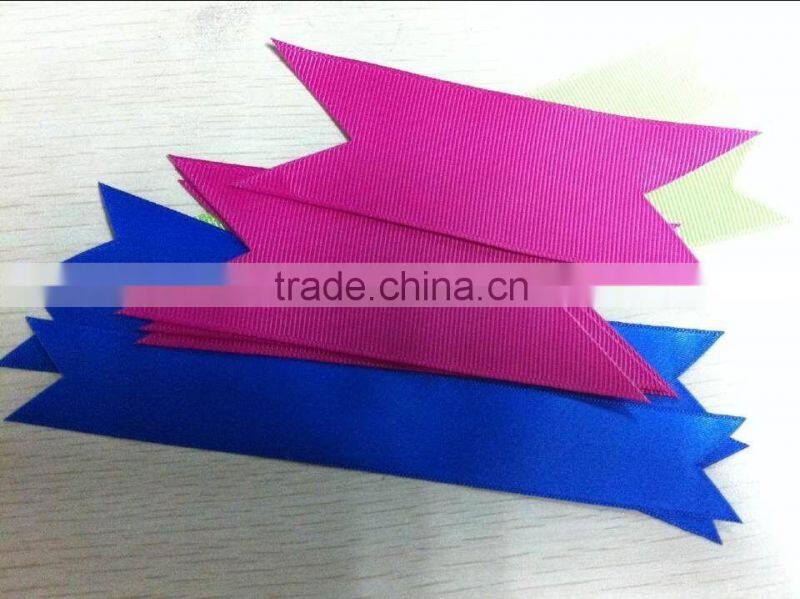

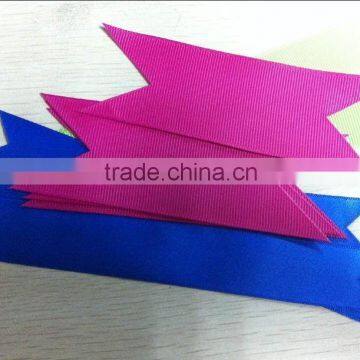

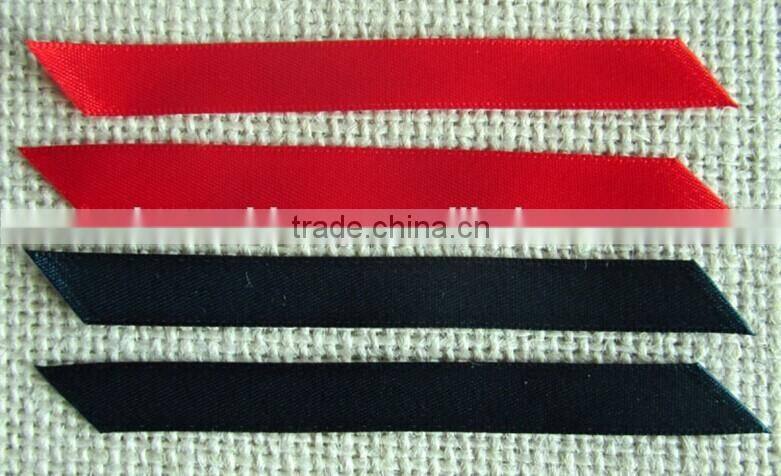

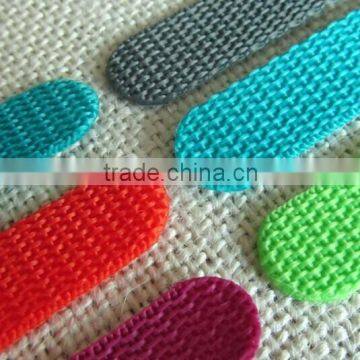

4) Ribbon cut samples:

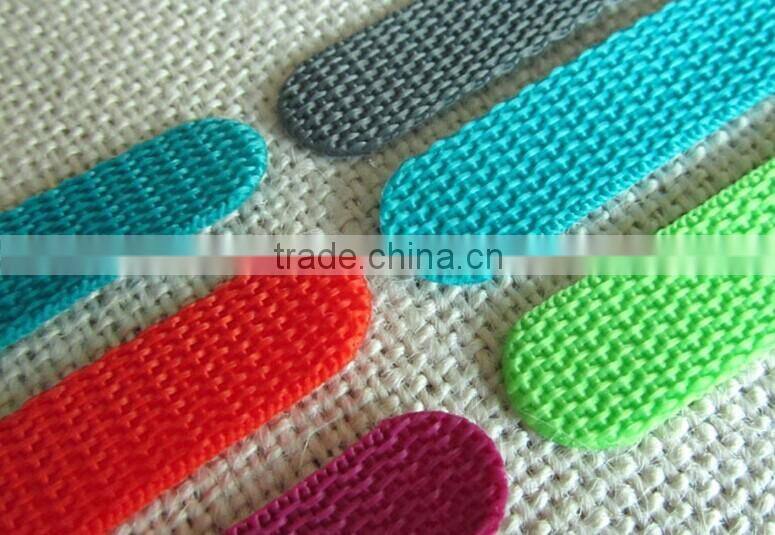

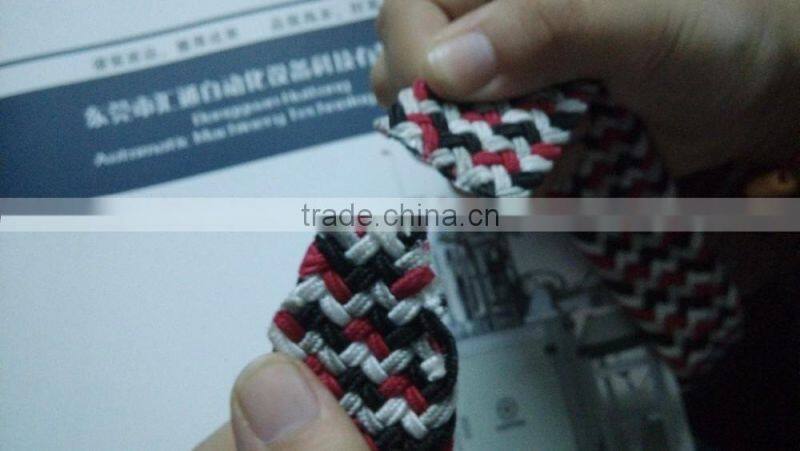

5) Weave belt cut sample:

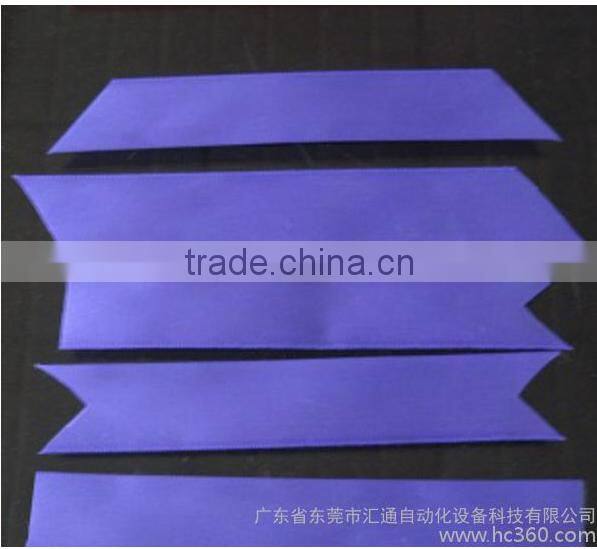

6) different angle shape cut sample:

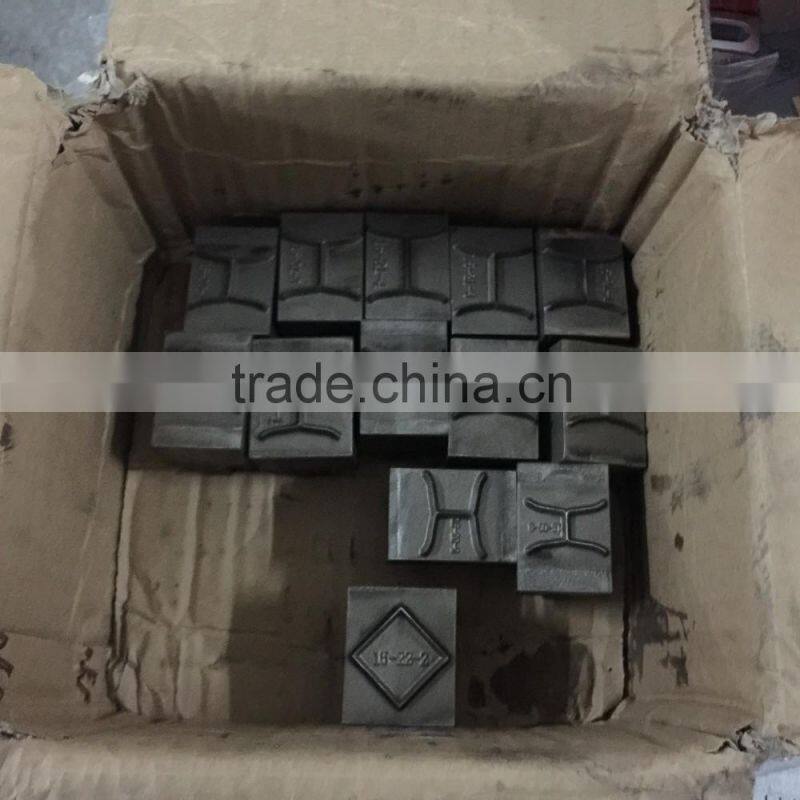

ultrasonic cutting molds:
1. by sea : wooden cases
2. by air: caton box
1. One year quality warranty,i mean if some parts of the machine damaged of course not by person on purpose we could provide one to you for free.
2. We have after-sale service department, engineers are mean to solve all the problems for customers, either through skype/msn,phone,email or go to customer's factory for free
3. Lifelong time problems inquiring regarding the machines we could help you out any time you contact us.
