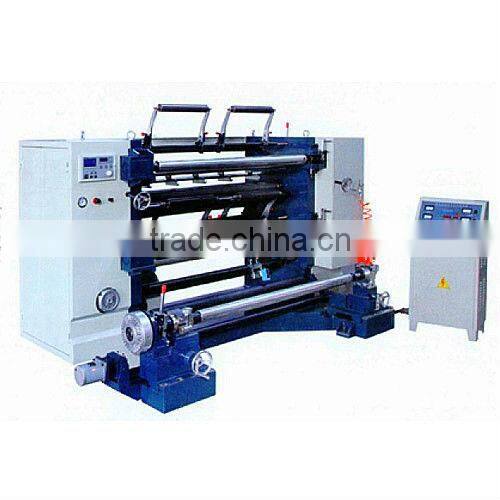

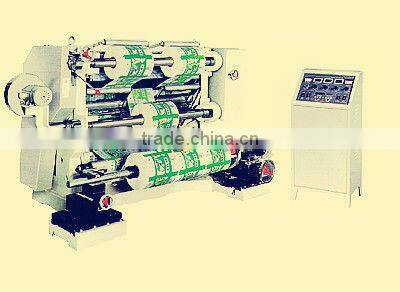

LFQ-A Series Vertical Automatic Slitting & Rewinding Machine
LFQ-B Series Vertical Automatic Slitting & Rewinding Machine
Use:
This machine is suitable for slitting and rewinding roll material such as BOPP,PET,CPP,CPE,PVC,aluminum foil and paper,etc. It can cut edge, separate and cut material according to different requirments during production.
Performance and Features:
1. This machine is kind of Vertical slitting & rewinding machine
2. Independent master control panel, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transoarent material.
4. Equipped with magnetic power brake of unwinding tension control.
5. Magentic clutch control for rewinding tension control
6. It can be equipped with rim charge conveying or rewinding device (which can be selected on order)
7. Automatic meter counting device LFQ-A B Series Vertical Automatic Slitting & Rewinding Machine.
Main Technical Variables:
| Type | LFQ-700A(B) | LFQ-1100A(B) | LFQ-1300A(B) |
| Max. Width of Jumbo Roll | 700MM | 1100MM | 1300MM |
| Max. Diameter Jumbo Rll | φ 600mm | ||
| Width of Final Roll | 30-600mm | 30-1000mm | 30-1200mm |
| Slitting and Rewinding Speed | 5-160m/min | ||
| Tolerance of EPC | <±0.5mm | ||
| Total Power | 2.7kw | 3.5kw | 3.5kw |
| Weight | 1200kg | 1500kg | 1800kg |
| Overall Dimension | 2000*1110*1400mm | 2400*1110*1400mm | 2600*1110*1400mm |
