Specifications
1.LCD touch screen,toughened glass panel2.Standard 86 type wall switch
3.Sensor touch control
4,OEM and ODM welcome

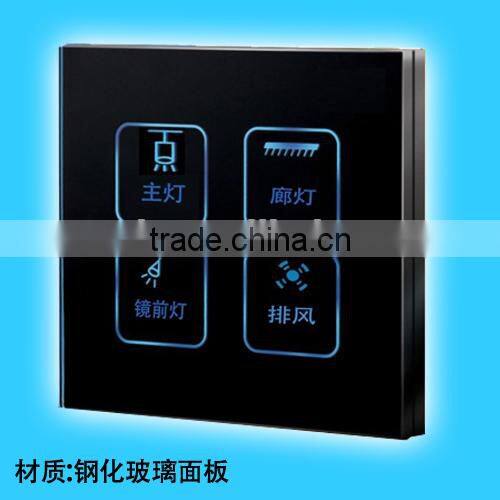

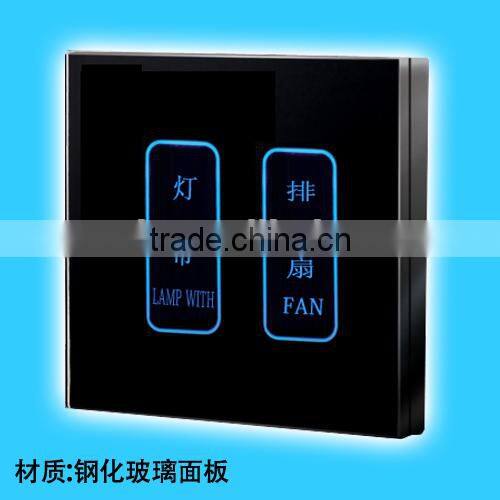

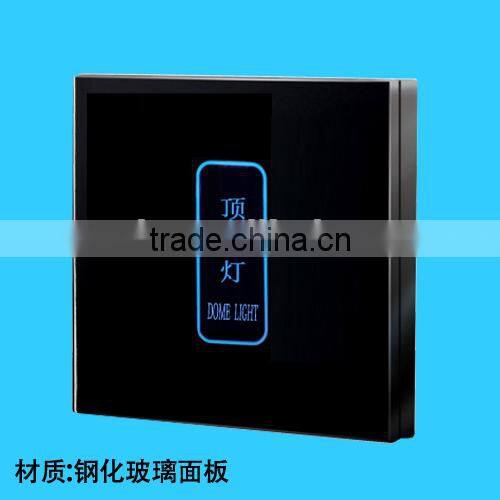

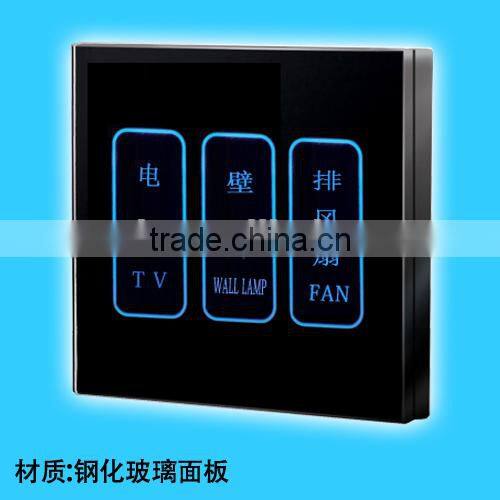

LED Touch Screen Electric Wall Switch
Touch switch informations:
1.Easy installation - standard 86 type wall switch appearance design,do not need to connect neutral,do not need to change any of lamps and lanterns,can be directly replaced the original wall switch;
2.Available lamps and lanterns - may meet fluorescent lamp,energy-saving lamps,incandescent lamp,downlights and so on;
3.Lightning protection design - with lightning protection function,safe and reliable;
4.Partition wall remote control - can be partition remote control(remote control of the sitting room lamps from bedroom);
5.Do not interfere each other - adopting digital decoding technology,without direction,will not mutual interference with neighbour's same model product;
6.Incoming power auto extinguish - power grid off and on again,switch automatically closed, avoiding waste electrical energy;
7.Two-way control -- can use the wall switch control, also can remote control,more convenient;
8.Master OFF/ON - remote controller can be set master OFF/ON button easily press a button to open or turn off all lamps;
Product specifications:
1.Size: 86*86 *39mm;
2.Color: gold, silver, pure white,bottom case is black;
3.Material: it adopts PC flame retardant plastic,nondeformable,invariant color, toughened glass panel and bottom case adopt ABS fire-resistant material,
4.Touch screen: the most advanced electronic touch technology, manual touch can be amounted to 40,0000 times above.
Product features:
1.Unique contact way of code,stronger anti-interference ability;
2.Wide voltage design,180-220V circumstance, it can work normally;
3.Manual part adopts traditional mechanical springboard switch control method, silver contacts, feel is good, long life;
4.Don't pick lamps,no need to add compensation capacitor to connect with fluorescent lamp and energy-saving lamps,without flashing phenomenon;
5.Ultra-low for power consumption design, Standby power consumption:less than 0.011W,annual power = (0.011W x 24 hours x 365 days)÷1 KWH = 0.096 KWH (10 years insufficient 1 KWH)
Technical parameters:
1.Maximum load current: 5A;
2.Longevity: 40,0000 times operation;
3.Working voltage: AC180-220V / 50HZ / 60HZ,
4.Working frequency: conventional preparation can manufacture 315MHZ 433MHZ;
5.Temperature environment: 0 ~ 80 degrees;Relative humidity 95%,
6.Working current: 220V 40 microamps current below, standby power consumption 0.0088W,
7.Remote distance: standard configuration empty distance 30 meters (can deserve to choose 50 meters or 100 meters above the remote control)
8.Maximum load resistance: the total power 500W,resistance load single way 500W.
