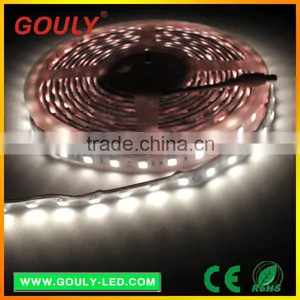

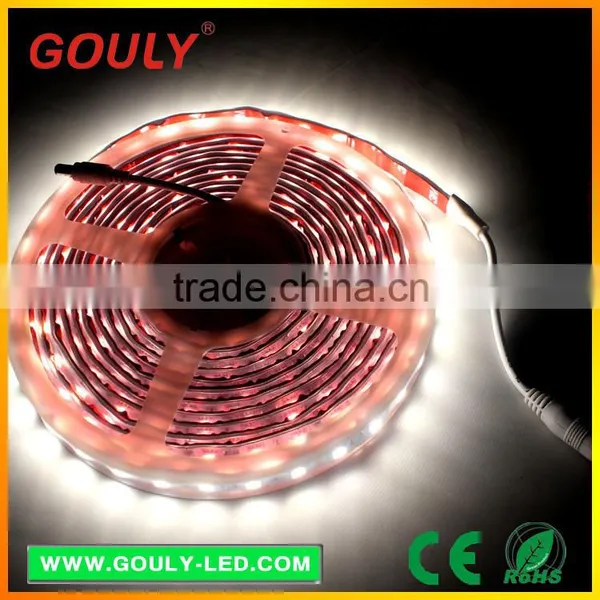

LED Neon Rope Lights LED String Lights

LED Neon Rope Lights LED String Lights thumbnail-1
LED Neon Rope Lights LED String Lights thumbnail-2
LED Neon Rope Lights LED String Lights photo-1
LED Neon Rope Lights LED String Lights photo-2
US$ 23 - 26 MOQ: 20 Rolls
Key Specifications
Get Latest Price
Type:
Flex LED Strips
Lamp Power:
72W
Working Temperature(℃):
-10, 40
Contact Supplier Request Quote Chat Now
Shenzhen Gouly LED Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
YANTIAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Flex LED Strips
Lamp Power 72W
Working Temperature(℃) -10, 40
Working Lifetime(Hour) 50000
Lamp Body Material PC
Certification CE, EMC
Emitting Color Changeable
Place of Origin China
Brand Name GOULY
Model Number ST5050N60

LED neon rope lights LED string lights

1, Various colors including single and RGB colors led strip

2, IP65 waterproofing led strip

3, Aluminium house, silicon sealed led strip
4, Solid-state, high shock/vibration resistant led strip
5, Voltage is 12/24V DC, energy-saving and environment-friendly led strip
6, Maintenance free, use and installation easily led strip
7, Long life over 50,000 hours led strip

Application

1, Cove lighting, Jewelry and watch display case

2, Border or box backlight

3, Backlihgt or edge light for signage letters

4, Decorative lights for holiday, event, show, exhibition
5, DIY lights for home use

Performance Parameter

Part No.

ST5050RGBN30

ST5050RGBN60

LED quantity

150-led

300-led

Power

36W

72W

Dimension

5000*10mm

Light source

5050

Color

RGB

Viewing angle

120

Input Voltage

DC12V

Suitable controller

DC 12power supply in constant voltage

Standard reservation line

200mm

Working temperature

-10 ° C ~ 40 ° C

IP rank

IP20

Installation and dimensions

Installation with 3M double-sided tape to stick, the dimension chart is as follows (unit: mm)

ST5050RGB30

ST5050RGB60

Connection diagram

Attention

Product should meet “use environment” requiremetn when they work.

Installation Instruction

1 . In the choice of power cord, power cord should be noted that the current carried should be larger than normal working current by the lamp brought.

2 . Controller and switching power supply must work in ventilated and dry environment.

3.Make sure the input wire or output wire of control bus without a short circuit before operation. In the case of work such as short circuit, the internal components may be destroyed

Attention

1. Suggest led strip connection with length no more than 5meters. 3/6LED as a loop, the interface can be cut to use, but can not be cut in the middle of a loop

2.Collocate suitable power supply according to the total power after strip concatenation, and also pls assure the power of led adapter must be larger than the load power, or else the power supply will be burned out.

3. LED strip drove by DC12V, pls do not use output DC5V or DC24V power supply, it will not light or burn out; if by DC24 driver, pls do not use output DC12V or DC36V power supply, same as above.

4. This product is non-waterproof led series strip, suitable for indoor application, not in the rain or put into the water.

5. The soft silica gel is on the LED surface, forbid any chemical solvent smear on the surface which have chemical reaction with silicon, otherwise the leds can not light.

6. Working temperature is -10 C °~ + 40 C ° .

7. If the lamp body is damaged, it must use the new alternative.

8. It can not connect power when installation or removal.

Packing diagram:
