Help CenterSmall Led Ceiling Ligh 12w Led Ceiling Pot Lights AC100-240V 814lm
Related Products
-
Small Led Ceiling Ligh 12w Led Ceiling Pot Lights 814lmUS$ 13.5 - 15MOQ: 1 Piece -
Easy Install Epistar Led Ceiling Lights Elevator Ceiling Light Panel AC100-240V 38degreeUS$ 11.5 - 13MOQ: 1 Piece
-
5W LED Ceiling Down Light Housing,Epistar LED Recessed Light AC100-240V 451LM Quality ChoiceUS$ 8 - 10MOQ: 1 Piece
-
5W LED Ceiling Down Light Housing, LED Recessed Light 451LM Aluminum CeilingUS$ 8 - 10MOQ: 1 Piece
-
Led Ceiling Light Hong Kong Weixingtech 20w COB Downlight AC100-240VUS$ 10 - 25MOQ: 1 Piece
LED Ceiling light Feature:

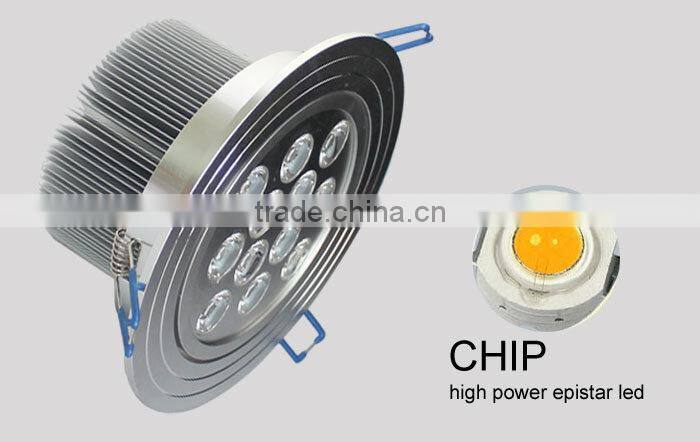

1.It adopt 1W high power LED as light source, and use aluminum alloy shell for the downlight.
2.The cover is oxidation brushed finished and though high-polished.
3. It has the features of good heat dissipation, low heat, low power consumption, energy saving, long lifespan etc.
4. Beam angle is 38°. Used with outside transformer, it is easy to install and use.

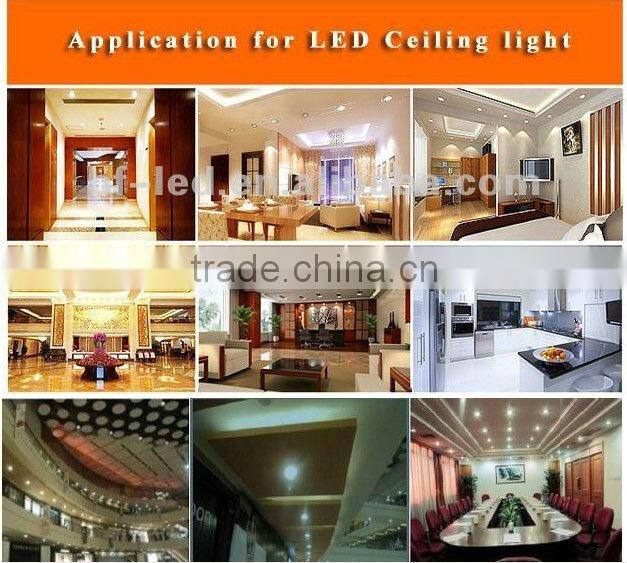

5.The downlight is widely used for indoor lighting, places like supermarkets, hotels, showrooms, museums, etc.
Product Parameter:
Model No. |
LD1X1W |
LD3X1W |
LD5X1 |
LD7X1W |
LD9X1W |
LD15XW |
|||||
LED Power |
1x1W |
3x1W |
5x1W |
7x1W |
9X1W |
15x1W |
|||||
LED Quantity |
1PCS |
3PCS |
5PCS |
7PCS |
9PCS |
15PCS |
|||||
Working Voltage |
100-240VAC |
||||||||||
Input Power |
1.2W |
4.1W |
6.3W |
8.8W |
10.5W |
17.6W |
|||||
PF |
0.512 |
0.899 |
0.91 |
0.919 |
0.97 |
0.97 |
|||||
THD |
<15% |
||||||||||
Beam Angle |
15°/30°/45°/60° |
||||||||||
Housing |
6063 Aluminum Section Housing |
||||||||||
Operation Temp |
-20°C ~ +40°C |
||||||||||
Operation Humi |
<85%RH |
||||||||||
Color |
PW/WW |
||||||||||
Luminous Flux(lm) |
91.2 |
278 |
451 |
638 |
814 |
1358 |
|||||
Light Efficiency(lm/W) |
76.0 |
68 |
71 |
72 |
77.6 |
77.2 |
|||||
|
Installation Hole (mm) |
¢43 |
¢80 |
¢93 |
¢93 |
¢120 |
¢125 |
|||||
Product outside dimension:(Unit:mm)

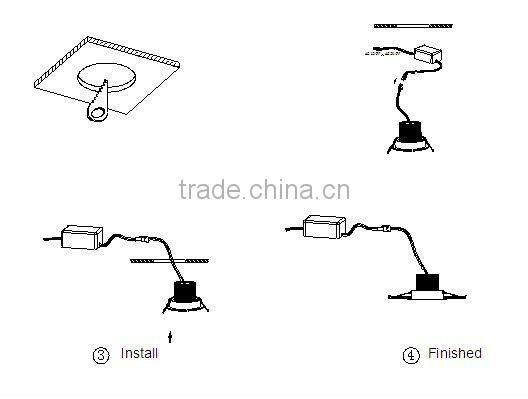

3.Installation instruction:
Attention:
1.Recommended working environment temperature : -20°C - 40°C
2.Humidity: 0-95%
3.Storage environment temperature: -35°C- 70°C
4.If any of the three exceeds the range, it is bad for lifespan of the product.
5.Caustic and deliquescent chemicals will damage the outside protection crust.
6.Indoor use only
7.Should be installed by professionals.

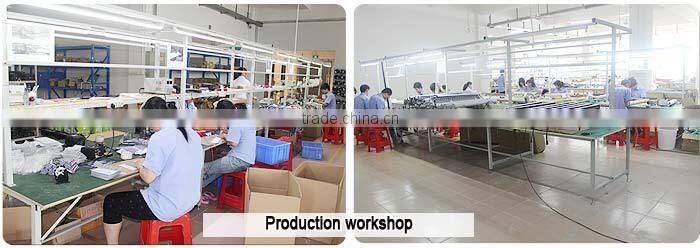

High power ceiling Production Line :
Certification:
Why Choose GOULY LED Limited ?
Quality Control:
100% of the lamps will be tested and keep lighting for 12 hours to test its quality reliability, Then after it is cool we again test 100% of the lamps to see if it still work well. Each lamp should pass all these QC procedures before shipping to customer.
Order infomation
MOQ: 20pcs
Trade term: EXW / FOB Shenzhen
Delivery time: 3-7 working days for sample order, 7-15 working days for mass order.
Warranty
Two years since the date of purchase.
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, Gouly will provide paid maintance within warranty period.
Trade Terms:
1. Payment term: T/T 100% payment in advance, or for over 10,000USD, TT 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union and Paypal for small amount.
2. Lead time: normally in 5~15 days after deposit received
3. Sample policy: Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port: Shenzhen , China
5. Discounts: We offer discount for big quantity.
Delivery detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~7 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-tranied and passional sales & after-sale services who can speak fluent Engligh language.
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
