Specifications
T8 LED tube light1.180degree rotated
2.two pin or one pin
3.isolated driver
4.high brightness
The advantage of LED tube light:
1. High Power Factor: >0.95
2. Low harmonious wave: Harmonious wave is less than 15%
3. Energy Saving: constant current, low power consumption, electrooptic power near 100%
4. High brightness: high bright SMD3014 as light source
5. Delay Star-up: delay star-up for 1 second, no impulse current to LED, longer lifetime
6. 6063 oxidized aluminum housing, take away heat effectively, reflow soldering, steady quality;
High transparent stripe PC cover, solve LED glare issue
7. Elegant appearance, integrated pins design
8. Environment-friendly: NO UV, NO radiates infra-Red light, NO mercury
9. Long lifetime: life time 30,000-50,000 hrs, 10 times longer than traditional fluorescent tubes
10. Easy installation: install LED tube lights directly, work with 100-240v wide voltage.
Technique Parameter:
| Part No. | Size | LED Type | LED Quantity | Voltage (V) | Power (W) | Cover | Lumen (Lm) | CRI | Color | Viewing Angle |
| T8 led tube | ||||||||||
| TU-10W | Ø26*588MM | SMD2835 | 48PCS | 100-240V AC | 10W | transparent/milky/stripe | 880lm | >75 | PW,WW,CW | 120° |
| TU-15W | Ø26*894MM | SMD2835 | 72PCS | 100-240V AC | 15W | transparent/milky/stripe | 1350lm | >75 | PW,WW,CW | 120° |
| TU-18W | Ø26*1198MM | SMD2835 | 88PCS | 100-240V AC | 18W | transparent/milky/stripe | 1580lm | >75 | Cool White Warm White | 120° |
| TU-22W | Ø26*1198MM | SMD2835 | 96PCS | 100-240V AC | 22W | transparent/milky/stripe | 1890lm | >75 | Cool White Warm White | 120° |
| TU-25W | Ø26*1498MM | SMD2835 | 120PCS | 100-240V AC | 25W | transparent/milky/stripe | 2060lm | >75 | PW,WW,CW | 120° |
| TU-40W | Ø26*2370MM | SMD2835 | 192PCS | 100-240V AC | 40W | transparent/milky/stripe | 30500lm | >75 | PW,WW,CW | 120° |
| T5 led tube | ||||||||||
| T5-10W | 22*27*600MM | SMD2835 | 48PCS | 100-240V AC | 10W | transparent/milky/stripe | 880lm | >75 | PW,WW,CW | 120° |
| T5-15W | 22*27*900MM | SMD2835 | 72PCS | 100-240V AC | 15W | transparent/milky/stripe | 1350Lm | >75 | PW,WW,CW | 120° |
| T5-22W | 22*27*1200MM | SMD2835 | 96PCS | 100-240V AC | 20W | transparent/milky/stripe | 1890lm | >75 | PW,WW,CW | 120° |
| T5-25W | 22*27*1500MM | SMD2835 | 120PCS | 100-240V AC | 25W | transparent/milky/stripe | 2060lm | >75 | PW,WW,CW | 120° |

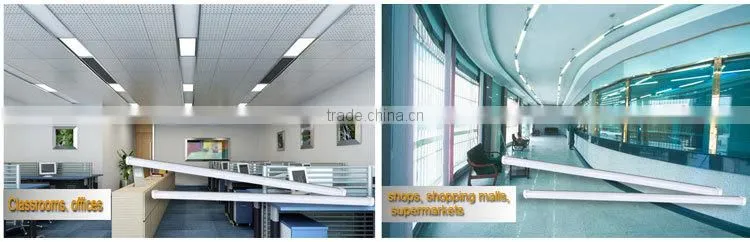

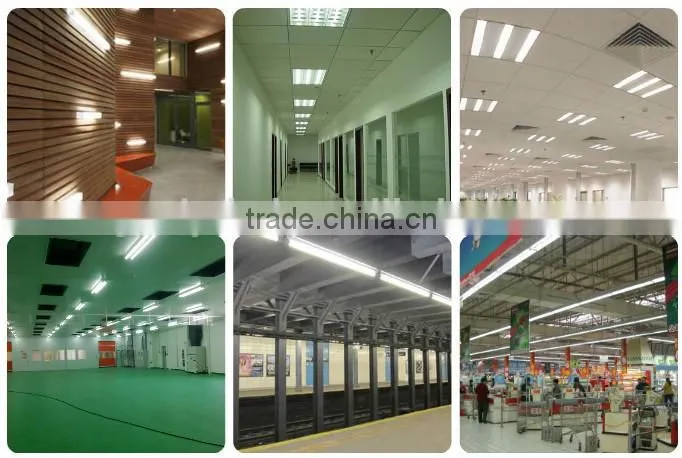

APPLICATION
T8 LED Tube Light Picture

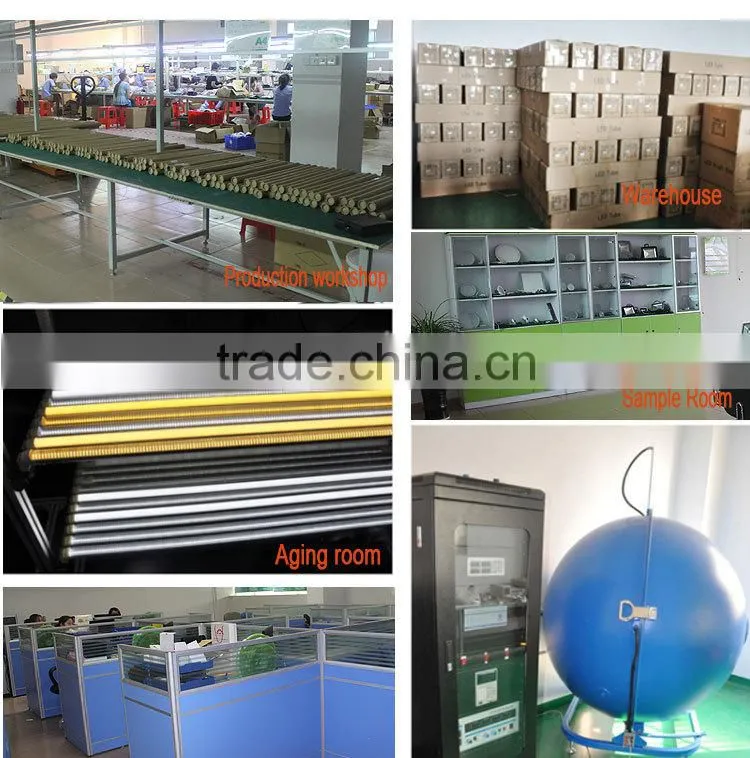

PRODUCTION LINE
Why Choose GOULY LED Limited ?
Quality Control:
100% of the lamps will be tested and keep lighting for 12 hours to test its quality reliability, Then after it is cool we again test 100% of the lamps to see if it still work well. Each lamp should pass all these QC procedures before shipping to customer.
Order infomation
MOQ: 20pcs
Trade term: EXW / FOB Shenzhen
Delivery time: 3-7 working days for sample order, 7-15 working days for mass order.
Warranty
Two years since the date of purchase.
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, GOULY will provide paid maintance within warranty period.
Trade Terms:
1. Payment term: T/T 100% payment in advance, or for over 10,000USD, TT 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union and Paypal for small amount.
2. Lead time: normally in 5~15 days after deposit received
3. Sample policy: Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port: Shenzhen , China
5. Discounts: We offer discount for big quantity.
Delivery detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~7 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-tranied and passional sales & after-sale services who can speak fluent Engligh language.
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
