Square Nut Sockets

Square Nut Sockets thumbnail-1
Square Nut Sockets photo-1
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
FEIYAO
Type:
Other, hydraulic tools
Contact Supplier Request Quote Chat Now
Jiangsu Feiyao Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name FEIYAO
Type Other, hydraulic tools

Specifications

1.low profile
2.easy for carrying
3. compact design
4. durability and safety
5.ensure life long life

♣the  description of square nut sockets





♣It's raw material is Senior Chromium–Molybdenum alloy steel.

♣The sockets are made under Germany DIN standard (3121&3129).

♣It adopts standard heat–treatment and ensures life–long warranty.

♣we can customize imperial or all kinds of nonstandard sockets according to your requirement.

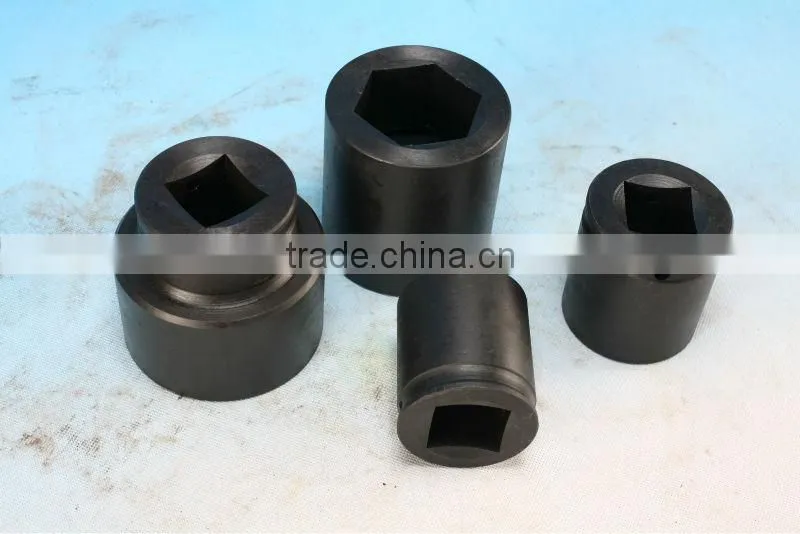

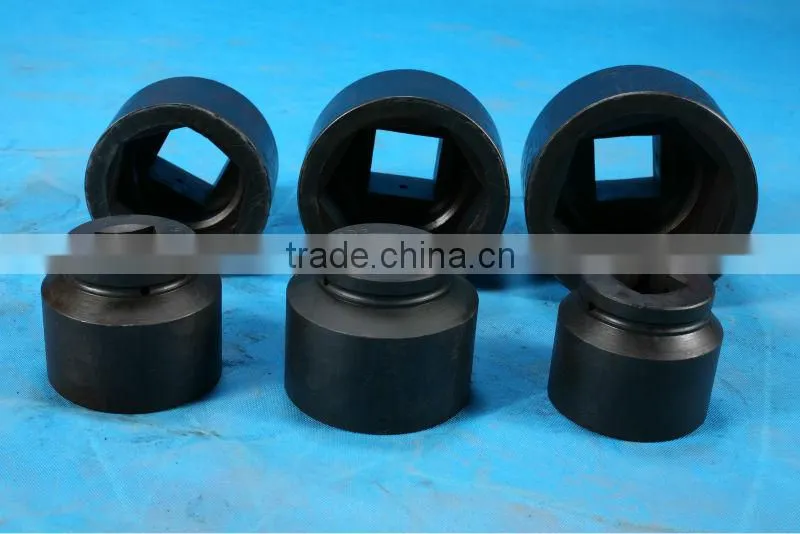

the picture

square nut sockets



square nut sockets



parameters about product



        3⁄4 " Square Hole (FY–2MXTA)

power head bolt size M Nut size (mm) L1 L2 D1 D2
FY-S24-F19 M16 24 54 32 40 40
FY-S27-F19 M18 27 54 32 42 42
FY-S30-F19 M20 30 54 33 46 44
FY-S34-F19 M22 34 54 32 48 44
FY-S36-F19 M24 36 57 32 53 44
FY-S41-F19 M27 41 58 33 60 44
FY-S46-F19 M30 46 63 36 66 44
FY-S50-F19 M33 50 65 40 71 44
FY-S55-F19 M36 55 70 45 77 54



        1"Square Hole ( FY–5MXTA)

power head bolt size M Nut size (mm) L1 L2 D1 D2
FY-S34-F25 M22 34 59 32 58 58
FY-S36-F25 M24 36 62 32 59 59
FY-S41-F25 M27 41 65 38 67 54
FY-S46-F25 M30 46 65 38 74 54
FY-S50-F25 M33 50 70 43 79 60
FY-S55-F25 M36 55 80 52 84 60
FY-S60-F25 M39 60 85 57 89 60
FY-S65-F25 M42 65 85 58 98 70
FY-S70-F25 M45 70 90 62 104 70
FY-S75-F25 M48 7 95 65 108 70



       1 −1⁄2" Square Hole (FY−8, 10, 16, 20 MXTA)

power head bolt size M Nut size (mm) L1 L2 D1 D2
FY-S27-F38 M27 41 85 44 74 74
FY-S46-F38 M30 46 85 44 74 74
FY-S50-F38 M33 50 90 45 79 79
FY-S55-F38 M36 55 90 45 84 84
FY-S60-F38 M39 60 100 45 94 94
FY-S65-F38 M42 65 100 45 98 80
FY-S70-F38 M45 70 105 50 104 80
FY-S75-F38 M48 75 110 50 118 85
FY-S80-F38 M52 80 115 55 118 90
FY-S85-F38 M56 85 125 60 128 90
FY-S90-F38 M60 90 125 60 139 90
FY-S95-F38 M64 95 130 65 139 90
FY-S100-F38 M68 100 135 70 144 90
FY-S105-F38 M72 105 135 70 149 90
FY-S110-F38 M76 110 135 70 158 90
FY-S115-F38 M80 115 135 70 159 90
FY-S120-F38 M85 120 135 70 168 95
FY-S130-F38 M90 130 155 93 189 95



       2−1⁄2" Square Hole  (FY−27, 39, 50, 60 MXTA )

power head bolt size M Nut size (mm) L1 L2 D1 D2
FY-S55-F63 M33 55 100 57 86 114
FY-S60-F63 M39 60 100 52 119 119
FY-S65-F63 M42 65 100 52 119 119
FY-S70-F63 M45 70 120 67 128 128
FY-S75-F63 M48 75 120 67 128 128
FY-S80-F63 M52 80 130 71 128 128
FY-S85-F63 M56 85 130 71 128 129
FY-S90-F63 M60 90 140 73 139 139
FY-S95-F63 M64 95 140 73 139 139
FY-S100-F63 M68 100 140 81 149 130
FY-S105-F63 M72 105 150 89 149 130
FY-S110-F63 M76 110 150 90 158 130
FY-S115-F63 M80 115 150 98 168 130
FY-S120-F63 M85 120 150 98 178 130
FY-S130-F63 M90 130 170 98 188 130
FY-S135-F63 M95 135 170 114 198 130
FY-S145-F63 M100 145 170 122 210 152
FY-S150-F63 M105 150 190 140 216 152
FY-S155-F63 M110 155 190 140 229 152
FY-S165-F63 M115 165 190 140 241 152



Brief introduction about our company

square nut sockets



   Established in 2004,Jiangsu feiyao machinery manufacturing factory is a professional leading manufacturer of hydraulic tools in China .such as PLC lifting system ,hydraulic cylinder, torque wrench ,nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories ect.

   Our products have been widely sold to Europe, south East Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please remember our company is always your reliable friends.

   Our well equipped facilities and excellent quality control enables us meet customers` satisfaction. Besides, we have gained CEand ISO9001certificates.

 ♣ showroom

square nut sockets

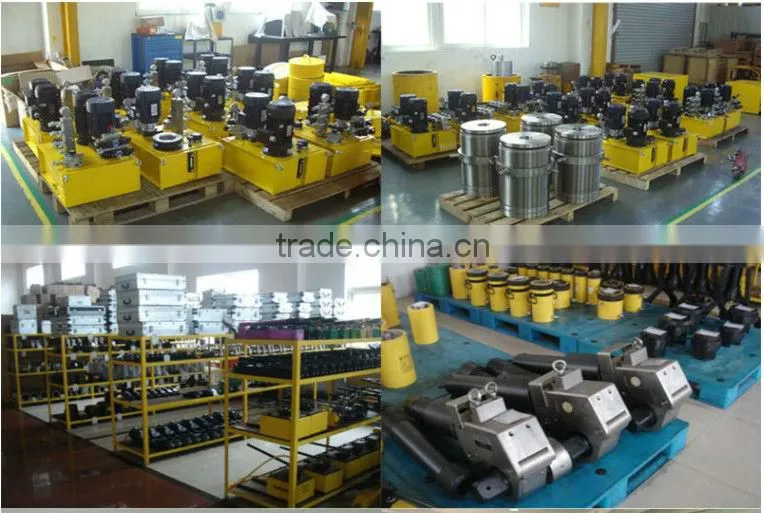

 ♣ workshop



square nut sockets



square nut sockets



 ♣ warehouse



  ♣ dispatch area

square nut sockets

♣our R&D team



square nut sockets

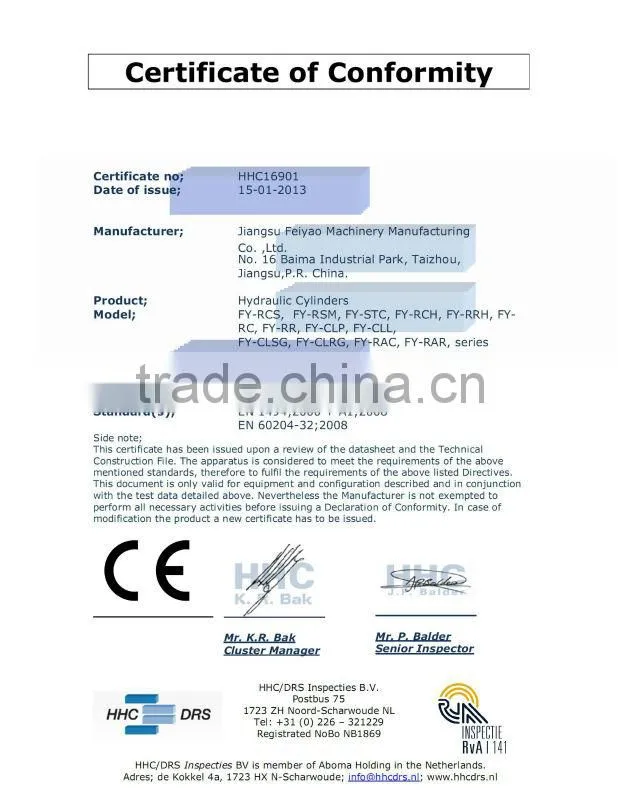

 ♣ certification







  square nut sockets

We warmly welcome all overseas customers to talk with us about business or other cooperation

Any phone call, E—mail, fax from you would be a beginning of happy cooperation.
