Help CenterDBL-2000 Movable 200 Ton Hydraulic Puller Quality Choice
Related Products
-
DBL-500 Movable 50 Ton Hydraulic PullerUS$ 2,000 - 8,000MOQ: 1 Unit -
Hydraulic Gear PullerNegotiableMOQ: 2 Sets
-
FY-DBL Series Power Pump Movable Hydraulic Grip PullerUS$ 3,500 - 9,000MOQ: 1 Set
-
FY-7 Series Automate Center Mechanical Hydraulic Puller With Excellent QualityNegotiableMOQ: 5 Sets
-
FY-10 Series Automate Center Mechanical Hydraulic Puller With Excellent QualityNegotiableMOQ: 5 Sets
Specifications
200 ton hydraulic puller1.double acting design
2.use for dismantling large shafts and work pieces
3.factory supply directly

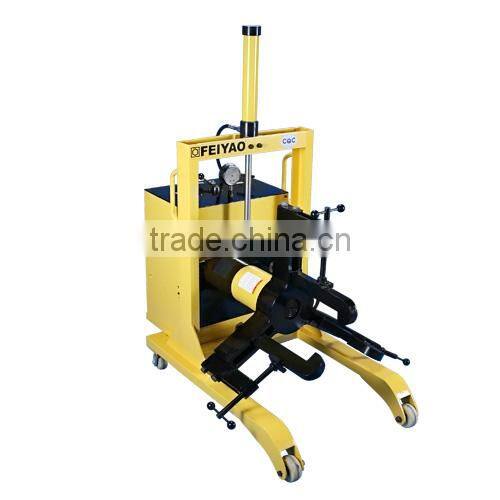

DBL-2000 power pump movable 200 ton hydraulic puller
Description of power pump movable 200 ton hydraulic puller
1. Equipped with automatic hydraulic lifting system, easy to accurate positioning on wheel pull up and down.
2. the unique Single pump synchronous valve configuration, just only one person can operate it lift up and down and oil cylinder grappling hook location and remove.
3. Pull a claw system tension, the greater the clamping force, the greater the don't need to add the chain to avoid pulling claw sliding out or pop-up artifacts
4. the Wheeled vehicles in order to convenient movement, and it can change the work place at any time.
5. Applicable to remove the bearing, gear, coupling and other large workpiece.
6. Electric hoist pull wheel system adopts the double-acting hydraulic cylinder design is suitable for large axial, hole type of artifact removal
7. the device is equipped with wheeled vehicles, mobile convenience, can change at any time remove site.
8. three-jaw wheel structure design, screw remove the height adjustment.
9. we can Customizable drawing plate, remove the large bearing is more secure, efficient and convenient.
Features
1. Roller cart with power lift
2. Hydraulically actuated lift cylinder on cart extends puller from ground to a height of 1,7 m
3. Adjustable jaw tips
4. Includes electric one stage pump with remote pendant for fingertip control of the removal process
Model no and parameters information
Model no |
Puller ablity(T) | Diamantling Range(mm) | Stroke(mm) | Pressure(Mpa) | Weight(Kg) |
|
FY-DBL-500 |
50 | 500 | 160 | 70 | 225 |
|
FY-DBL-1000 |
100 | 600 | 160 | 70 | 326 |
|
FY-DBL-2000 |
200 | 600 | 160 | 70 | 500 |
|
FY-DBL-3000 |
300 | 800 | 200 | 70 | 700 |
|
FY-DBL-5000 |
500 | 900 | 200 | 70 | 980 |
Brief introduction of our company
Established in 2004,Jiangsu feiyao machinery manufacturing factory is a professional leading manufacturer of hydraulic tools in China .such as PLC lifting system ,hydraulic cylinder, torque wrench ,nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories ect.
Our products have been widely sold to Europe, south East Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please remember our company is always your reliable friends.
Our well equipped facilities and excellent quality control enables us meet customers` satisfaction. Besides, we have gained CEand ISO9001certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperation
Any phone call, E—mail, fax from you would be a beginning of happy cooperation.
