FY-EP Series Electric Hydraulic Power Station
- shanghai
- T/T
You May Like
-
70Mpa Double Acting Electric Hydraulic Cylinder Pump
-
High Quality Electric Hydraulic Pump China Supplier
-
High Quality Two Stage Double Acting Electric Hydraulic Pump (FY-EP)
-
FY-EP Series Electric Hydraulic High Pressure Pumps
-
FY-EP Series China Hydraulic Pump
-
EP Series Two Stage 380V 50HZ Hydraulic Power Unit for Cylinder Jack
Product Details
| Type | Hydraulic Power Units | Model Number | FY-EP | |
| Brand Name | FEIYAO | Place of Origin | Jiangsu, China |
Product Description
Specifications
hydraulic power station1.Handle convinent to carry
2.Two stage with heat exchange
3.Ce certificate
4.Factory supply direct

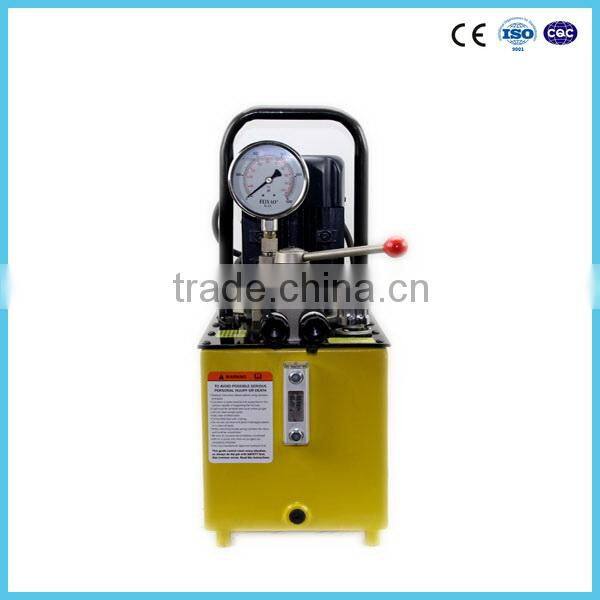

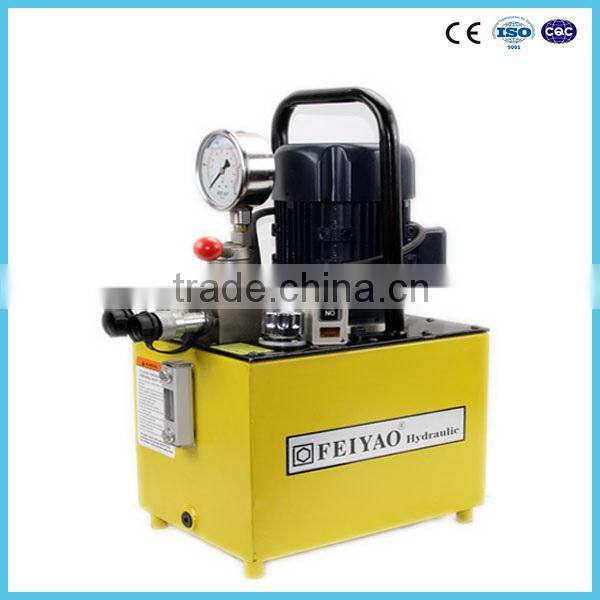

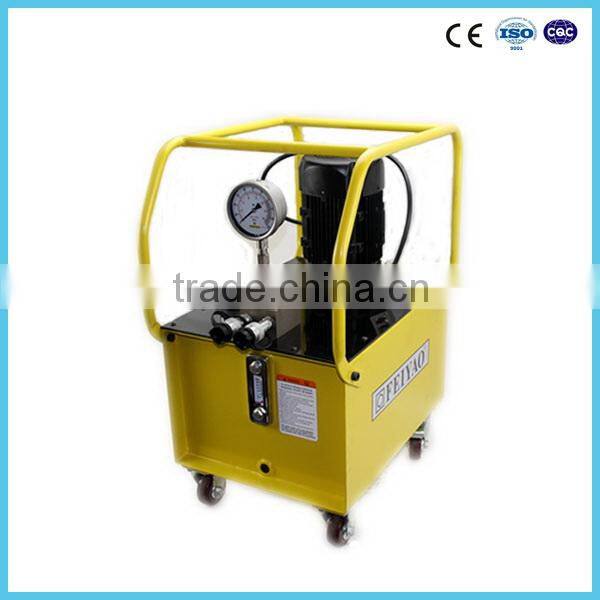

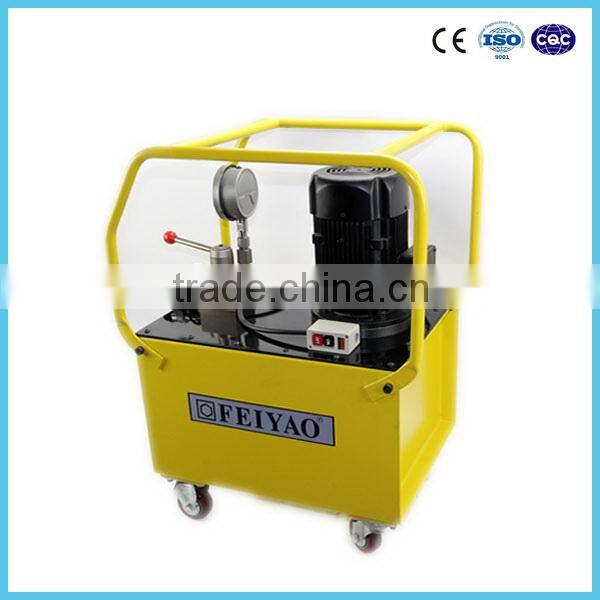

FY-EP series electric hydraulic power station
Double-speed designed, infinitely variable pressure adjustment between 0-700 bar. Double-acting electric hydraulic pump with manual valve EP series 70Mpa electric pump,hydraulic pump.
Features
1Parameter:2−stage pump with heat exchange,380v,50Hz,three phase
2.The maximum operating pressure :70Mpa
3.Flow:low pressure 10 L⁄m, high pressure4L⁄m
4.Operation :suitable for single and multi–operation (2 pair ports)
5.Two stage with hear exchange

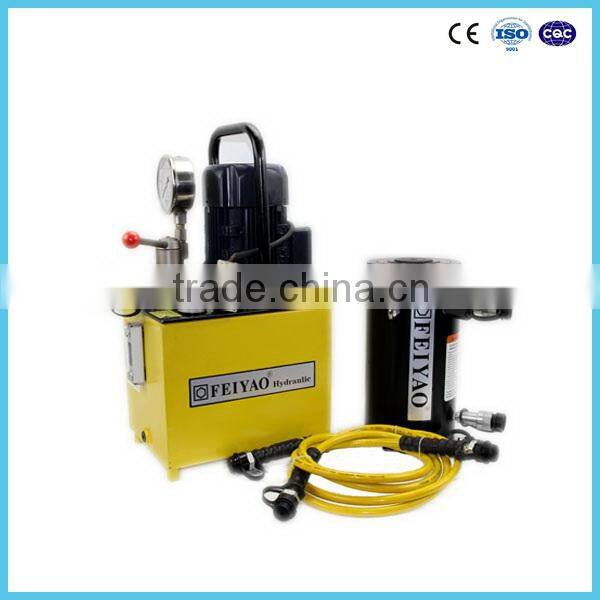

Application of electric hydraulic power station

Parameter information
| model | working pressure(Mpa) | flow (L/Min) | tank capacity | motor power(kw) | voltage(v) | dimension(L×W×H) (mm) | weight(kg) | ||
| high pressure | low pressure | high pressure | low pressure | (L) | |||||
| FY-ER-75 | 70 | 0.8 | 12 | 0.75 | 380 | 400×260×440 | 30 | ||
| FY-EPR-150 | 70 | 0.8 | 12 | 1.5 | 220 | 400×260×440 | 30 | ||
| FY-EP-150 | 70 | 10 | 1 | 6 | 24 | 1.5 | 380 | 500×350×600 | 60 |
| FY-EP-220 | 70 | 10 | 1.5 | 7 | 50 | 2.2 | 380 | 500×350×600 | 90 |
| FY-EP-220 | 70 | 10 | 1.5 | 7 | 60 | 2.2 | 380 | 610×450×860 | 90 |
| FY-EP-550 | 70 | 10 | 4 | 10 | 100 | 5.5 | 380 | 750×540×880 | 120 |

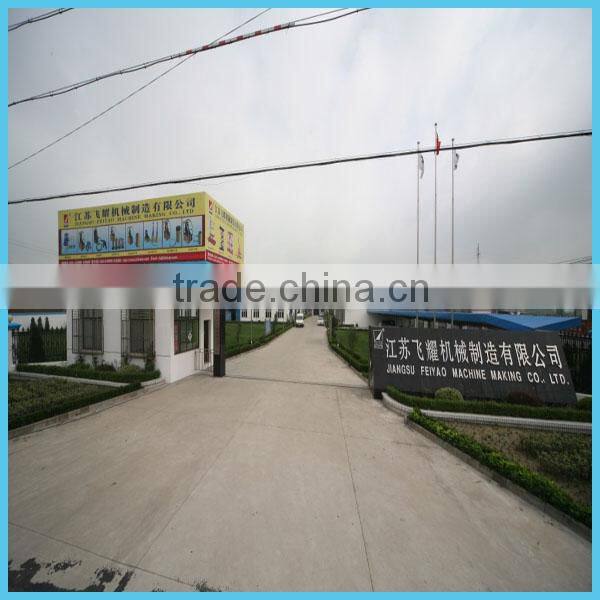

Brief introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.

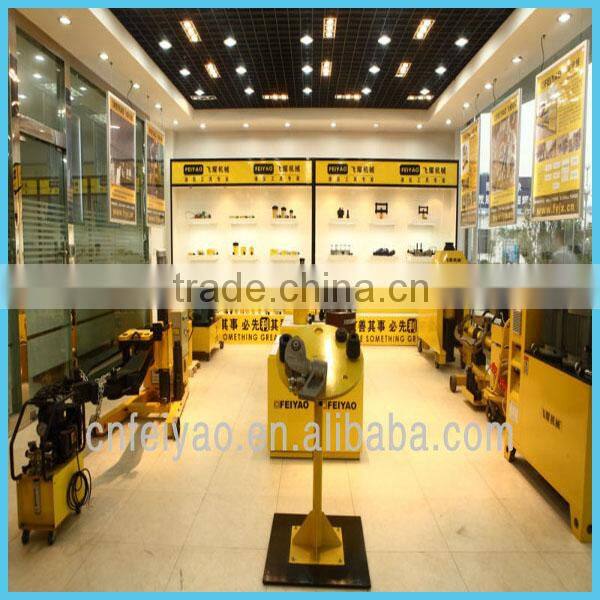

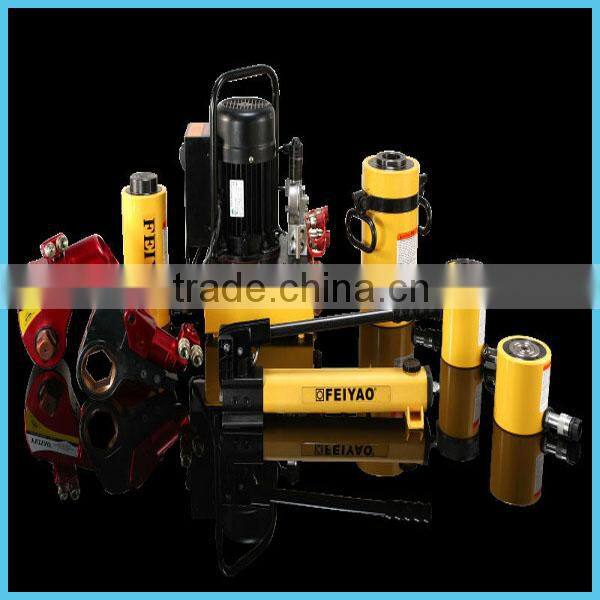

Showroom

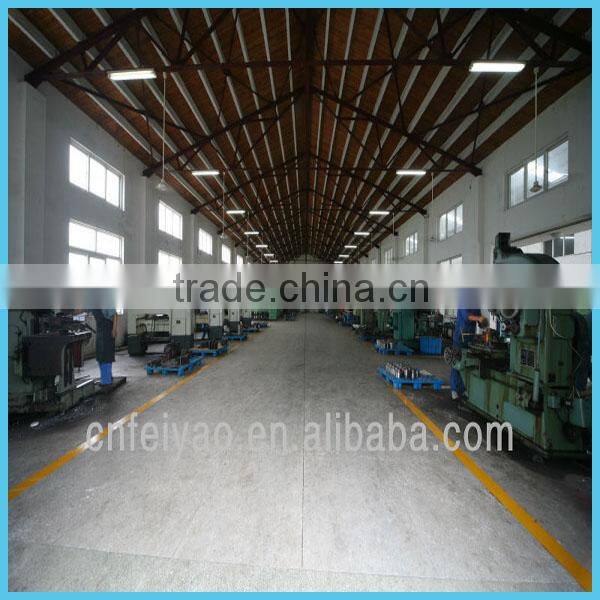

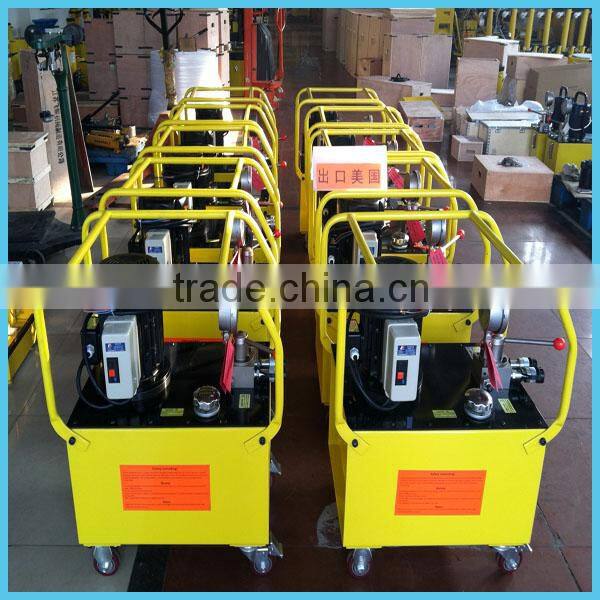

Workshop

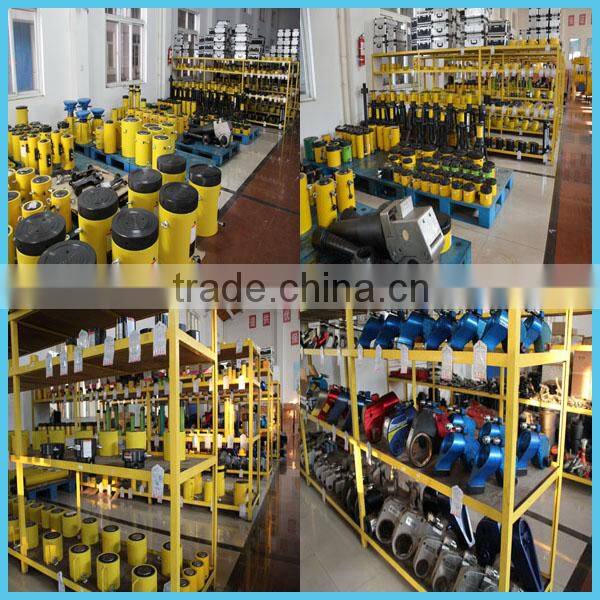

Warehouse

R&D Team

Certification
