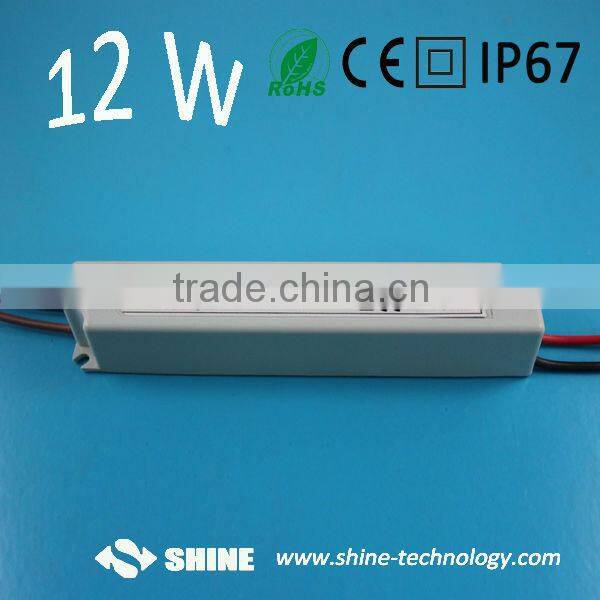

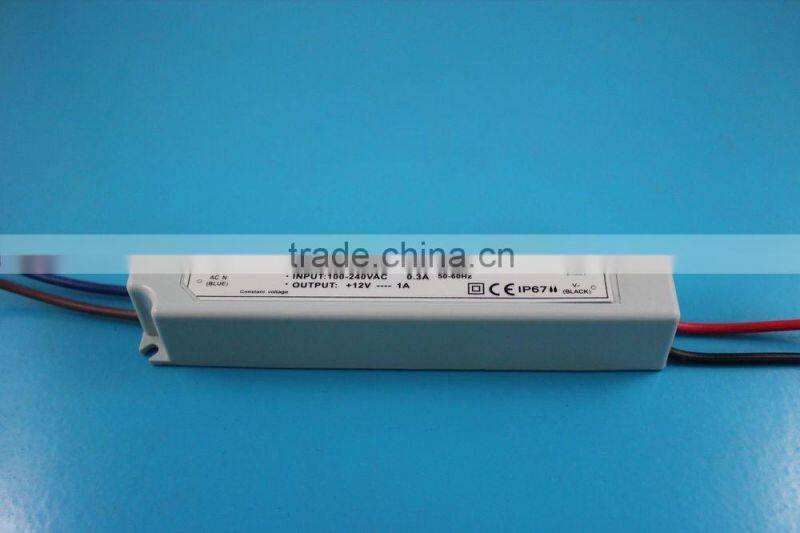

Help CenterHigh Quality Constant Voltage Waterproof Ip67 Led Switching Power Supply 12v 1a 12w, 12v 1a Switching Adapter Transformer
Related Products
-
High Quality IP67 Waterproof 24V DC 40W 1.67A Switching Power Supply 2years WarrantyUS$ 5 - 20MOQ: 1 Piece -
Hot Sell STV Series IP67 Waterproof DC 12V 40W 3.3A LED Power Driver With CE(EMC LVD) RoHSUS$ 5 - 20MOQ: 1 Piece
-
Psu Ac 220v dc 12v 100w Constant Voltage Waterproof Electronic Ip67 Led Light Switching Power Supply Driver TransformatorUS$ 1 - 15MOQ: 1 Piece
-
Psu Ac 220v 230v 240v dc 24v 30w Constant Voltage Waterproof Electronic Ip67 Led Switching Power Supply Driver TransformerUS$ 1 - 6MOQ: 84 Pieces
-
High Quality Constant Voltage 12v 8.33a 100w Ip67 Waterproof Led Lamp Electron Led DriverUS$ 1 - 15MOQ: 1 Piece
Constant voltage single output waterproof 12W DC 12V power adapter
TM: cn1500189133 Skype:Y151008
12V power adapter
Waterproof IP67 rated, Plastic case, Class 2 power unit
CE(EMC LVD) RoHS approved
24hours burn in test
2 years warranty
Features(STV-12-12): 12V power adapter | ||
Constant voltage mode power supply | ||
Universal AC input | ||
Fully encapsulated with IP67 level | ||
Cooling: By Convection | ||
Class II power unit with fully isolated plastic case | ||
Protections: Short Circuit/Over Load/ Over Voltage/Thermal protection | ||
Small and compact size | ||
100% full load burn-in test | ||
Suitable for LED lighting and moving sign applications | ||
Two years warranty | ||
Specifications: | ||
Input |
Voltage |
170-250V AC |
Frequency |
47 to 63 Hz |
|
Efficiency |
75% |
|
Ac current |
0.1A/220VAC |
|
Inrush current |
Cold start 30A/240VAC |
|
Leakage current |
0.25mA/240VAC |
|
Output |
DC Voltage |
12V |
Rated Current |
1A |
|
Current Range |
0-1.0A |
|
Rated Power |
12W |
|
Ripple & noise (Max.) |
120mVp-p |
|
Environment |
Storage temperature |
-40-80 degree |
Operating temperature |
-30-50 degree |
|
Humidity operating |
20%-90% |
|
Humidity storage |
10%-95% |
|
Protections |
Short Circuit |
Auto recovery |
Over-load |
110-150%output rated power, recovers auto |
|
Over-voltage |
13.8-16.2V, recovers auto |
|
Thermal Protection |
≤85 degree |
|
CE |
CE Safety Standard |
Compliance to EN61347-1:2008&EN 61347-2-13:2006 |
EMI conduction & radiation |
Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004 |
|
Harmonic Current |
Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 |
|
Others |
Dimension/Weight |
130*25*20*mm/140g |
Cable |
30mm |
|
Withstand voltage |
3KVAC |
|
| About us |
|
Established in 2003, Shine Technology Limited is a professional manufacturer for waterproof led power supplies, led panel lights and led bulbs. Based on long-term experience in LED field, we have become one of most famous and leading exporter of LED products in China. Further more, due to our committed workforce and strict quality control processes, our products boast both high quality and superior design technology.
Our company’s growing very fast year by year, we now have 6 production lines, with more than 150 workers.
All our products comply with CE and RoHS, selling very well in Europe, North America, Austria, Japan and other Asia countries. Adhering to the ideals of "Sincerity, Mutual Benefit, Constant Innovation and Top Quality", we proudly invite all interested companies to contact us for further information about our company or products. We look forward to forming a strategic partnership with your company in the near future.
|
Certificates
Trade terms
1. T/T West Union, 30% deposit 70% balance before shipment is available for the order upto US$30,000.
2. Lead time: normally in 5-7 workdays after deposit received.
3. Sample policy: Samples are always available for each model. Deliver Immediately once payment received.
4. Shipping port: Shenzhen, China.
5. Discounts: We offer discount for big quantity.
Our services
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.
2. Well-trained and professional sales & after- sale services stuff who can speak fluent English.
3. OEM service is available. Can print your own logo on product, customized the retail box packing.
4. with experienced R&D engineers and strong ability to do ODM projects.
Delivery details
We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which takes about one month to arrive, depending on your actual requirements
Q: 1. Do you accept OEM for the switching power supply?
A: Yes. we do.
Q: 2 .What certification you have for the switching power supply?
A: We have CE, ROHS.
Q: 3.How to Contact Us ?
A: Send your inquiry Details in the below, Click "Send" Now!
