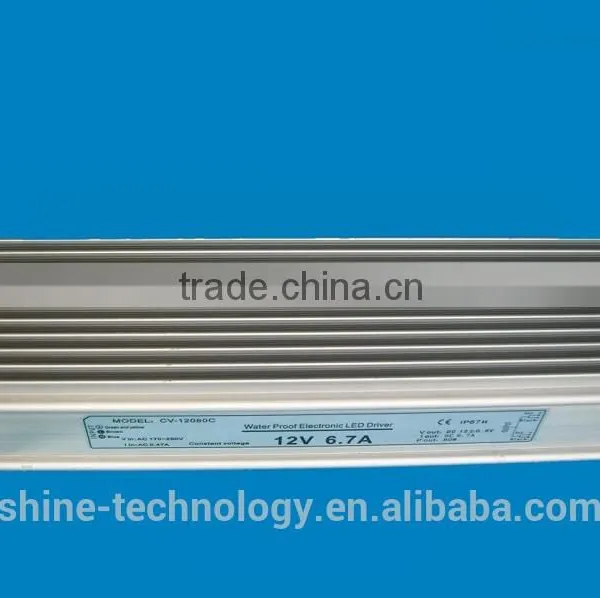

High quality waterproof led power supply 12v 80w
IP67 rated
CE(EMC LVD) RoHS approved
24 hours burn in test
Two years warranty
Features: | ||
Protections: Short circuit/Overload/Over Voltage/Over Temperature | ||
IP protection standard: IP67 | ||
100% full load burn-in test | ||
Certificate: CE, ROHS | ||
Two years warranty | ||
Cooling: By Convection | ||
MTBF: Min250Khrs | ||
Efficiency: more than 80% | ||
Specifications: | ||
Input Voltage |
170-250VAC |
|
Input current |
0.6A |
|
Input Frequency |
47 to 63 Hz |
|
Output Voltage |
12VDC |
|
The sum output current |
6.7A |
|
Max output Power |
80W |
|
Storage temperature: |
-40-80 degree |
|
Operating temperature: |
-25-45 degree |
|
Humidity operating: |
20%-95% |
|
Humidity storage: |
10%-95% |
|
Protections |
Short Circuit |
Auto recovery |
Over-load |
20% exceed is allowed |
|
Over-voltage |
≤255V |
|
Thermal Protection |
≤85 degree |
|
CE |
CE Safety Standard |
Compliance to EN61347-1:2008&EN 61347-2-13:2006 |
EMI conduction & radiation |
Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004 |
|
Harmonic Current |
Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 |
|
Others |
Dimension/Weight |
240*67*50MM/1200g |
Packing/Carton Size |
19pcs/carton / 39.4*25.4*24.5cm |
|
Cable |
The wire of VDE, output with 2 groups 18#2C(300mm) |
|
Housing Material |
Aluminum |
|
Trade terms:
1. T/T West Union, 30% deposit 70% balance before shipment is available for the order upto US$30,000.
2. Lead time: normally in 5-7 workdays after deposit received.
3. Sample policy: Samples are always available for each model. Deliver Immediately once payment
received.
4. Shipping port: Shenzhen, China.
5. Discounts: We offer discount for big quantity.
Delivery detail:
We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive,
or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which
takes about one month to arrive, depending on your actual requirements
Our services:
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.
2. Well-trained and professional sales & after- sale services stuff who can speak fluent English.
3. OEM service is available. Can print your own logo on product, customized the retail box packing.
4. with experienced R&D engineers and strong ability to do ODM projects.
