Specifications
1.Aluminum Shell2.100% full load burn-in test
3.Life time: 50,000 hours
4.Certificate: CE, RoHs
350ma 32350A Constant current driver
Product Information Model: CC-32350A
Features: | ||
Protections: Short circuit/Overload/Over Voltage/Over Temperature | ||
IP protection standard: IP67 | ||
100% full load burn-in test | ||
Certificate: CE, ROHS | ||
One and half years warranty | ||
Cooling: By Convection | ||
MTBF: Min250Khrs | ||
Efficiency: more than 80% | ||
Specifications: | ||
Input Voltage |
170-250VAC |
|
Input current |
0.13A |
|
Input Frequency |
47 to 63 Hz |
|
Output Voltage |
5-32VDC |
|
Output current(Constant) |
350mA |
|
Max output Power |
12W |
|
Storage temperature: |
-40-80 degree |
|
Operating temperature: |
-25-45 degree |
|
Humidity operating: |
20%-95% |
|
Humidity storage: |
10%-95% |
|
Protections |
Short Circuit |
Auto recovery |
Over-load |
20% exceed is allowed |
|
Over-voltage |
≤255V |
|
Thermal Protection |
≤85 degree |
|
CE |
CE Safety Standard |
Compliance to EN61347-1:2008&EN 61347-2-13:2006 |
EMI conduction & radiation |
Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004 |
|
Harmonic Current |
Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 |
|
Others |
Dimension/Weight |
160*30*20MM/210g |
Packing/Carton Size |
50pcs/carton / 34*24*18cm |
|
Cable |
0.75sq.mm. VED wire 200mm |
|
Housing Material |
Aluminum |
|
Derating Curve Static Characteristics
Packing

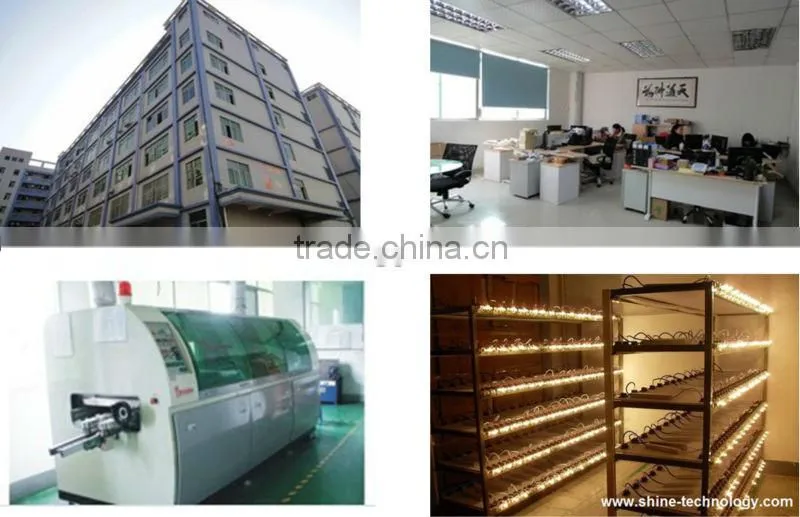

Factory
Certificates
Other Series
Trade Terms
1. T/T West Union, 30% deposit after order confirmed, the balance before shipment.
2. Lead time: normally in 5-7 workdays after deposit received.
3. Sample policy: Samples are always available for each model. Deliver Immediately once payment received.
4. Shipping port: Shenzhen, China. 5. Discounts: We offer discount for big quantity.
Delivery Details
We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which takes about one month to arrive, depending on your actual requirements
