Specifications
ffee 45W waterproof power supply2.IP67 rated,CE RoHS,
3.100% full load burn-in test
4.2 years warranty

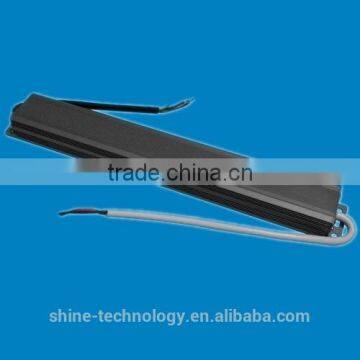

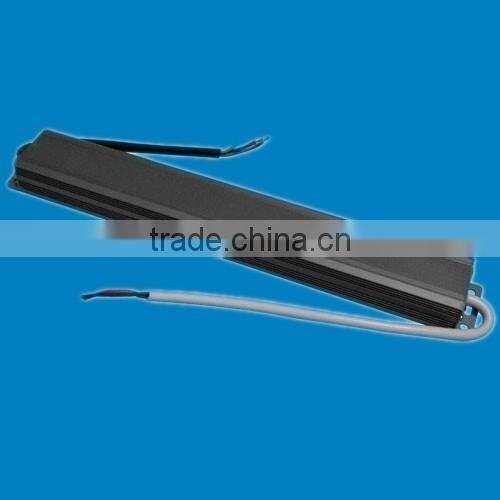

led supplier CE RoHS approved Single output voltage coffee 45W waterproof power supply
| Product Specification |
Feature: |
·Suitable for LED lighting and LED sign applications |
·Protections: Short circuit / Overload / Over Voltage / Over Temperature |
·IP67 design for indoor or outdoor installations |
·Efficiency: 80% |
·100% full load burn-in test |
·Storage temperature: -40-80℃ |
·Operating temperature: -25-45℃ |
·Certificate: CE, ROHS |
·MTBF: Min250Khrs |
·Warranty: Two years |
Specification: | ||
Model |
CV-24045C(coffee) |
|
OUTPUT |
DC Voltage |
24±0.5VDC |
Rated power |
45W |
|
Max current |
1.88A |
|
INPUT |
Voltage |
170-250VAC |
Frequency |
47 ~ 63 Hz |
|
AC Current |
0.37A |
|
Efficiency (Typ.) |
80% |
|
PROTECTION |
Overload |
20% exceed is allowing |
Short Circuit |
Auto recovery |
|
Over Voltage |
≤255V |
|
Over temperature |
≤85Degree |
|
OTHERS |
Cooling |
By convection |
Withstand voltage |
2200VAC |
|
Dimension/Weight |
257*36*28mm/430g |
|
Packing/Carton Size |
24pcs/carton / 34*24*18.5cm |
|
Cable |
0.75sq.mm. VDE wire 200mm |
|
Housing Material |
Aluminum |
|
CE |
CE Safety Standard |
Compliance to EN61347-1:2008&EN 61347-2-13:2006 |
EMI conduction & radiation |
Compliance to EN 55015: 2006+A1: 2007 EN 61547: 2004 |
|
Harmonic Current |
Compliance to EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 |
|
1. T/T West Union, 30% deposit after order confirmed, the balance before shipment.
2. Lead time: normally in 5-7 workdays after deposit received.
3. Sample policy: Samples are always available for each model. Deliver Immediately once payment received.
4. Shipping port: Shenzhen, China.
5. Discounts: We offer discount for big quantity.
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.
2. Well-trained and professional sales & after- sale services stuff who can speak fluent English.
3. OEM service is available. Can print your own logo on product, customized the retail box packing.
4. With experienced R&D engineers and strong ability to do ODM projects.
More other led driver products, Pls visit our website to see more.
