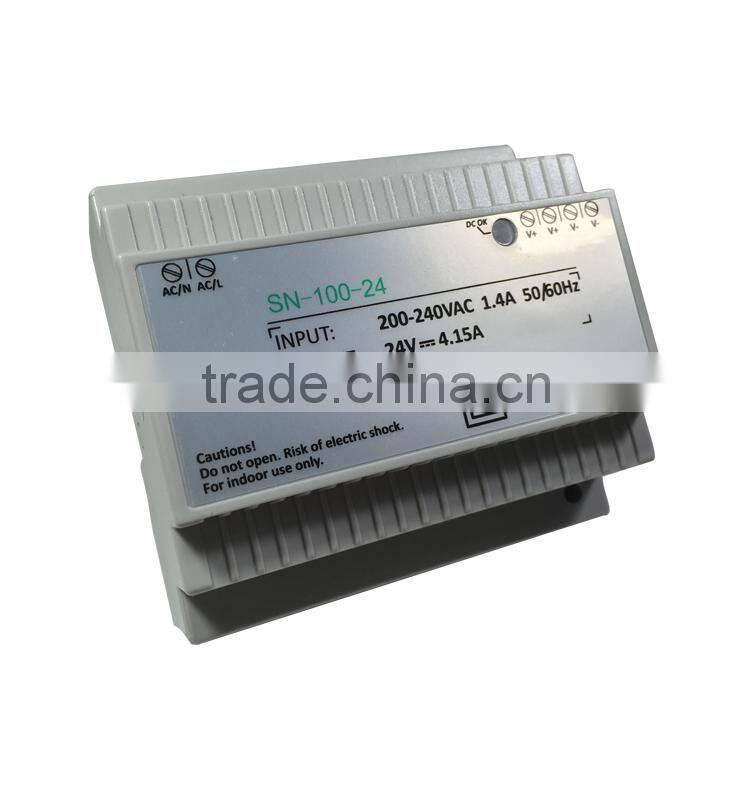

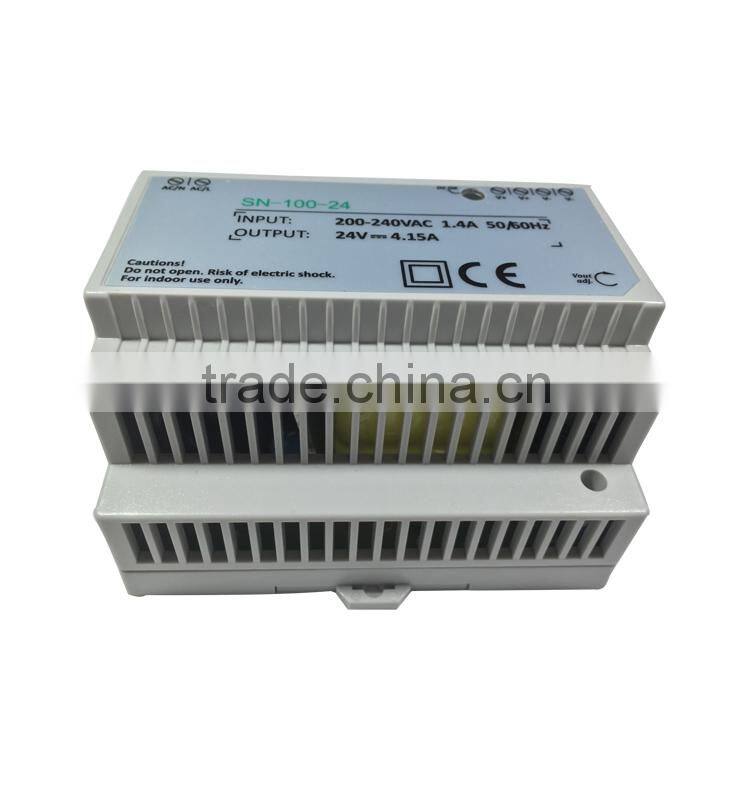

Help Center24V 100W Slim Design Single Output DIN Rail Switching Power Supply Shenzhen
Related Products
-
30W 12V 2.5A Din Rail Single Output Switching Power Supply AC TO DC Led Taransformer With Ce&rohsUS$ 4.99 - 6.99MOQ: 1 Piece -
Hot Sale 60w 24v 2.5a Din Rail Switching Power Supply Of DR-60-24US$ 6.99 - 8.99MOQ: 1 Piece
-
12v 5a 60w ac to dc Constant Voltage Din Rail Power Supply With Ce&rohs, Din Rail Transformer With 2 Years WarrantyUS$ 6.99 - 8.99MOQ: 1 Piece
-
CE Rohs Approved 12V 30W DIN Rail Power Supply With 2 Years Warranty, 30w 2.5a Din Rail TransformerUS$ 4.99 - 6.99MOQ: 1 Piece
-
24 Volt 60w 2.5a Led Power Supply Driver,12v 24v 60w Din Rail Power Supply With ce ROHSUS$ 6.99 - 8.99MOQ: 1 Piece
Welcome to Shine Technology
| About us |
|
Established in 2003, Shine Technology Limited is a professional manufacturer for waterproof led power supplies, led panel lights and led bulbs. Based on long-term experience in LED field, we have become one of most famous and leading exporter of LED products in China. Further more, due to our committed workforce and strict quality control processes, our products boast both high quality and superior design technology.
Our company’s growing very fast year by year, we now have 6 production lines, with more than 150 workers.
All our products comply with CE and RoHS, selling very well in Europe, North America, Austria, Japan and other Asia countries. Adhering to the ideals of "Sincerity, Mutual Benefit, Constant Innovation and Top Quality", we proudly invite all interested companies to contact us for further information about our company or products. We look forward to forming a strategic partnership with your company in the near future.
|
♦ Isolation Class II
♦ Protection: Short circuit,Overload,Over voltage
♦ Cooling by free air convection
♦ Can be installed on DIN rail TS-35/7.5 or 15
♦ LED indicator for power on
♦ 100% full load burn-in test
♦ 2 years warranty
Product Specification
Model |
SN-100-12 |
SN-100-24 |
|
Output |
DC Voltage |
12V |
24V |
Rated Current |
8A |
4.2A |
|
Current Range |
0~8A |
0~4.2A |
|
Rated Power |
100W |
100W |
|
Ripple&Noise |
120 mVp-p |
150 mVp-p |
|
Voltage Adj.Range |
11-15V |
21.6-29.0V |
|
Hold Up Time |
100ms/230VAC |
||
Set up,Rise time |
500ms, 20ms / 230VAC |
||
Input |
Voltage Range |
170-265 VAC 47~63Hz |
|
Efficiency |
87% |
88% |
|
Ac Current |
0.75A/230VAC |
||
Inrush Current |
Cold Start <50A at 230VAC |
||
Protection |
Over Current |
110~130% rated output power |
|
Protection Type |
Hiccup mode, recovers automatically after fault condition is removed |
||
Over Voltage |
Hiccup mode, recovers automatically after fault condition is removed |
||
Environment |
WorkingTemp&Humidity |
-20-60°C 20-90% RH |
|
Storage Temp&Humidity |
-40-80°C 10-90%RH |
||
Safety&EMC |
Safety Standards |
Design Refer to: EN60950 |
|
Withstand Voltage |
I/P-O/P:3KVAC |
||
Isolation Resistance |
I/P-O/P:>100M Ohms / 500VDC |
||
EMC Emission |
Compliance to EN55022 , EN61000-3-2 , |
||
EMC Immunity |
Compliance to EN55024, EN61000-3-3, |
||
Others |
Dimension |
100*97*56mm (W*H*D) |
|
Packing |
0.32 kg/pcs 30pcs/10.18kg/ctn |
||
• Mechanical Specification
• Dimension
Packaging & Shipping
Note: We ship samples or small orders by UPS/DHL/FEDEX/TNT express, which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive. Large quantity will be shipped by sea which takes about one month to arrive, depending on your actual requirements.
Our Company
Factory Corner:
Our Service
1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.
2. Well-trained and professional sales & after- sale services stuff who can speak fluent English.
3. OEM service is available. Can print your own logo on product, customized the retail box packing.
4. With experienced R&D engineers and strong ability to do ODM projects.
Related Products
Trade Terms:
1. T/T West Union, 30% deposit after order confirmed, the balance before shipment.
2. Lead time: normally in 5-7 workdays after deposit received.
3. Sample policy: Samples are always available for each model. Deliver Immediately once payment received.
4. Shipping port: Shenzhen, China.
5. Discounts: We offer discount for big quantity.
