Help CenterHeating Film/Far Infrared Heating Film /floor Heating Film/carbon Film/ Korea Film Heater
Related Products
-
![Far Infrared Heating Film[Parmed-405]](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
Far Infrared Heating Film[Parmed-405]NegotiableMOQ: 2000 Miles -
Floor Heating Film [Parmed-308plus]NegotiableMOQ: 3000 Meters
-
Far Infrared Heating Film [Parmed-305plus]NegotiableMOQ: 3000 Meters
-
Far Infrared Heating Film [Parmed-310plus]NegotiableMOQ: 3000 Meters
-
Underfloor Heating FilmNegotiableMOQ: 3000 Meters

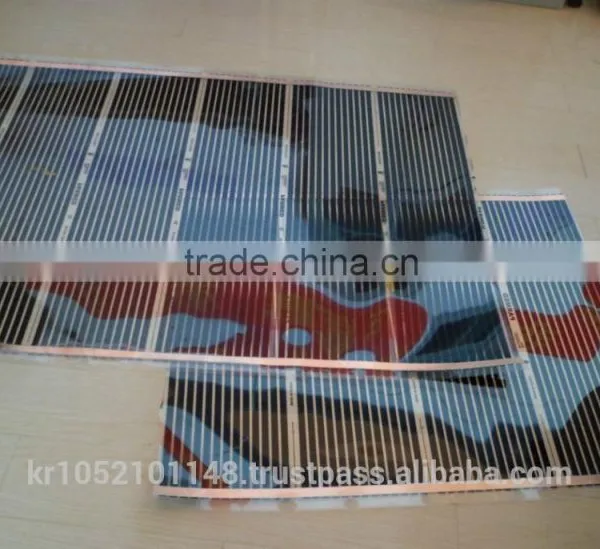

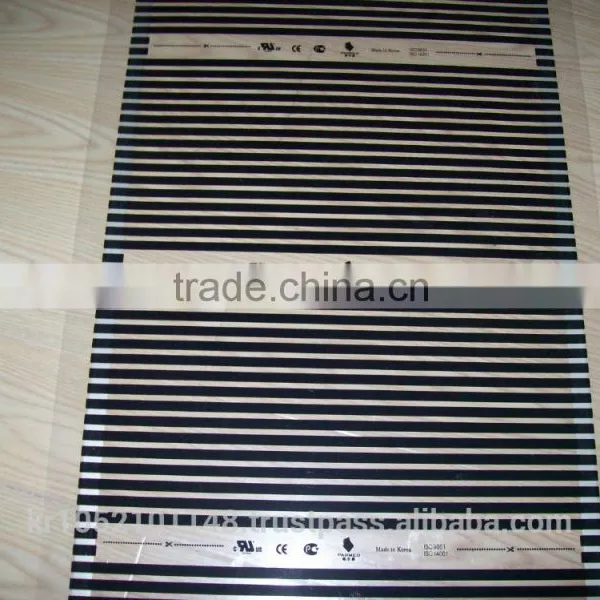

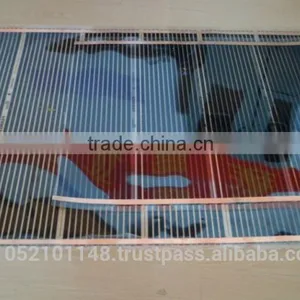

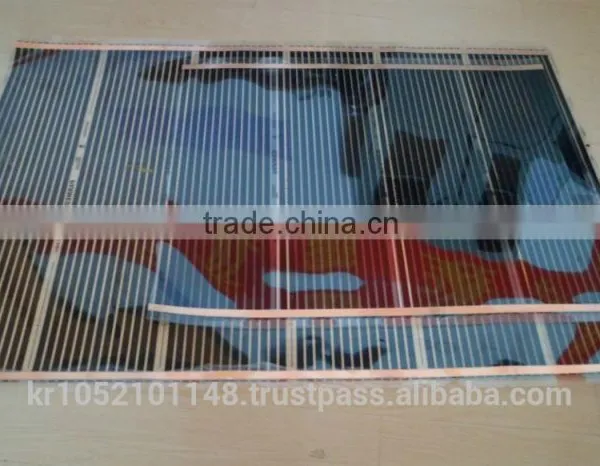

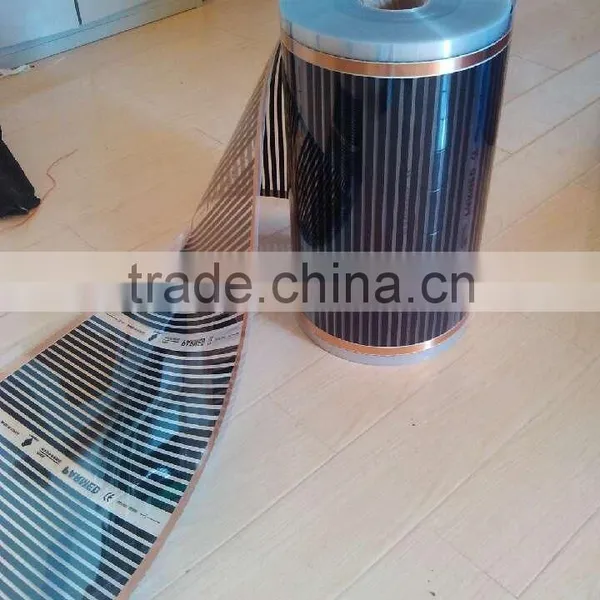

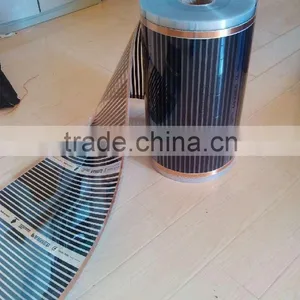

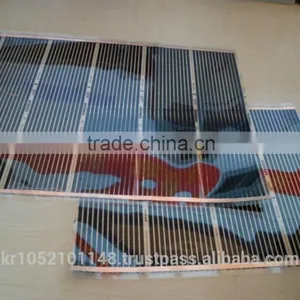

Heating film surface is special polyester film material (PET), black chalk line in the film is the conductive ink, conductive ink is the core of electric heating parts, is equivalent of a lot of shunt resistance, will be heating by electricity.The current carrying metal strip in electrothermal membrane on both sides, is used to connect (resistance) conductive ink, the main material of strip are made of copper and silver.After charge, the conductive ink can release far infrared heat radiations ,which can be absorbed by the objects in the room ,such as walls,the ground,furniture,and hunman body.It can improve the temperature of the room evenly. Let you feel like you in the warmth of the sun in the cold winter. Its comprehensive effect is better than traditional convection heating device.
| Model | Width | Thickness | Packing | Weight | Power | Temp | Usage | |
| (Cm) | (mm) | (m/Box) | (Kg) | (w/m) | (w/sqrm) | (℃) | ||
| Parmed-305 | 50 | 0.338 | 150 | 38 | 110 | 220 | 60 | General Heating Purpose |
| Parmed-308 | 80 | 100 | 41 | 180 | ||||
| Parmed-310 | 100 | 100 | 51 | 220 | ||||
| PTC-305 | 50 | 150 | 38 | 110 | ||||
| PTC-308 | 80 | 100 | 41 | 180 | ||||
| PTC-310 | 100 | 100 | 51 | 220 | ||||
| SanChang | 100 | 50 | 38 | 240 | 240 | |||
| AISIMI-305 | 50 | 0.4 | 100 | 30 | 110 | 220 | ||
| AISIMI-305-M | 50 | 100 | 30 | 140 | 280 | 65 | Sauna | |
| AISIMI-305-H | 50 | 100 | 30 | 200 | 220 | 80-90 | Industry Sauna | |
We are the largest producer of high temperature electrothermal film . Our high temperature electrothermal film is widely used in Korean khan steam room and Chinese khan steam room ,and has excellent user feedback. We not only stay ahead in technology , but also have most experience of the use of high temperature electrothermal film in cases of projects . Our electrothermal film can be used in the engineering case durably ,even without any maintenance .We want our high temperature electrothermal film can be used in sauna room and Khan heat room all over the world, we hope the customer can have such a good product.
|
|
|
|
|
|
