1200mm led tube t8

Specifications

1.Power:20W
2.Imput Voltage:AC100-240V
3.Luminous Flux:1800LM
4.Spec:length 1200mm diameter 25.4mm
5.LED Qty:192pcs

Specification:

1.    Ellipse heat sink which increases the distance between the LEDs and PC cover is good for lighting effect, no dark light and glaring light.

2.    ±90degree adjustable lamp holder is easy for installation.

3.    Using SMD3014 whose thermal resistance is 40°C/w compared 160°C/w of SMD3528 as light source, the luminous flux is higher and the heat is lower.

4.    Replaceable,every parts include the driver can be easily replaced once problem happens.

5.    PF is more than 0.93 and THD is no more than 15%.

6.    CE.PSE,FCC,C-TICK approved.



 The features of LED TUBE

Compared with traditional fluorescent tube, the LED tube is not only more environmental-friendly, also better in energy-efficiency. It has became the main developed products between the national green energy saving lighting project, also will be the main products to replace the traditional fluorescent tubes.

1.  Energy saving: the lighting source is LED, under the same intensity and time, the consumption of energy of LED tube is only 30% of the traditional fluorescent tube, the energy saving can up to 70%.

2.  Environmental-friendly: By use of the semiconductor lighting materials, it’s nontoxic and the waste tubes can be recyclable. Traditional fluorescent tube contains toxic heavy metals such as mercury vapor and phosphor, which can cause pollution to the environment.

3. Long life: The normal using life of LED tube is up to 50,000 hours. It’s the 3-5 times of traditional tubes.

4.Green: LED tube use constant current power supply, which can reducing the led light decay effectively, make the power stability, quick start, no flash, this can effectively protect vision. But the traditional fluorescent tube use AC ballast power supply, which can cause strobe and a grating phenomenon.

5. Soft lighting: LED lighting source has the advantage of good color rendering, no ultraviolet, infrared and other radiation. It’s not like traditional tube can attract a lot of fly around the lights, this can make a clean and comfortable environment.

6.  Input voltage: with AC100-277V wide range input voltage, it can adapt to suitable for different voltage requirement in different countries and areas.





Applicable scope

For most indoor lighting, such factories, offices, shopping malls, hospitals, schools, families, basements, hotels and many like this need energy saving and lighting indoor place.

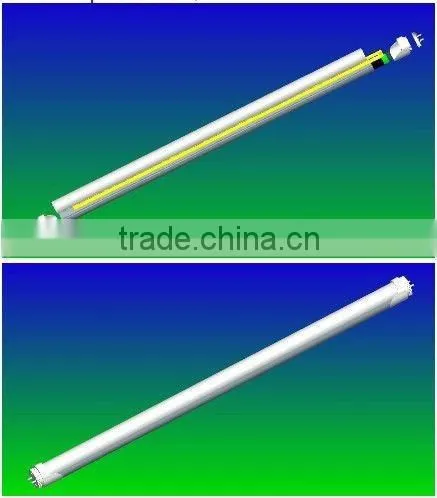

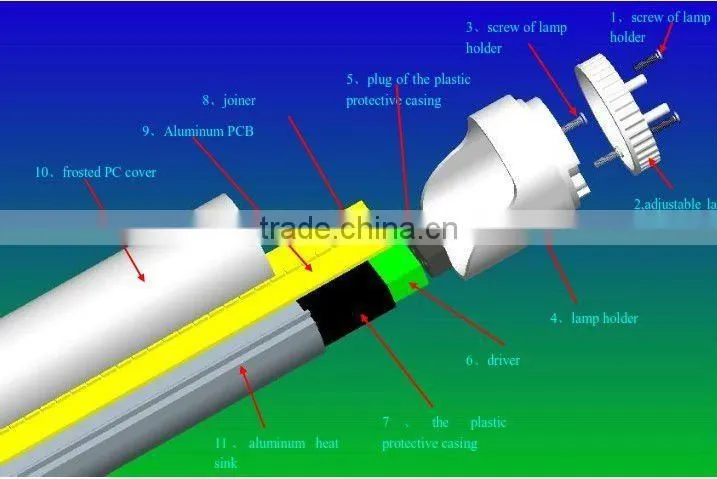

3D View and exploded View

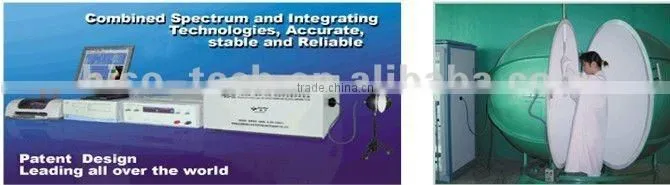

 Test Machine





 Packaging
