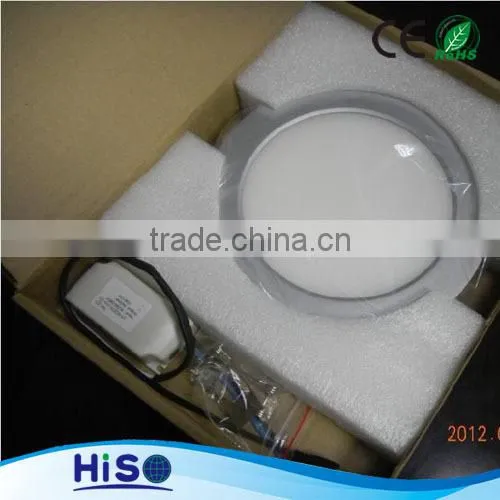

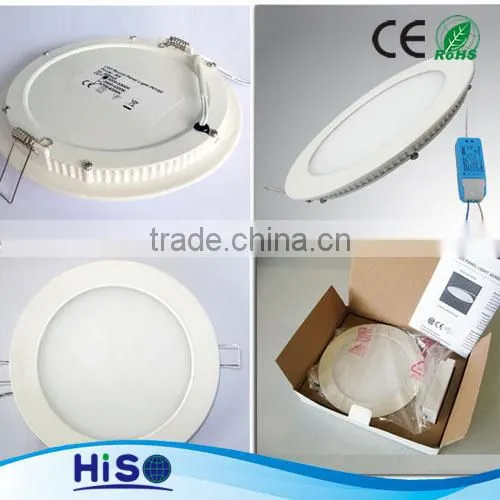

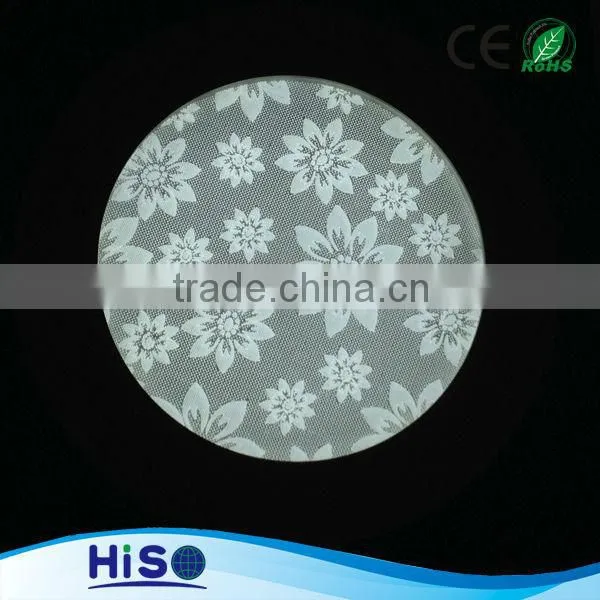

Custom Pattern Epistar SMD2835 300mm Diameter 12W Round Led Panel Light
US$ 9 - 21
MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
Epistar smd 3014
Warranty(Years):
3
Input Voltage(V):
ac85--265
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Laser Defined Pattern Panel Light for Home DesignUS$ 9 - 21MOQ: 1 Piece -
Custom Pattern 12W Round Led Panel LightUS$ 9 - 21MOQ: 1 Piece
-
Laser Pattern 12W Round Led Panel LightUS$ 9 - 21MOQ: 1 Piece
-
Epistar SMD3014 300mm Diameter 12W Led Light PanelUS$ 10 - 22MOQ: 1 Piece
-
Epistar SMD2835 240mm Diameter 15W Led Round Panel Light IP44 AC85-265VUS$ 10 - 19MOQ: 1 Piece
LED Light Source
Epistar smd 3014
Warranty(Years)
3
Input Voltage(V)
ac85--265
Lamp Power(W)
18
Lamp Luminous Flux(lm)
1100-1300
Lamp Luminous Efficiency(lm/w)
70
Color Temperature(CCT)
Other, 2700-6500k
Working Temperature(℃)
-20, 50
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum Alloy
IP Rating
IP44
Certification
CE, EMC, FCC, LVD
Place of Origin
Guangdong, China
Brand Name
Hiso
Model Number
HS-PR30-18I
Product Description
| MODEL NO | HS-PR30-18I |
| Power consumption | 18W(±10%) |
| Initial luminous flux | 900~1000lm |
| Beam Angle | 160°±5° |
| Input Voltage | AC 90~265V @ 50/60Hz |
| Power factor | >0.90@220V |
| LED Quantity | SMD 3014 165PCS |
| Initial luminous efficacy | 70±5 lm/W(4000K) |
| Correlated Color Temperature | 2700K~6500K(Optional) |
| Working Life-span | 50,000 Hrs |
| Color Rendering Index (CRI) | 80±5(6000K) |
| IP Rate | IP44 |
| Operate Temperature | -20°C-50°C |
| Storage Temperature | -30°C-60°C |
| Measurement (LxWxH mm) | 300mmx13mm |
| Net Weight(g) | 1.0kg |
SMD3014 300mm Diameter 18W led Round panel light
1. Wide input voltage, available for whichever country,region.
2. Use imported Epistar or lumanmax led chip
3. High efficiency LED and constant current LED driver With TUV CE certification
4. Pure aluminum frame with bright silver processing,Good heat dissipation,light maintenance rate 65%
5. Using imported guide plate from Japan Mitsubishi /Taiwan CHIMEI, which is more than 80% for the rate of light guide
6. Long lifespan- 50,000hours
7. No contains of ultraviolet and infrared light
Packaging & Shipping
Our Services
1.Quick response for inquiry,and fast sample delivery
2.New products design ability,OEM&ODM are welcomed
3. Technical support for the light application

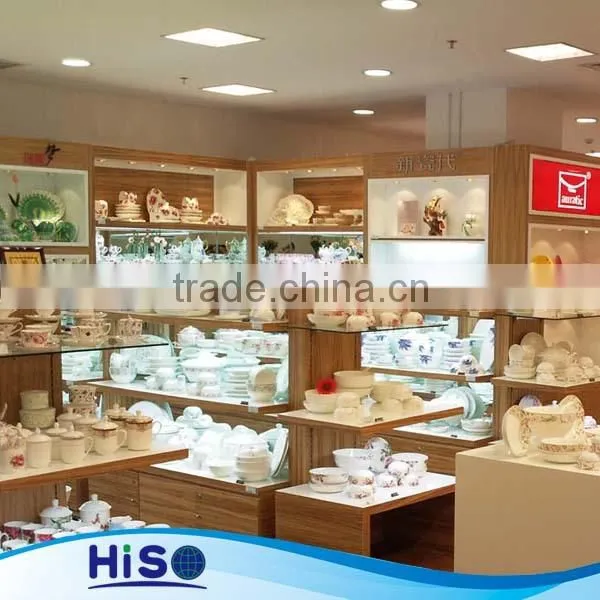

Light Application
