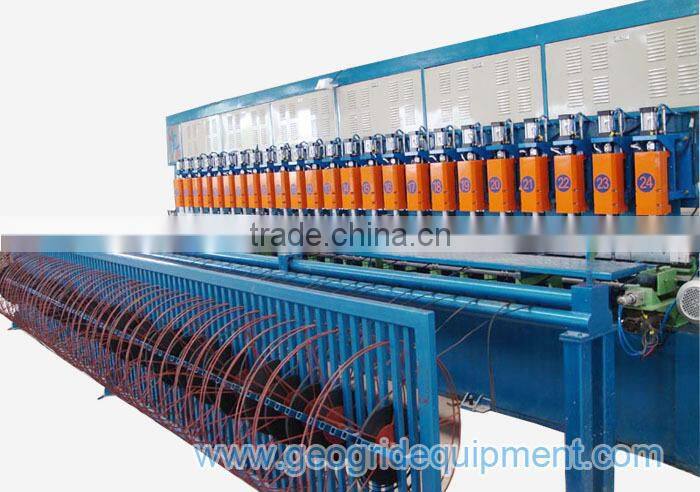

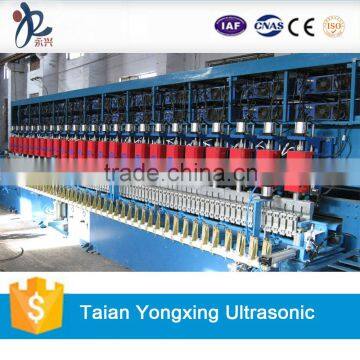

1.Equipment photo:

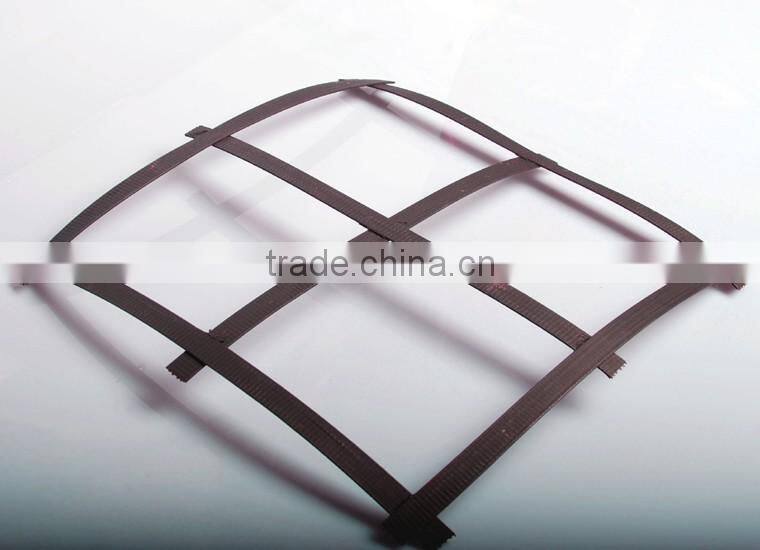

2.Equipment products:
3.Current model:
YGXR-4000,YGXR-6000,YGXR-8000
Note:Machine can be customized.Pls contact us for any further information.
4.Equipment production:
The equipment introduces the most advanced ultrasonic technology from Germany .It is composed by many Ultrasonic Plastic Welders of 2800W,15KHz.Low electricity –consuming,long serving life,and high welding accurancy.
5.Equipment features:
1.Touch-screen display and parameter setting, imported piezoelectric ceramic transducer, the output strength and stability.
2.Color display touch-screen control panel.
3.Multi-language you set, easy to use.
4.Levels of adjustable mold design, mold fast and easy adjustment.
5.The new power amplifier circuit, power is more robust, more durable transducers,
6.Frequency automatic tracking, a variety of parameter settings. High degree of automation in the domestic production of similar products in the leading position.
6.Improvement of the machine:
1. Floating feeding bracket, to keep operating height (don’t need operator bend down), operation is more easy;
2. Independent units (frame, generator, retaining clip etc.), the welding pitch will be easy to be adjusted;
3. New type welding horn structure, life time is longer, welding strengthen is better;
7.Machine application:
This machine can be used to produce steel plastic geogrid,convex node steel plastic geogrid,PP plastic geogrid.etc
8.Technical parameters:
ITEM |
YXGR-4000 |
YXGR-6000 |
YXGR-8000 |
No.of welding heads |
16 |
24 |
32 |
Max power(KW) |
41.6 |
62.4 |
83.2 |
Size of the equipment(L*W*H)(m) |
6.0*6.0*2.2 |
7.0*8.0*2.2 |
8.0*10.0*2.2 |
Weight(t) |
4.8 |
5.7 |
8.5 |
Rated input voltage |
AC380V N50-60HZ |
||
Rated input pressure |
0.6-0.8MPa |
||
Volume of air pressure |
1.5-2.0M3 2.5-3.0M3 |
||
Transverse weld spacing (mm) |
60~250 adjustable |
||
The longitudinal weld spacing(mm) |
60~250 adjustable |
||
The whole machine welding width (m) |
4m, 6m, 8m adjustable |
||
Daily output |
10000~18000 |
||
