Equipment Introduction:
The equipment is used to weld mining geogrid for coals when exploiting mines. The Mining Geogrid Equipment is composed by 8 Ultrasonic Plastic Welders of 2800W, 15KHz. The equipment introduces the most advanced ultrasonic technology from Germany. The pneumatic system uses the best Airtac Material in China, and adopts imported PLC controlling system and touching screen demonstration.

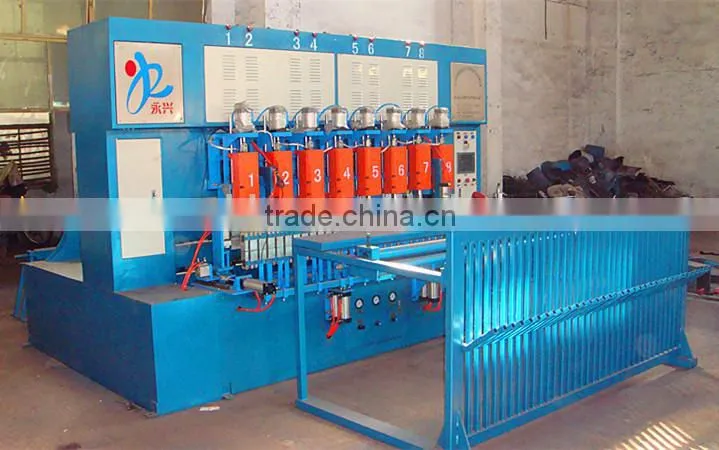

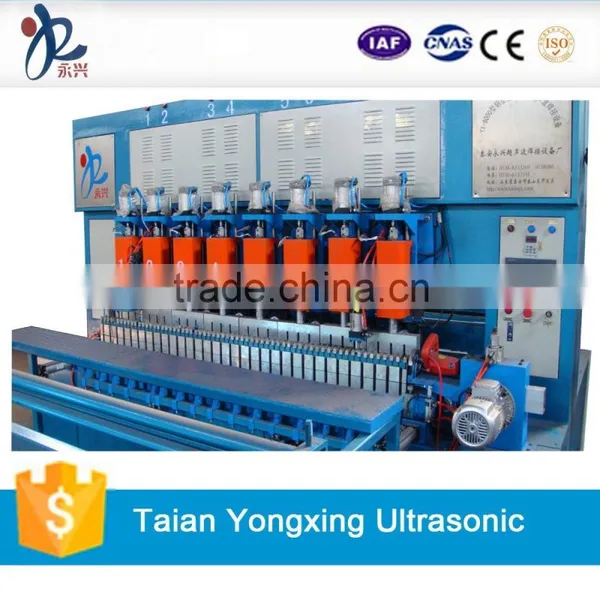

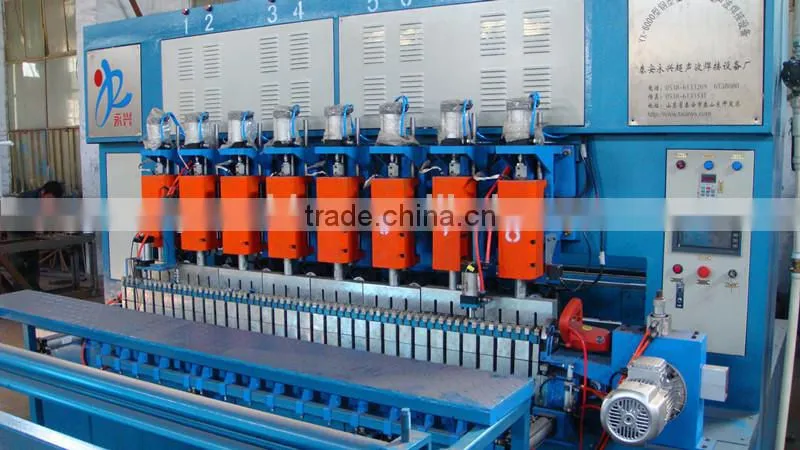

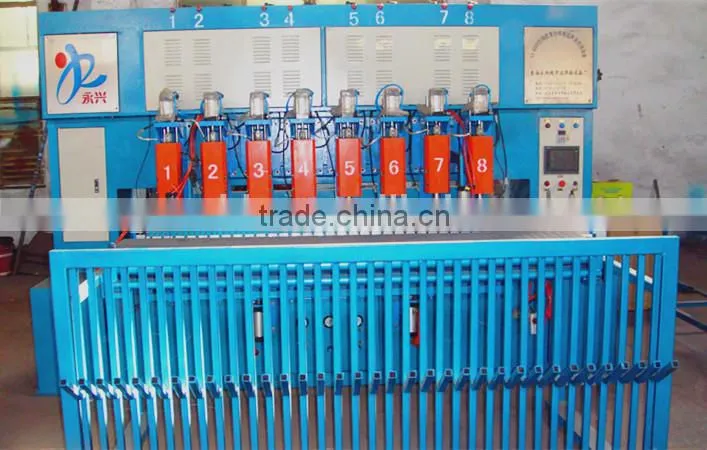

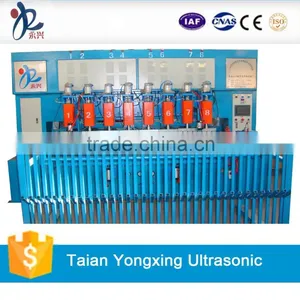

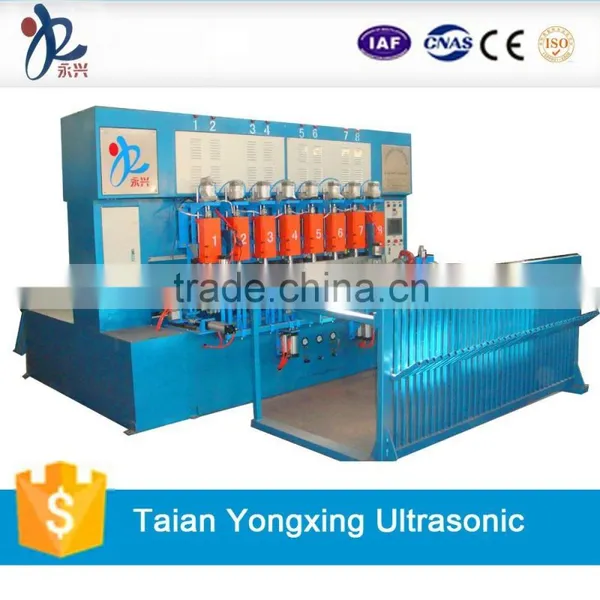

Display from Different Viewing Angles:
Equipment Features:
1. The controlling system adopts imported PLC control system.
2. Piezoelectric ceramics transducer imported from Germany.
3. Horns are made of aviation aluminum alloy from USA.
4. The pneumatic system adopts the best Airtac Material in China.
5. Frequency automatic tracking, different parameter settings. High degree of automation in domestic production of similar products in the leading position.
6. The intension of mining geogrid could be adjusted between 20KN--200KN, the geogrid size is 50mm*50mm.
Equipment Technical Parameters:
Item |
Specification |
Item |
Specification |
No. of welding heads |
8 |
The whole machine welding width |
1m~2m |
Max power(KW) |
12 |
Volume of air pressure |
1.5~2.0m³ |
Size of the equipment(L*W*H)(m) |
5.0*4.0*2.2 |
Transverse weld spacing |
40mm, 50mm, 65mm |
Rated input voltage |
AC380V 50-60HZ |
The longitudinal weld spacing |
40mm, 50mm, 65mm |
Rated input pressure |
0.6~0.8MPa |
Daily output |
1000 |
Main Equipment Components Display:
1. Intelligent Automatic Frequency-tracking Ultrasonic Generator:

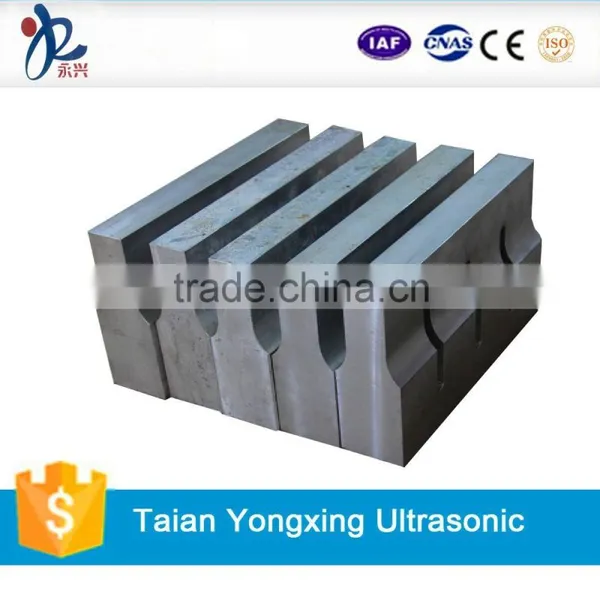

2. Ultrasonic Horn made of Aviation Aluminum or Titanium:
3. Piezoelectric Transducer from GERMANY with strong and steady output:
Equipment Advantages:
1. Flexible and stable mechanical working, fully automatic production;
2. Improve welding quality greatly, superior welding effects;
3. Improve working efficiency greatly, simple operation and laborsaving, reduce work intensity and safety danger;
4. Lower electricity-consuming, long longevity and high welding accuracy.
Equipment Product Demonstration:
The square-shaped steel-plastic net is applied on highways, municipal projects, land reclamation, dam protection and building. It has high intension and excellent flaming resistance and anti-static function, so it's the best choice to be "the roof of the coal mines" and it has received good comments from home and abroad.
Our Advantages:
1. We have our own factory and professional designers. We can manufacture what you need with competitive price totally as your requests;
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in equipmet design and engineering construction;
3. Different country has different environment, voltage and other elements which related to production. Don't worry we have the most professional engineers to clear all the concerns and promise the regular production in your country.
We are looking forward to your sincerely cooperation. If you have any questions, please feel free to contact us:
