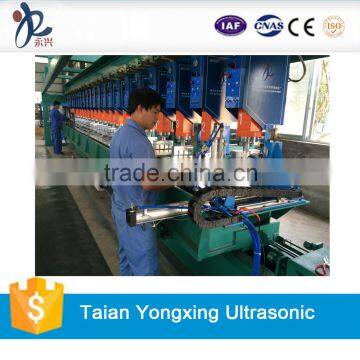

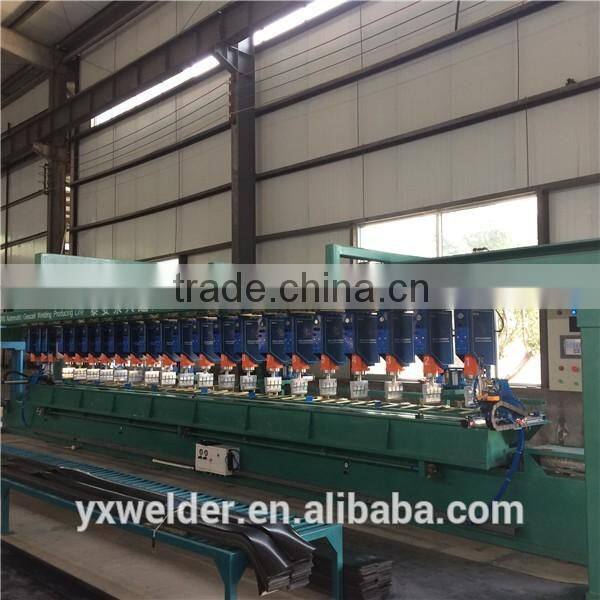

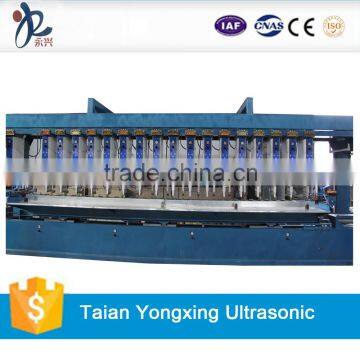

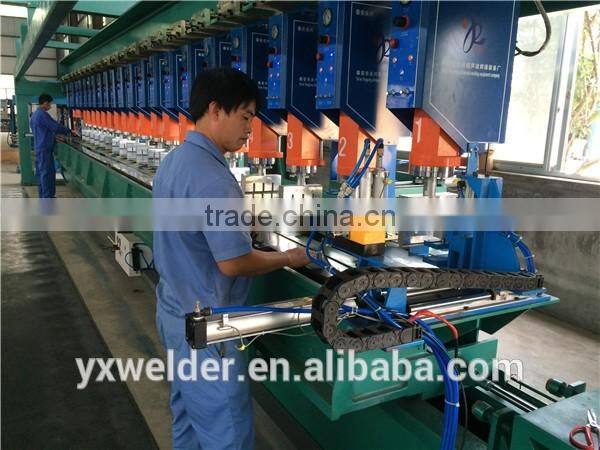

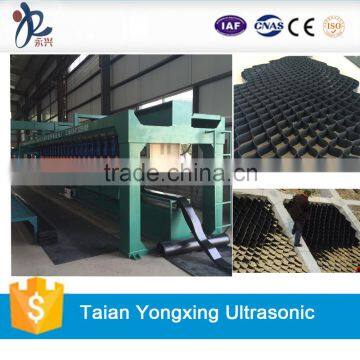

Ultrasonic PE Geocell Welding Machine
YXGC-9000 Ultrasonic PE Geocell Welding Machine is the most advanced ultrasonic-applied equipment for geocell-welding in our country:
1) The ultrasonic PE geocell welding machine adopts advanced YX series ultrasonic plastic welding machine;
2) VB series complied program control machine, and the whole machine adopts flexible composed design;
3) The equipment adopts PLC control system, touching screen demonstration and parameter hypothesis;
4) Imported with piezoelectric transducer from Germany, the horns adopt aviation aluminum alloy from USA, and they could be adjusted horizontally and fast;
5) LCD colorful demonstration;
6) Frequency automatic tracking;
7) The air filtration system using 3 cubic refrigeration dryer;
8) Welding sheet size: 5cm, 10cm, 15cm, 20cm, 25cm, 30cm x 1000cm, 0-99 sheet can be set arbitrarily;
9) Welding material :PP, PE, HDPE, PVC.

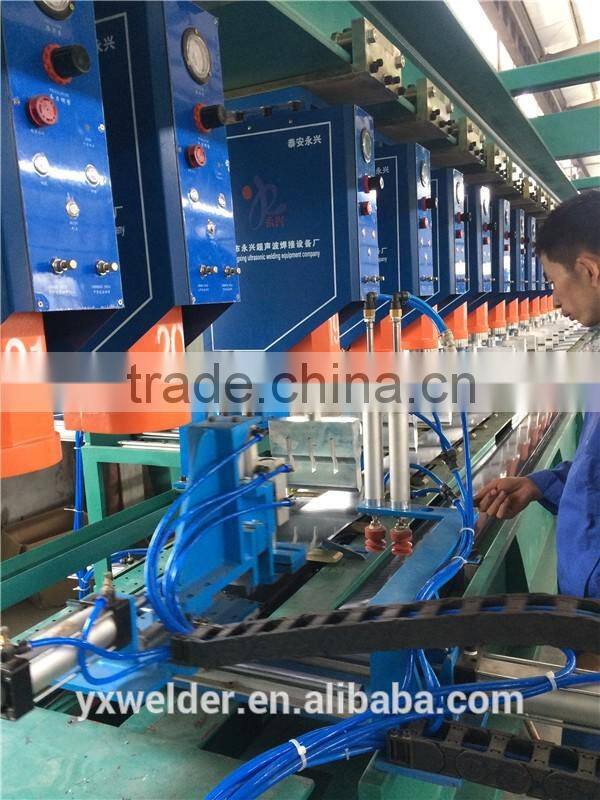

1) Robotic-hands feeding, robot operation, totally automation to save labors greatly;
2) New automatic frequency-tracing Generator, a variety of Parameter-settings, better welding quality, high automation, leading position among similar products in domestic market;

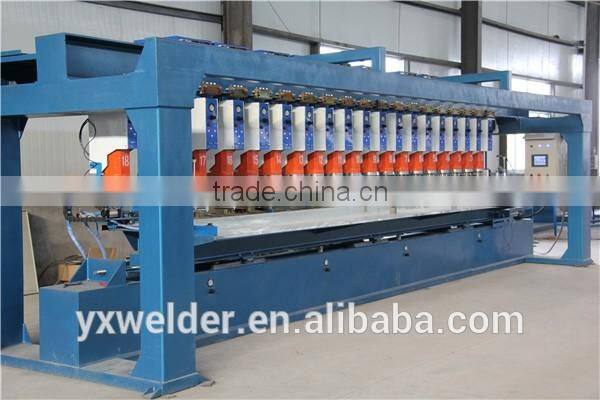

3) Wider H-beam of 400*400 for working table and gantry beam, auxiliary reinforcement system 1 set, feeding table 1 set (including positioning suckers ), the geocell slideway is high-precision square type and widens 10CM;

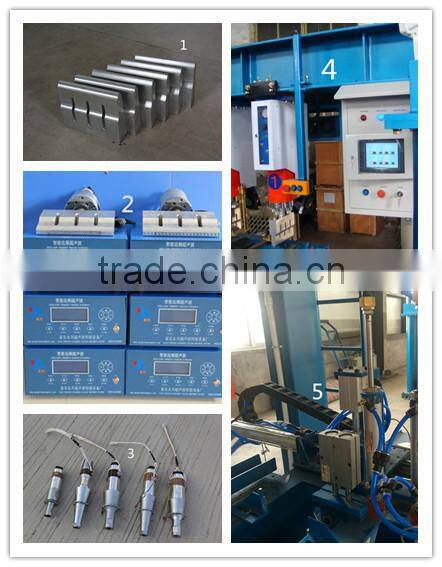

1: ultrasonic horn made of aviation aluminum alloy from USA;

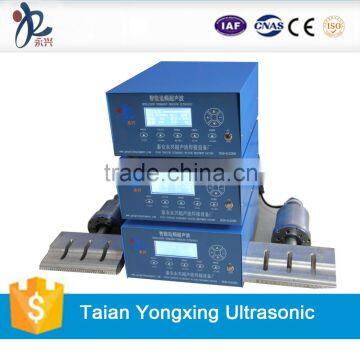

2: automatic frequency-tracing generator;
3: ultrasonic transducer imported from GERMANY;
4: LCD colorful demonstration system;
5: robotic-arm, totally automatic operation.
Model |
YXGC-6000 |
YXGC-7500 |
YXGC-9000 |
YXGC-10000 |
Welding Digit |
15 unit |
18 unit |
22 unit |
24 unit |
Output Power |
36.6KW |
46.8KW |
57.2KW |
59.8KW |
Ultrasonic Vibration Friction Power |
23KW |
27KW |
33KW |
36KW |
Dimension (m) |
6.0*2.0*2.2 |
9.0*2.0*2.2 |
11.0*2.0*2.2 |
11.0*2.0*2.2 |
Weight (T) |
5.8 |
6.0 |
6.5 |
7.0 |
Rated Input Voltage |
AC380V 50-60Hz |
|||
A. Solid railway roadbed;
B. Highway's soft foundation;
C. Withstand aggregate of embankments, retaining wall;
D. Running shallow river;
E. Prevent landslides;
F. On independent wall, wharf, breakwater and so on;
G. Govern the desert, beaches and riverbed banks... ...
1. We have our own factory and professional designer. We can manufacture what you need with competitive price totally as your requests;
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in equipmet design and engineering construction;
3. Different country has different environment, voltage and other elements which related to production. Don't worry we have the most professional engineers to clear all the concerns and promise the regular production in your country.
1. Are you a factory or trading company ?
We're a factory. Our factory located in Taian city, it takes about 40 minutes from Taian high-speed railway station.
2. Can you customize the machine for me for my own design ?
Sure, we can made OEM and ODM machines for you as long as you can tell us your idea specifically or provide drawings.
3. Do you have any technical support oversea, and how do you guarantee your quality ?
Yes, we have a profesional oversea post-service engineers team.
We're responsible for quality of the machine for 1 year.
And engineers will provide technical support at any time.
