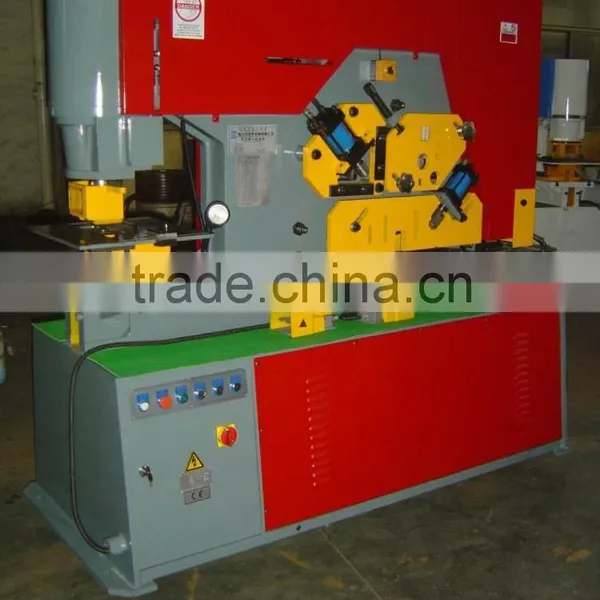

Q35Y-16 hydraulic punching and stamping machine/ironworker
- 90 Set / Sets per Month
- shanghai qingdao ningbo
- T/T L/C D/P D/A Credit Card PayPal
- Professional High Precision Wide Application J23-25 cnc turret punching machines
- High Precision Wide Application J23-25 c frame punch press
- Professional High Precision Wide Application J23-25 hydraulics
- High Precision Wide Application J23-25 c frame fixed table punching machine
- Factory Sale High Precision Wide Application J23-25 construction material making machine
- High Precision Wide Application J23-25 scrap metal cutting machine for punching machine
Product Details
Condition: | New | CNC or Not: | CNC | Power Source: | Hydraulic |
Place of Origin: | Anhui, China | Brand Name: | Hellen | Model Number: | Q35Y |
Voltage: | 380V/220V Optional | Power(W): | 7.5KW | Weight: | 1-6T |
Dimension(L*W*H): | 1160.900.2250 | Certification: | CE ISO | Warranty: | 2 Years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction to the structure and properties:
Q35Y Series hydraulic combined punching and shearing machine can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on. YSD industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come. This machine is typically in stock for quick deliveries.
1.Punching
Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching. Large viewing window on stripper swing away design for ease of operation. large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
2.Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar, channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting. Large 15″squaring arm with inlaid scale. Special anti-distorted blade for quality cutting. Lower blade has four usable edges. There is screw allow for gap adjust no shim needed.
3.Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning. The notching section of this hydraulic ironworker is perfect for notching out metal plate, angle iron and much more. The notching station also has an oversized table with material stops. This section of the machine can also be outfitted with the optional vee notched.
4.Bending
Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safety, function, capability and maintenance.
Model | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
Pressure(Ton) | 55 | 75 | 110 | 140 |
Max.cutting thickness(mm) | 16 | 20 | 25 | 30 |
Plate strength(N/mm2) | ≤450 | ≤450 | ≤450 | ≤450 |
Cutting angle(degree) | 7° | 8° | 8° | 8° |
Sheraing size of one stroke(mm) | 16*250 | 20*330 | 25*330 | 30*355 |
Ram stroks(mm) | 80 | 80 | 80 | 80 |
Number of strokes(cpm) | 8 | 8 | 6 | 6 |
Throat depth(mm) | 300 | 355 | 400 | 600 |
Punching thickness(mm) | 16 | 20 | 25 | 26 |
Max.Punching diameter(mm) | 25 | 30 | 35 | 38 |
Power of main motor(kw) | 4 | 5.5 | 7.5 | 11 |
Overall dimensions(L*W*H)mm | 1640*730*1770 | 1860*800*1900 | 2355*960*2090 | 2680*1040*2300 |
Weight of machine(kg) | 1600 | 2000 | 4800 | 6800 |
1 PVC film covered punching and shearing machine 2.Whole machine fixed in the container with steel rope,very safe
1.All machines have been tested by 48 hours before ship out.
2.All products have 2 year warranty.
3.Supported 24 hours online service. If any problems happen, our team will do our best to solve the problems.
4.If any component is damaged during guarantee time. we can send the component to the customer by DHL freely.
