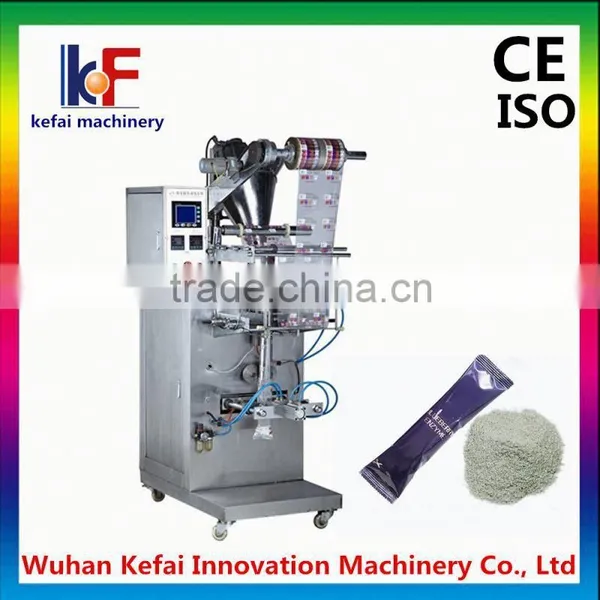

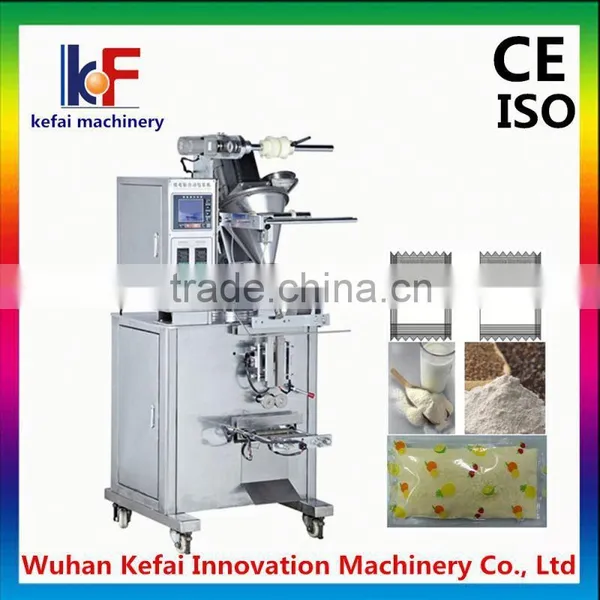

hematite powder packing machine
Application:
- It can pack all kinds of powder material, such as sugar, coffee powder, pepper, chili powder, flour, solid drink, milk powder etc.
- It’s widely used in food industry, chemical industry and others.
- It has stable performance, easy operation, and PLC control.
Bag length: 30mm-180mm
Bag width: 20mm-190mm
With date printing

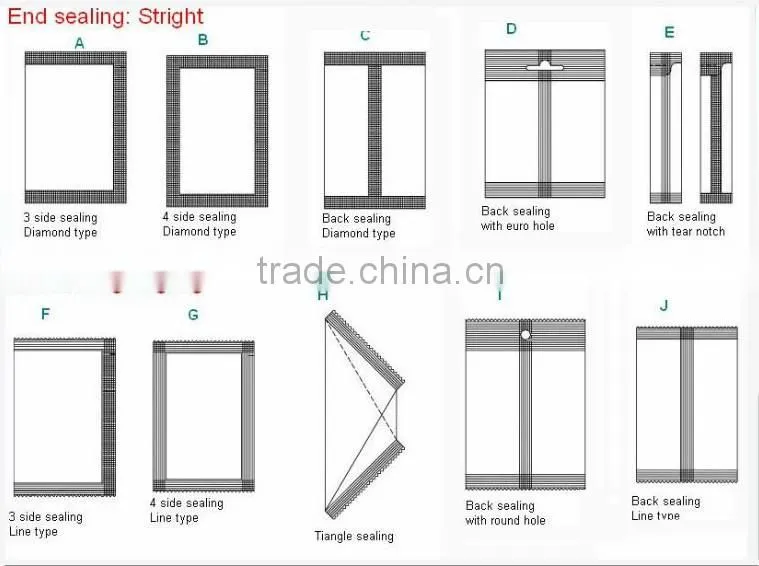

Sealing way: 3-side sealing, 4-side sealing, back sealing
Material: carbon steel, stainless steel (can be choosed)
hematite powder packing machine

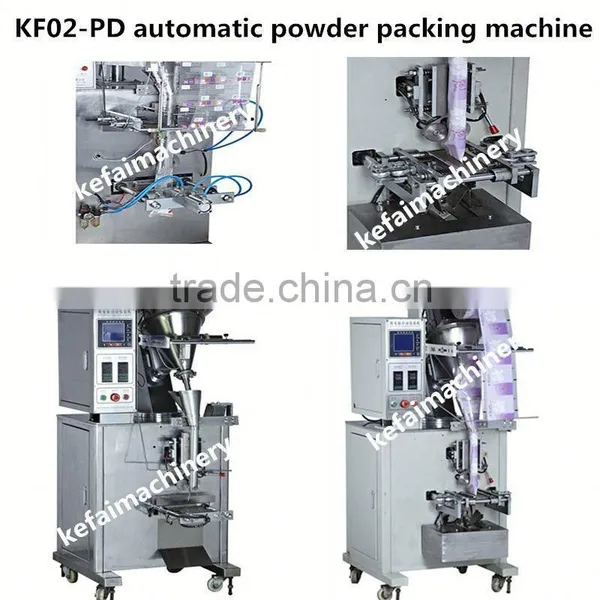

Machine details:
1.Working process:
put the bag film in machine → start working → bag making → filling material into bag → bag sealing
→ date printing → cutting. Fully automatic control.
2.Bag-making system adopts step motor with high precision(error is less than 1mm).

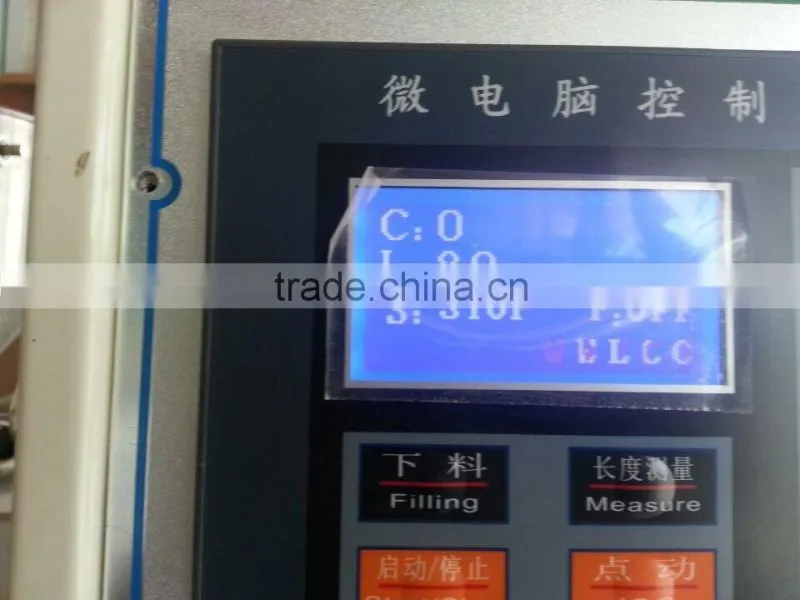

3.PLC Controller adopts Chinese or English displaying, can see the working conditions directly.
4.Intelligent temperature control by temperature controller to make heat balance better.use bilingualdisplay
screen control system and stainless steel cabinet
5.Host controller adopts PLC control, motor inverter is used for automatic completion of the photoelectric
with standard digital automatic adjustment of the cursor to meet the precise positioning.

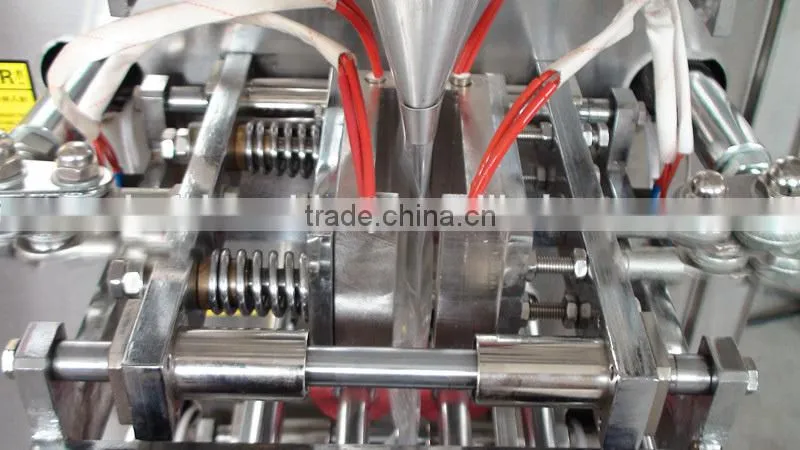

6.Heating sealer with 4 sides of heating control, each sealing side temperature can be adjusted separately with good heat-balance to ensure the seal in good quality, suit for a variety of packaging materials.
7.Ribbon printer is addable according to customer needs, which can print one to three lines letter
date of produce and batch number.
hematite powder packing machine
Techinical parameters:
Model |
KF02-PD-S1 |
KF02-PD-S2 |
KF02-PD-S3 |
Sealing style |
4 side sealing |
4 side sealing |
4 side sealing |
bag-making length |
30-150mm |
50-180mm |
60-210mm |
Bag-making width |
30-145mm |
70-190mm |
90-240mm |
Packing film width |
60-240mm |
160-380mm |
180-420mm |
Packing capacity |
2-20ml |
5-80ml |
10-200ml |
Packing speed |
35-70 bags/min |
30-40 bags/min |
20-30 bags/min |
Filling method |
Screw filling |
Screw filling |
Screw filling |
power |
1.2KW |
1.5KW |
1.5KW |
Overall Dimension |
760×980×1800mm |
900*1250*2100mm |
900*1250*2100mm |
Weight |
280KG |
320KG |
320KG |

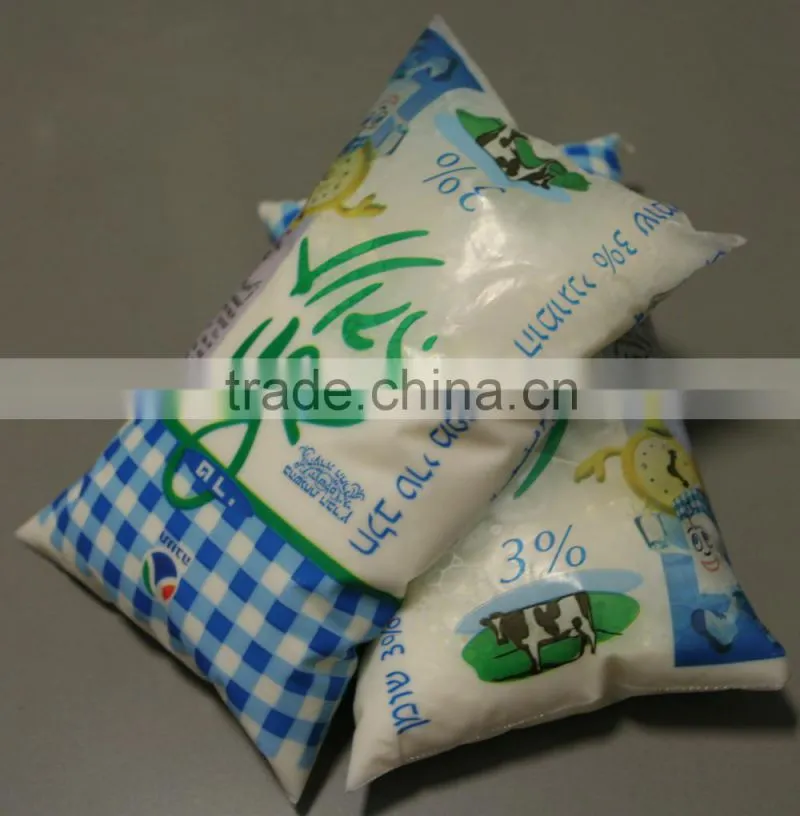

Do you know how to pack the milk powder into the bag ?
Bag Forming!

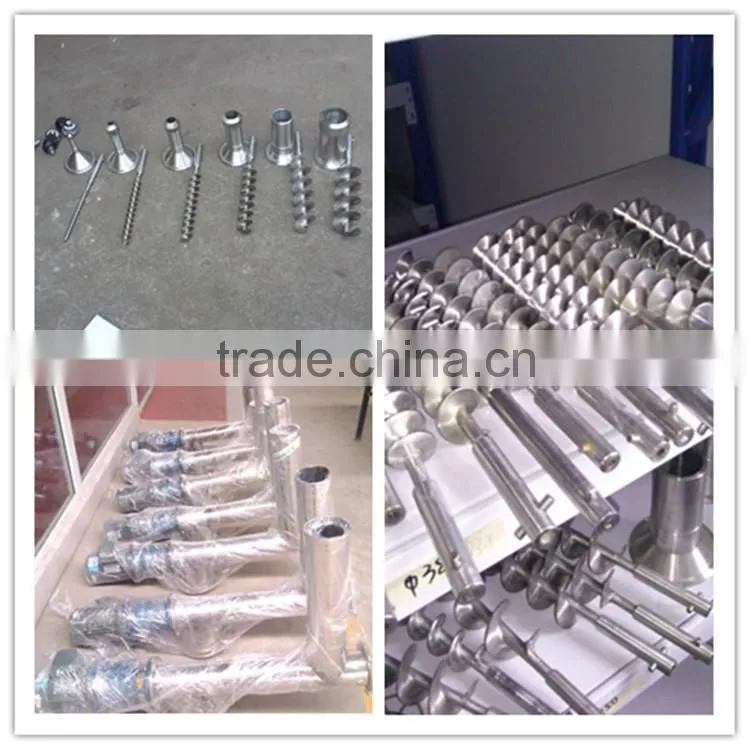

Auger Metering!
hematite powder packing machine

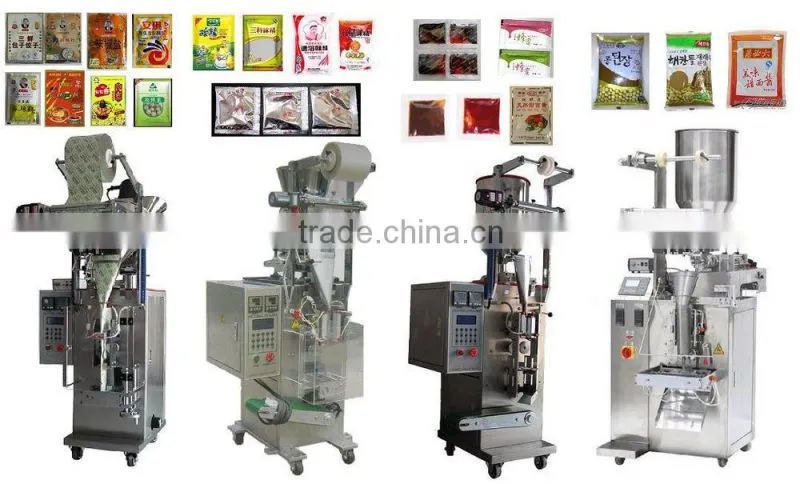

We also provide other automatic packing machine, just contact us !
Contact us now
...
