Specifications
SPCC grade lacquered tinplate1)Grade : SPCC,SPHC,MR
2)Temper:T2,T3,T4,T5,T6,DR8,DR9
3)Tin Coating:1.1/1.1;2.8/2.8;5.6/5.6
Best Price and high quality DR8 BA CA SPCC grade lacquered tinplate
It is for making all types of containers such as food cans, beverage cans, and artistic cans, tea cans, painting cans, chemical package cans and dry food package cans, metal printing etc
The Detail of SPCC grade lacquered tinplate :
| NO. | More Detail | |
| 1 | Standard | GB2520-2000, JIS G3303-2002 and DIN EN10202-2001 |
| 2 | Material | SPCC,SPHC,SPHE,MR |
| 3 | Thickness | available:0.15mm--0.5mm |
| 4 | Width | available:600--1200mm |
| 5 | Temper grade | T1-T5,DR8-DR10,BAandCAboth. |
| 6 | Tin coating | ordinary 1.1/1.1;2.8g/2.8g, 5.6g/5.6g, We also can produce according to customers' requests |
| 7 | Coil diameter | ID 420/ 508mm, OD from 1,000 to 1,250mm |
| 8 | Package |
Thin plastic film, rust-proof paper, metal cover, metal corner, metal band, wooden skid. by sheet or coils according customer's require. |
| 9 | Applications |
metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries |
The Coating Weight:
| Type | Designation of tin coating weight | Min.average tin coating weight(g/m2) | Former Coating Designation |
| Equal tin coating | 1.4/1.4 | 1.2/1.2 | #15 |
| 2.2/2.2 | 2.0/2.0 | #20 | |
| 2.8/2.8 | 2.45/2.45 | #25 | |
| 5.6/5.6 | 5.05/5.05 | #50 | |
| 8.4/8.4 | 7.55/7.55 | #75 | |
| 11.2/11.2 | 10.1/10.1 | #100 | |
| Differentially Coating | 1.4/2.8 | 1.2/2.45 | #15/25 |
| 2.2/2.8 | 2.2/2.45 | #20/25 | |
| 2.8/5.6 | 2.45/5.05 | #25/50 | |
| 2.8/8.4 | 2.45/7.55 | #25/75 | |
| 2.8/11.2 | 2.45/10.1 | #25/100 | |
| 5.6/8.4 | 5.05/7.55 | #50/75 | |
| 5.6/11.2 | 5.05/10.1 | #50/100 | |
| 8.4/11.2 | 7.55/10.1 | #75/100 |
Temper of printed tin plate :
Features of SPCC grade lacquered tinplate :
1. Excellent paint adhesion can be used to produce DRD cans and plastic contact tank
2. Excellent heat denaturation temperature baking does not change color
3. Excellent resistance to sulfur
4. Excellent corrosion resistance
5. Alkali resistance excellent more suitable for basic content packaging

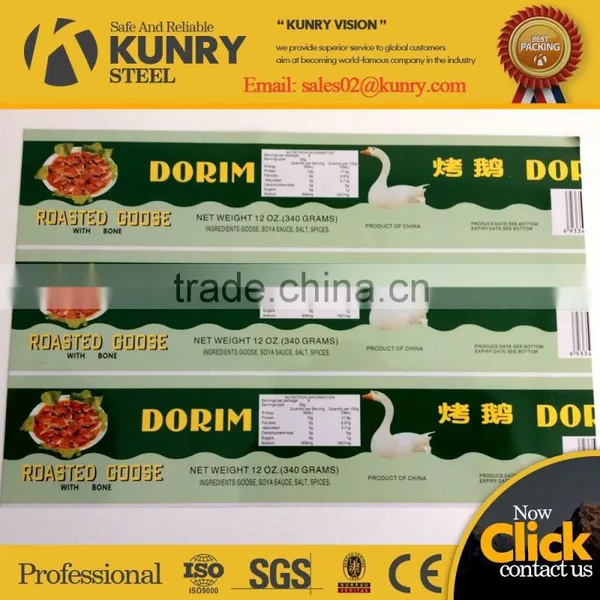

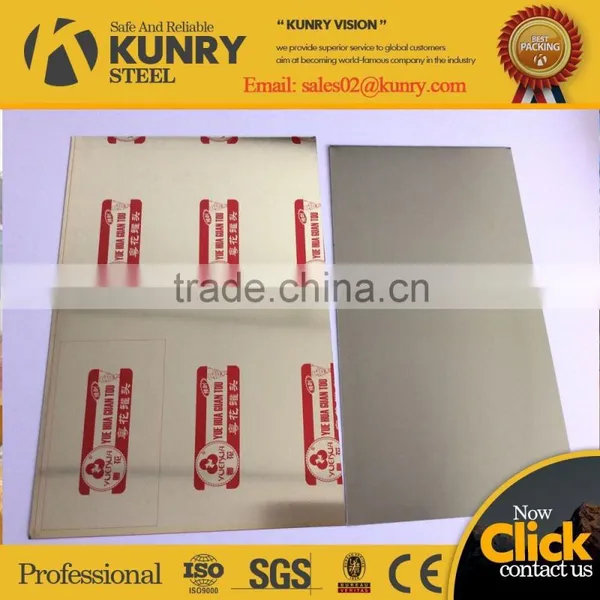

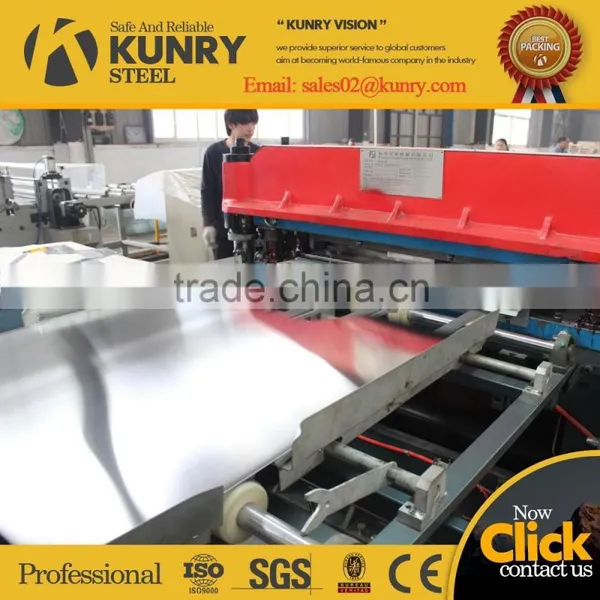

Photos Of SPCC grade lacquered tinplate :

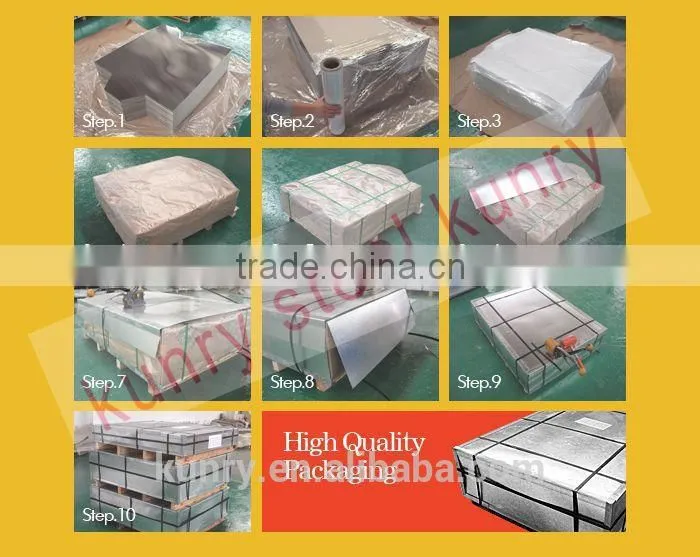

The Packaging of Printed Tinplate sheet :
