Home > Lights & Lighting > LED Outdoor Lighting > LED Underground Light > Set of 20 x 30mm Recessed LED Stair Lighting Fixtures / 12Volt Mini LED Stair Lighting Fixtures

Set of 20 x 30mm Recessed LED Stair Lighting Fixtures / 12Volt Mini LED Stair Lighting Fixtures

Set of 20 x 30mm Recessed LED Stair Lighting Fixtures / 12Volt Mini LED Stair Lighting Fixtures thumbnail-1
Set of 20 x 30mm Recessed LED Stair Lighting Fixtures / 12Volt Mini LED Stair Lighting Fixtures thumbnail-2
Set of 20 x 30mm Recessed LED Stair Lighting Fixtures / 12Volt Mini LED Stair Lighting Fixtures photo-1
Set of 20 x 30mm Recessed LED Stair Lighting Fixtures / 12Volt Mini LED Stair Lighting Fixtures photo-2
US$ 8 - 20 MOQ: 10 Sets
Key Specifications
Get Latest Price
LED Light Source:
Epistar
Warranty(Year):
3
Input Voltage(V):
DC12V
Contact Supplier Request Quote Chat Now
Changzhou Fusion Photoelectrics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar
Warranty(Year) 3
Input Voltage(V) DC12V
Lamp Power(W) 4.6
Lamp Luminous Flux(lm) 340
Lamp Luminous Efficiency(lm/w) 100
Color Temperature(CCT) Other, Blue
Working Temperature(℃) -25, 45
Working Lifetime(Hour) 50000
Lamp Body Material Stainless Steel
IP Rating IP65
Certification CE, EMC, LVD
Place of Origin Jiangsu, China
Brand Name FUSION
Model Number FX-D30-20X-B

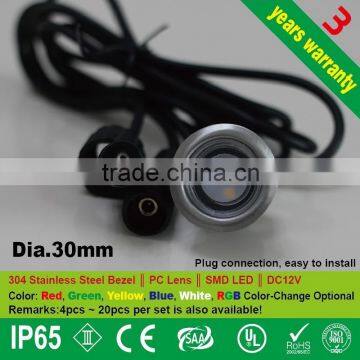

Product Description

Set of 20 x 30mm Recessed LED Stair lighting fixtures / 12Volt Mini LED Stair lighting fixtures Parameters:

Model
FX-D30-20X-B
Product Type Low Voltage Product

Transformer input

100-240Vac.50-60Hz

LED Stair Lighting Fixtures Light input

12Vdc

Power consumption

0.2W / pcs

LED color

Cool White ( red/green/yellow/blue/white optional )

LED sources

SMD3528

Luminous Flux25Lm ( single deck light )

Environment temperature

-25°C~45°C

Bezel

304# Stainless steel

LED Stair Lighting Fixtures dimension

D30mm*25mm ( diameter * depth )

Maximum load-bearing

100KGS/ 1000N

Certificated

CE & RoHS

IP rating

IP65

Warranty3 years
Remarks:6pcs or 8pcs or 10pcs or 20pcs per set is also available!



Set of 20 x 30mm Recessed LED Stair lighting fixtures / 12Volt Mini LED Stair lighting fixtures Feature:
1. This LED Stair Lighting Fixtures comes complete with transformer and cables.
2. With BS/ GS/ UL/ SAA etc outdoor or indoor use transformer.
3. The LED Stair Lighting Fixtures IP rating can be achieved IP65.
4. 2 years warranty, CE&ROHS certificates.

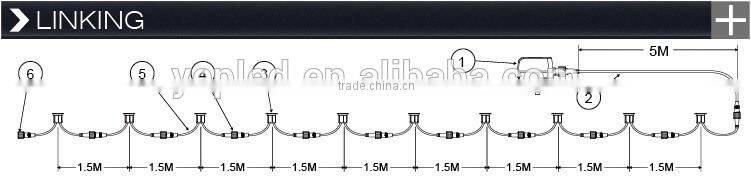

Set of 20 x 30mm Recessed LED Stair lighting fixtures / 12Volt Mini LED Stair lighting fixtures Dimension and installation

Set of 20 x 30mm Recessed LED Stair lighting fixtures / 12Volt Mini LED Stair lighting fixtures

Set of 20 x 30mm Recessed LED Stair lighting fixtures / 12Volt Mini LED Stair lighting fixtures

1.  Cable

2.  Power supply

3. LED Stair Lighting Fixtures

4. Waterproof plug

5. Cable

5. End waterproof plug

Set of 20 x 30mm Recessed LED Stair lighting fixtures / 12Volt Mini LED Stair lighting fixtures



Set of 20 x 30mm Recessed LED Stair lighting fixtures / 12Volt Mini LED Stair lighting fixtures
