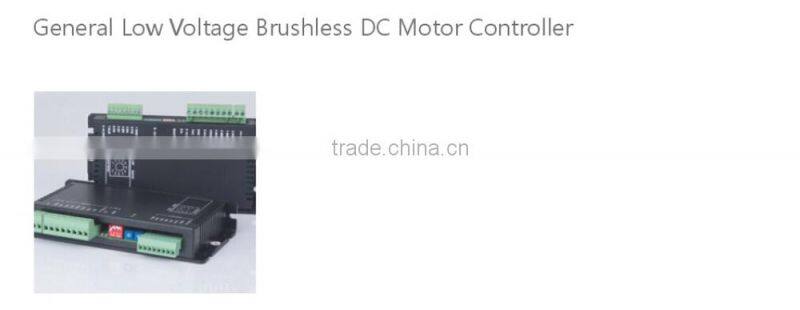

General Low Voltage brushless dc controller
| Electrical data | 24V/5A | 24V/15A | 36V/5A | 36V/15A |
| Operating voltage | 20~24 V/DC | 20~24 V/DC | 30~36V/DC | 30~36V/DC |
| Rated voltage | 24V/DC | 24V/DC | 36V/DC | 36V/DC |
| Peak current | 5A | 15A | 5A | 15A |
| Rated continuous current | 3A | 8A | 3A | 8A |
| Steady precision of speed adjust | ±2% | ±2% | ±2% | ±2% |
| Hall sensor | 120°,3phade,+6.25V | 120°,3phade,+6.25V | 120°,3phade,+6.25V | 120°,3phade,+6.25V |
| Working temperature range | _20~50℃ | _20~50℃ | _20~50℃ | _20~50℃ |
| Operating temperature range | _20~50℃ | _20~50℃ | _20~50℃ | _20~50℃ |
| Storage temperature range | _40~85℃ | _40~85℃ | _40~85℃ | _40~85℃ |
| Low voltage protect | 17V/DC | 17V/DC | 27V/DC | 27V/DC |
| High voltage protect | 34V/DC | 34V/DC | 40V/DC | 40V/DC |
| Switch frequency | 18KHz | 18KHz | 18KHz | 18KHz |
| Dimension(L*W*H) | 162*83*29mm | 162*83*29mm | 162*83*29mm | 162*83*29mm |
| Weight | 300g | 300g | 300g | 300g |
OUR MOTOR FEATURES
* Precise long life motors
* High efficiency and high torque in a small diameter
* Sizes ranges from 16mm to 35mm diameter
* outpur power is from 1.0 to 90 watts
* coreless rotor means no cogging or preferred rotor position,no iron losses
* Low starting voltage,low rotor intertia,low starting voltage
* Custom systems available from design to production
* High precision gearboxes available in all sizes
* Controller available foe all brushless motor series
APPLICATIONS
* Medical equipment-- Dental tools,tooth washing,tooth drilling
* Instrumentation-- Laser leveling devices,precision balances and gas analyzing device
* security equipment-- Air sampling, camera platforms and electronic lock
* Machinery & Equipment-- Robot,electric tools,miniature pumps,tattoo machine,grinding machine,golf cart
OUR COMPANY INFORMATION
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and Controller in China, which is established in 1996. Motor division is focusing on coreless motor, general BLDC motor RC brushless motor and brushless dc motor controller.Topband was listed in Shenzhen stock change on July 2007, became the first listed company in intellectual control in China, the stock code 002139.
